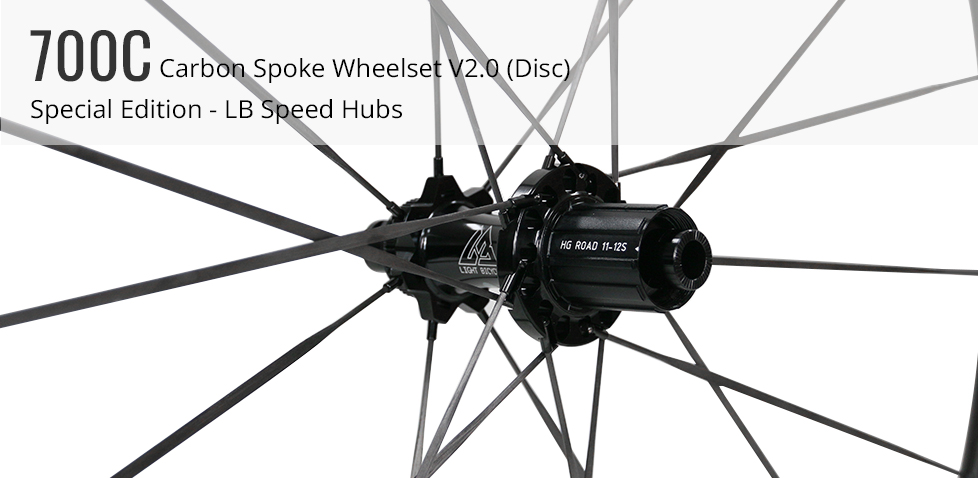

Light-Bicycle-speedhub-carbon-spoke-wheelset-road-disc-brake

Light-bicycle-carbon-spoked-road-wheelset-se

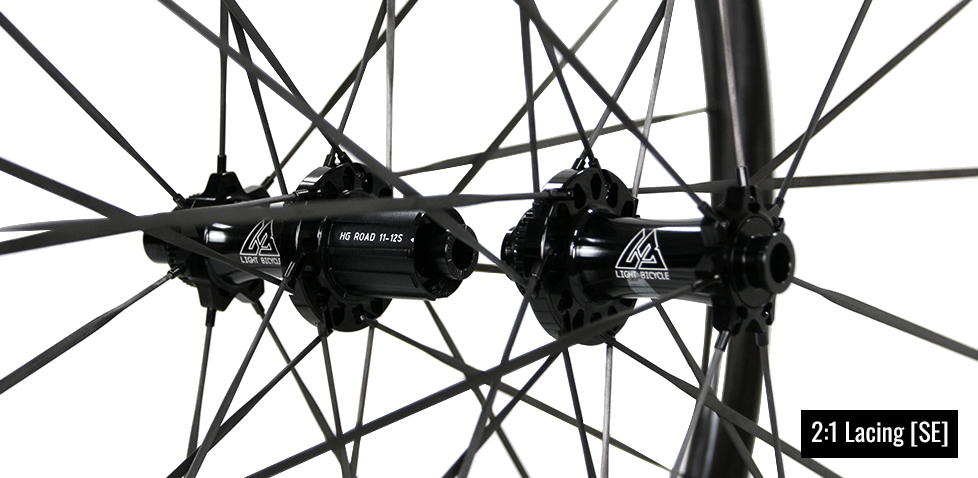

light-bicycle-2-to-1-lacing-carbon-spoke-wheelset

Light-bicycle-carbon-spokes-for-road-bike-wheels

Build Your Carbon Spoke Wheelset

Choose the spoke type based on your needs.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

The MTB wheelsets are still in transit to this warehouse. We’ll update this page when they’re available. Learn more about our European Warehouse.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA / EU shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to talk about the special requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Spoke This is a required option.

Type	Spoke Head	Hub Compatibility	Nipple Compatibility	Shape	Weight
SE-Bladed	Straightpull	Light Bicycle Speed-Hub (TPI ceramic)	LB design	Aero bladed	2.8g (straightpull)

SE-Bladed

Straightpull

Light Bicycle Speed-Hub (TPI ceramic)

LB design

Aero bladed

2.8g (straightpull)

Flyweight Carbon Spoke (Special Edition)

Rim Model This is a required option.

Model	Width	Depth	Size	Use	Profile	Weight	Tire	Series
AR25 disc	24/29.2mm	25mm	700C	Gravel	Asymmetric -2.1	250g	28-50c	Falcon Pro
AR465 disc	21/28mm	46.5mm	700C	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	460g / 410g	23-43c	Falcon Pro
AR565 disc	21/28mm	56.5mm	700c	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	495g / 440g	23c-43c	Falcon Pro
AR45 disc	21/28mm	45mm	700C	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	460g / 390g	23c-43c	Falcon Pro
AR55 disc	21/28mm	55mm	700C	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	460g / 420g	23c-43c	Falcon Pro
AR46 disc	21/28mm	46mm	700C	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	435g	23c-43c	Falcon
AR56-30 disc	23/30mm	56mm	700C	Road/CX/Gravel	Road/ CX/ Gravel	Symmetric	460g	23c-50c	Falcon

AR25 disc	24/29.2mm	25mm	700c	Gravel	Asymmetric -2.1	250g	28-50c	Falcon Pro
AR465 disc	21/28mm	46.5mm	700c	Road/CX/Gravel	Symmetric	460g / 410g	23-43c	Falcon Pro
AR565 disc	21/28mm	56.5mm	700c	Road/CX/Grave	Symmetric	495g / 440g	23c-43c	Falcon Pro
AR45 disc	21/28mm	45mm	700c	Road/CX/Grave	Symmetric	460g / 390g	23c-43c	Falcon Pro
AR55 disc	21/28mm	55mm	700c	Road/CX/Grave	Symmetric	480g / 420g	23c-43c	Falcon Pro
AR46 disc	21/28mm	46mm	700c	Road/CX/Grave	Symmetric	435g	23c-43c	Falcon
AR56-30 disc	23/30mm	56mm	700c	Road/CX/Grave	Symmetric	460g	23C~50C	Falcon

AR25 disc

AR465 disc

AR565 disc

AR46 disc

AR56-30 disc

Turbo 65 disc

Turbo 50 disc

Turbo 40 disc

PREVIOUS NEXT

Integrate more carbon fiber into your wheel build for greater stiffness and more speed. According to our latest lab test results, our Flyweight carbon spokes feature a significant increase in lateral stiffness compared to aero steel spokes, while keeping the vertical stiffness (hardness you feel over bumpy roads) within a tolerable range. For a high-performance wheel build, cycling safety is always a top priority. Our Flyweight carbon spokes feature a maximum tensile strength of up to 420kgf, much higher than industry safety standards.

For loyal riders looking to unlock performance upgrades within a budget, we introduce a special edition Flyweight carbon wheelset, pairing Light Bicycle Speed Hubs with exclusive Flyweight carbon spokes. The SE version enables you to enjoy an elite level of performance with aero carbon spokes, TPI ceramic bearings, and fast hub engagement. Discover more details of the latest Flyweight spoke wheelset-SE >>

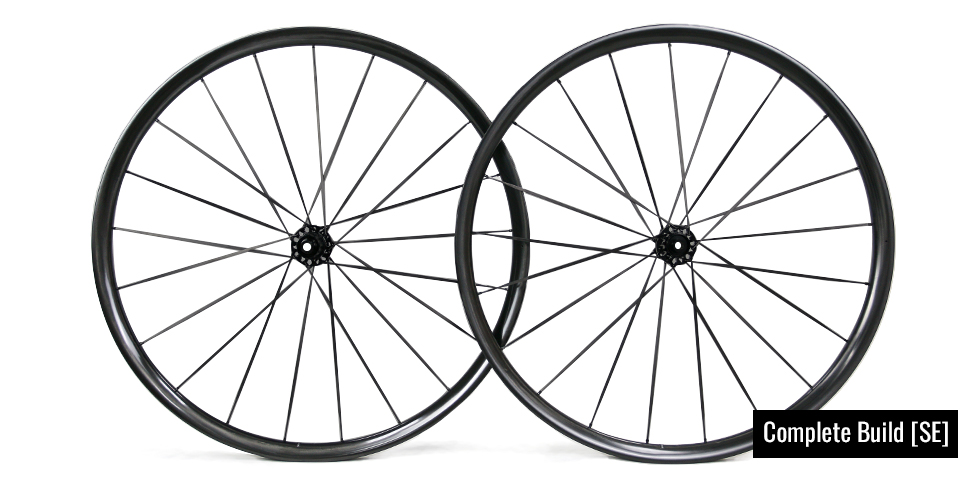

All carbon spoke wheelsets from Light Bicycle are handbuilt by our most experienced wheel builders with tension balanced and stress relieved. Riders can mount up tires and start the first ride immediately after receiving the wheels. Three spare complimentary carbon spokes come with each order for easy replacement.

Configure your new carbon-spoke wheelset with our online wheelset builder now. If you find any rim options unlisted, feel free to ask by leaving a comment below or emailing us (sales@lightbicycle.com).

Spokes

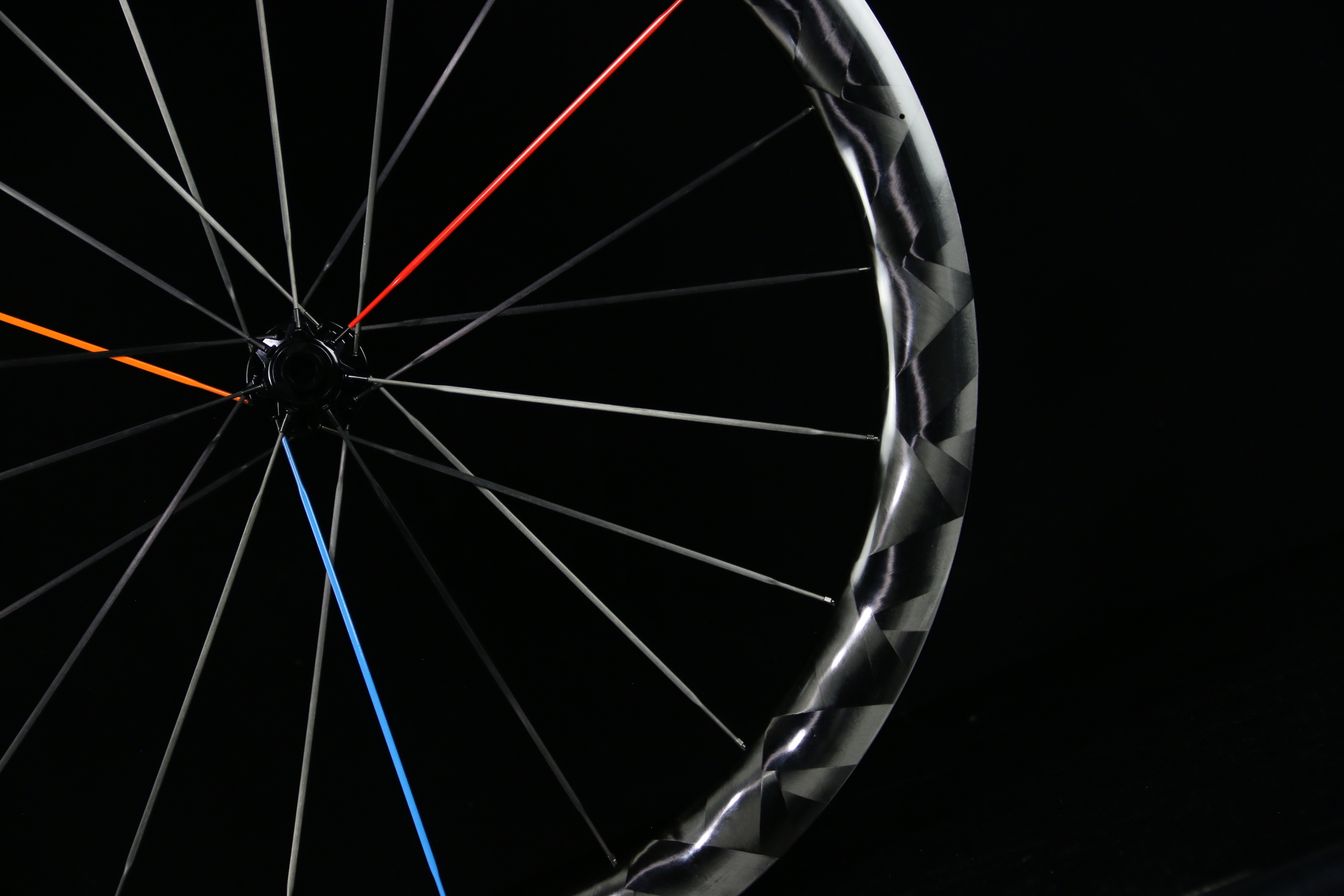

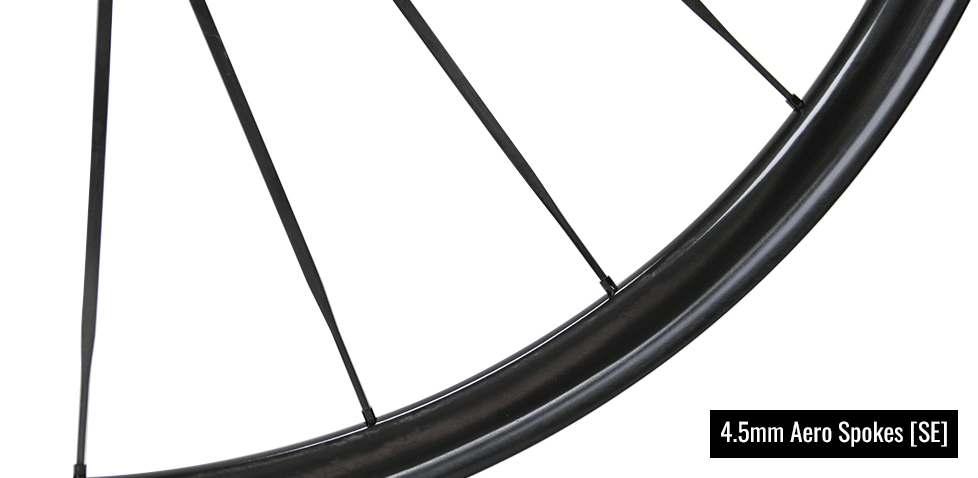

Flyweight Spokes (SE)

The special edition pairs our best budget Speed hubs with exclusive Flyweight spokes of an aero advantage.

Model: Light Bicycle Flyweight Carbon
Material: UD carbon fiber
Diameter: 3.55 - 1.2×4.5 - 3.55
Neck Type: Straightpull
Weight: 2.8g
Nipples: Light Bicycle

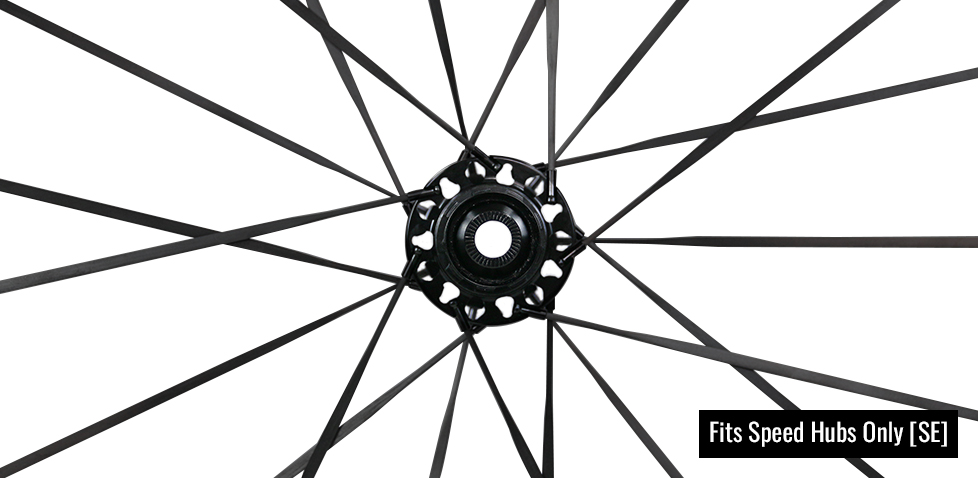

Hubs

Feel free to let us know if you want hubs or specs unlisted.

Model: Light Bicycle Speed-Hub (TPI Ceramic)
Front Axle Size: 12 / 100mm
Rear Axle Size: 12 / 142mm
Driver Body: Shimano Road 11S, Sram XDR
Hole: 21H

Rims

Let us know if you want to build with unlisted rims of our lineup.

Model: AR25 disc, AR465 disc, AR565 disc, AR45 disc, AR55 disc, AR46 disc, AR56-30 disc
Depth: 25mm, 46.5mm, 56.5mm, 45mm, 55mm, 46mm, 56mm

Overview

Integrate more carbon fiber into your wheel build for greater stiffness and more speed. According to our latest lab test results, our Flyweight carbon spokes feature a significant increase in lateral stiffness compared to aero steel spokes, while keeping the vertical stiffness (hardness you feel over bumpy roads) within a tolerable range. For a high-performance wheel build, cycling safety is always a top priority. Our Flyweight carbon spokes feature a maximum tensile strength of up to 420kgf, much higher than industry safety standards.

For loyal riders looking to unlock performance upgrades within a budget, we introduce a special edition Flyweight carbon wheelset, pairing Light Bicycle Speed Hubs with exclusive Flyweight carbon spokes. The SE version enables you to enjoy an elite level of performance with aero carbon spokes, TPI ceramic bearings, and fast hub engagement. Discover more details of the latest Flyweight spoke wheelset-SE >>

All carbon spoke wheelsets from Light Bicycle are handbuilt by our most experienced wheel builders with tension balanced and stress relieved. Riders can mount up tires and start the first ride immediately after receiving the wheels. Three spare complimentary carbon spokes come with each order for easy replacement.

Configure your new carbon-spoke wheelset with our online wheelset builder now. If you find any rim options unlisted, feel free to ask by leaving a comment below or emailing us (sales@lightbicycle.com).
Specs
Spokes

Flyweight Spokes (SE)

The special edition pairs our best budget Speed hubs with exclusive Flyweight spokes of an aero advantage.

Model: Light Bicycle Flyweight Carbon

Material: UD carbon fiber

Diameter: 3.55 - 1.2×4.5 - 3.55

Neck Type: Straightpull

Weight: 2.8g

Nipples: Light Bicycle

Hubs

Feel free to let us know if you want hubs or specs unlisted.

Model: Light Bicycle Speed-Hub (TPI Ceramic)

Front Axle Size: 12 / 100mm

Rear Axle Size: 12 / 142mm

Driver Body: Shimano Road 11S, Sram XDR

Hole: 21H

Rims

Let us know if you want to build with unlisted rims of our lineup.

Model: AR25 disc, AR465 disc, AR565 disc, AR45 disc, AR55 disc, AR46 disc, AR56-30 disc

Depth: 25mm, 46.5mm, 56.5mm, 45mm, 55mm, 46mm, 56mm
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Light Bicycle Speed Hubs: From the date of purchase, 5-year pro warranty.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims/hubs with 10% /25% discount for the Non-Pro series /Pro rim series and 15% for the hubs.

Learn More >>

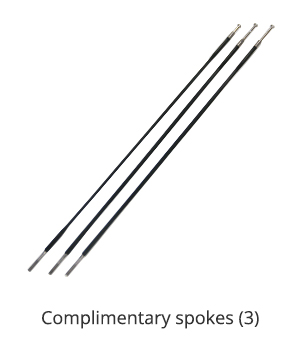

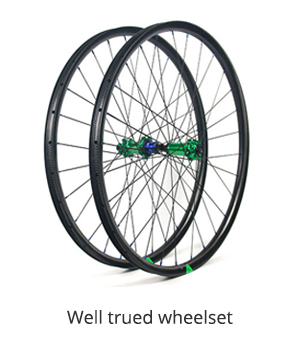

In The Box

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Download user guides >>

FAQs On Carbon Spoke Wheels

Are carbon spokes better than steel?

The carbon spokes are designed for riders who prioritize speed improvement over comfort and leisure. With a higher stiffness-to-weight ratio compared to steel counterparts, the carbon-spoke wheelset maximizes wheel stiffness while keeping things lightweight. This means that a carbon-spoked wheel often feels more responsive and a bit harder than a steel-spoked wheel build.
What rims are compatible with the Flyweight spokes?

The Flyweight spokes are compatible with all road and gravel carbon rims of our lineup. On our online wheelset builder, we only list some of the most asked rim models. Feel free to let us know if you want to special order something different.

Rim options available online: AR25 disc, AR465 disc, AR565 disc, AR46 disc, and AR56-30 disc.
What’s new about the 2023 version?

As for the Flyweight wheelset SE, enjoy an elite level of performance with aero carbon spokes, ceramic bearings, and higher engagement (from 24-tooth to 36-tooth). We’ve also integrated a 5-year warranty and crash replacement coverage into the price of the hub, increasing the value and the post-order support you can depend on. The carbon spokes are aero-optimized with a 4.5mm wide elliptic aero profile, more competitive aerodynamically with the comparable bladed steel spokes. Discover more >>

Gallery

AR565-disc-all-road-carbon-spoke-wheelset-1337g

Light Bicycle : Rims: AR565 Disc X-Flow Flyweight Paintless UD 21/21H With Drain Holes With Access Holes Hubs: Light Bicycle Speed Hub 12/100mm 12/142mm SP Centerlock 24T Sram XDR Spokes: Light Bicycle Flyweight Carbon SP Spokes (Race-Edition) Nipples: Light Bicycle aluminum black Weight: 1337g This build is not available online yet. Leave a comment below if you want to special order this set.

AR25-disc-gravel-carbon-spoke-wheelset-994g-ultralight

Light Bicycle : Rims: AR25 Disc Hybrid Hook UD Paintless 21H External Hole With Drain Holes With Access Holes Hubs: Light Bicycle Speed-Hub 12/100mm 12/142mm Straightpull Centerlock 21/21H 24T Shimano Road 11S Spokes: Light Bicycle Flyweight Carbon (race-edition) Nipples: LB design Aluminium Black Weight: 994g

Light-Bicycle-speed-hub-ceramic-bearing-road-bike-hubs

Light Bicycle : Rims: Light Bicycle AR465 disc flyweight hooked paintless UD 21H with drain holes with access holes Hubs: Light Bicycle Speed Hub 12/100mm 12/142mm straightpull centerlock 21H Shimano Road 11s Spokes: Light Bicycle Flyweight carbon spokes 2:1 lacing Nipples: Light Bicycle aluminum black

Light Bicycle : Rim: AR465 Disc Flyweight Braided UD Paintless UD 21H With Access Holes With Drain Holes Hub: Light Bicycle Speed Hubs 12/142mm Straightpull Centerlock Shimano Road 11s Spokes: Light Bicycle Flyweight Carbon Spokes (custom paint: red - Pantone 185C, orange - 165C, blue - 2184c) 2:1 lacing Nipples: Light Bicycle aluminum (specific for carbon spokes)

Light Bicycle : Rims: AR465 Disc Flyweight 21H/24H Braided UD With Drain Holes Hubs: Light Bicycle Speed Hub Straightpull 12/100mm 12/142mm Shimano Road 11s Spokes: Light Bicycle Flyweight Carbon Spokes (Race-Edition) 2:1 Lacing Nipples: LB Design aluminum (for carbon spokes) Front - 615g, Rear - 733g

COMMENTS

James 2024/04/27

Is it possible to make the AR56-30 wheels in a flyweight version? I weigh 73 kg.

LightBicycle 2024/04/30

Hi James, Thanks for your inquiry! Sorry for the late reply. It is okay to manufacture AR56 rims road disc 700C around 30g lighter for you. Does it work for you? What tire width and tire pressure will you ride? Do you ride aggressively? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Sun 2023/10/08

Hi, I would like an ultra-light disc brake climbing wheelset. I'm 80kg, so no flyweight option, please. It would be AR25 Rim, Carbon Spoke with either Extralite SPD3 or CarbonTi. Can I get a quote with full specs for these builds?

LightBicycle 2023/10/09

Hi Sun, Thanks for reaching out! We have sent the quote through an email, please check it. Best regards, Light Bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

JEONG 2023/05/04

I want to use Flyweight Spokes (SE) But I want a rim-height wheel of 40mm to 50mm for a wheel set of less than 1400g Is this possible??

LightBicycle 2023/05/04

Hi Jeong, Thanks for your inquiry! May i know your weight? What is your tire width？ Do you like 700C road disc 40mm~50mm wheelset? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Christopher 2023/04/17

Hi I would like an ultra light climbing wheelset but I am 85 Kilos so no flyweight options. Berd Spoked no Depth Rim with Extralite hubs can you build that? Regards, Christopher Tan

LightBicycle 2023/04/18

Hi Christopher, Hi Christopher, Thanks for reaching out! Given the fact that you are looking for a climbing wheelset. Berd spokes won't be the best fit here. It would be too compliant. The stiffness would be a key to consider when it comes to climbing. So carbon spokes make more sense. The new flyweight carbon spokes are actually better in tensile strength compared to steel spokes. It provides better stiffness. And the butted version is lighter than Berd spokes in some cases like 270mm. It's 2.3g each and Berd spokes are 2.5g on average. Build with Extralite hubs, they would be super light. Have you figured out the rims you like to build with yet? 35mm would be a sweet spot for both climbing and tarmac. Or are you looking for our AR25 super lightweight wheelset? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
