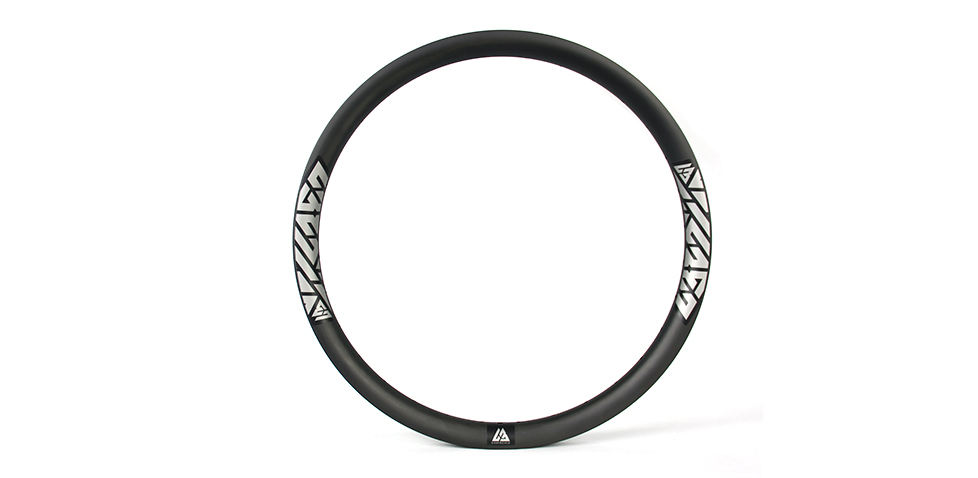

38mm wide 24 inch carbon wheels for DH and ENDURO

Build Your Recon RIM AM431/EN431

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Version This is a required option.

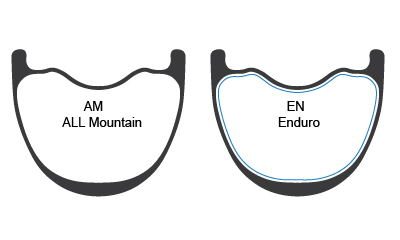

All Mountain (AM) - This version is mid-weight and suitable for all mountain and trail riding.

Enduro (EN) - This version comes out with additional reinforcement (Heavy Duty) and is the right fit for more aggressive riders pedaling on enduro.

AM431

EN431 USD +5

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

16H

18H

20H

24H

28H

32H

36H

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

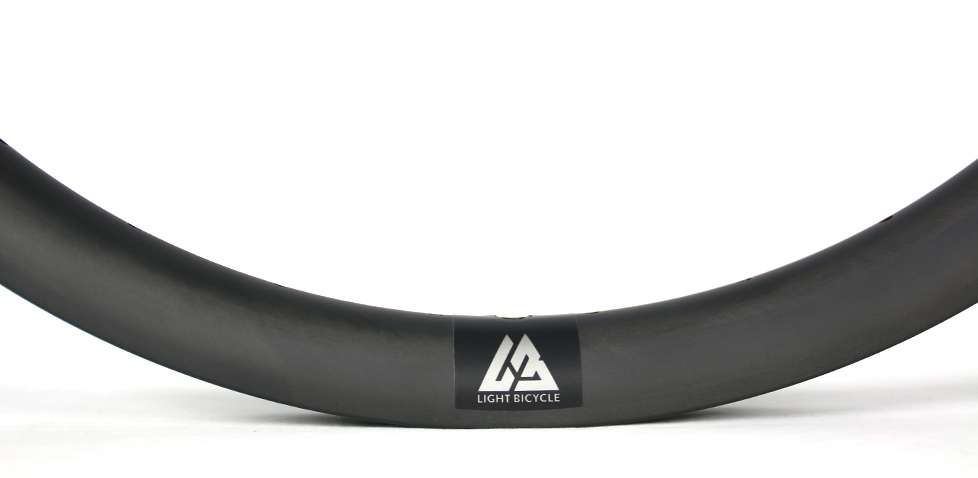

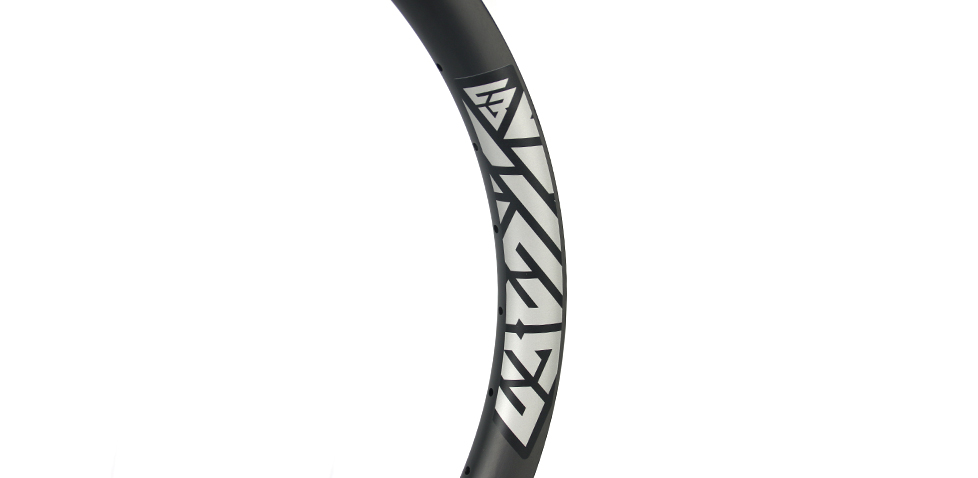

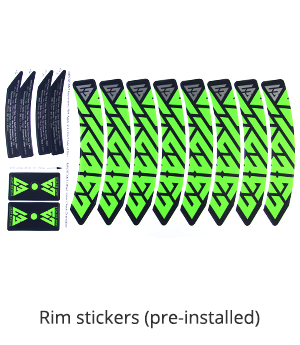

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Blue

Green

Magenta

Orange

Red

Yellow

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 400.00g+/-15

Subtotal: USD 155+

PREVIOUS NEXT

RIM SPECS

Model AM431/EN431
Material Toray T700 & T800 Premium Carbon Fiber
Size 24" (ETRTO 507mm)
Series RECON
Intended Use Enduro/DH
Bead Type Hookless
Tubeless Capable Yes

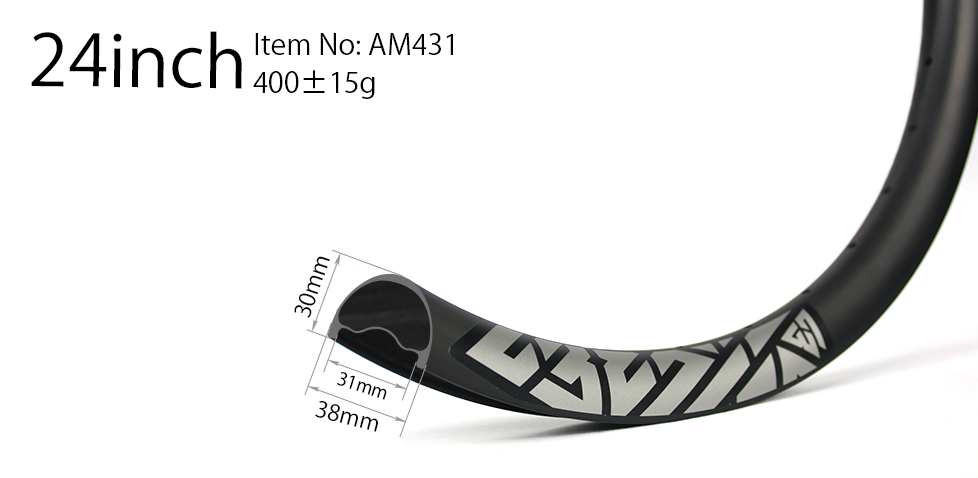

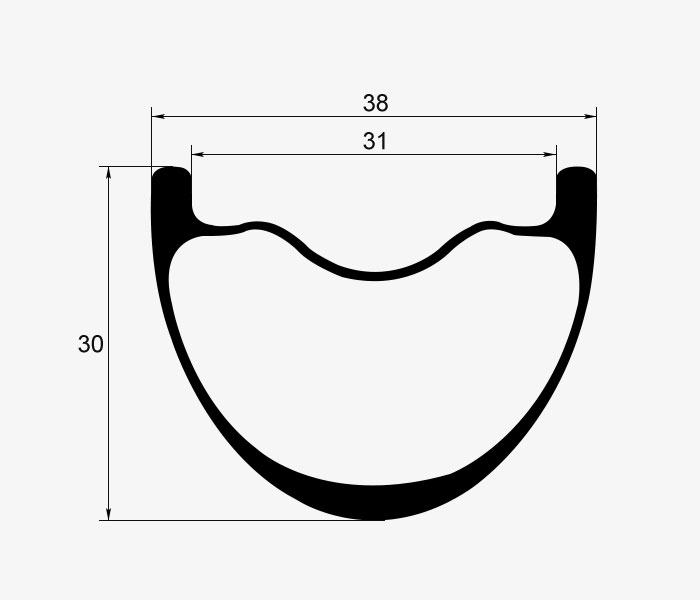

Inner/Outer Width 31mm/38mm
Depth 30mm
ERD 465mm (not including nipple head dimension)
Rim Weight AM 400+/-15g, EN 450+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 120kg/ 265lbs
Spoke Hole Angle ±5°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.75bar
Recommended Tire Width 2.25" ~ 2.8"

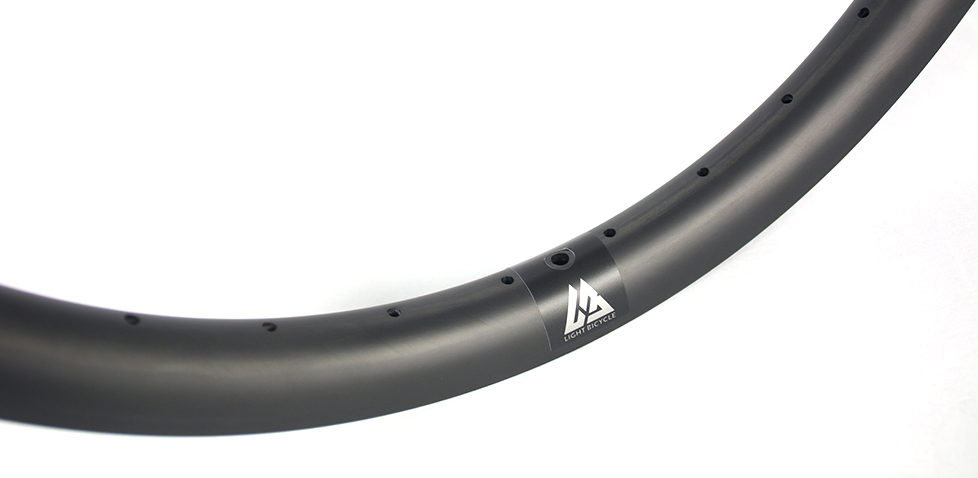

With a wide profile, modern shape, AM431 is versatile to handle everything from all-day trail rides to sending it at the local bike park. The EN version has an extra wrap of 3k carbon fiber around the nipple bed, reinforced sidewalls to support G-Out forces, and increased stability.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Model: AM431/EN431
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 24" (ETRTO 507mm)
Series: RECON
Intended Use: Enduro/DH
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 31mm/38mm
Depth: 30mm
ERD: 465mm (not including nipple head dimension)
Rim Weight: AM 400+/-15g, EN 450+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 120kg/ 265lbs
Spoke Hole Angle: ±5°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 40psi/ 2.75bar
Recommended Tire Width: 2.25" ~ 2.8"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

With a wide profile, modern shape, AM431 is versatile to handle everything from all-day trail rides to sending it at the local bike park. The EN version has an extra wrap of 3k carbon fiber around the nipple bed, reinforced sidewalls to support G-Out forces, and increased stability.
Specs
Rims

Model: AM431/EN431

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 24" (ETRTO 507mm)

Series: RECON

Intended Use: Enduro/DH

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 31mm/38mm

Depth: 30mm

ERD: 465mm (not including nipple head dimension)

Rim Weight: AM 400+/-15g, EN 450+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 120kg/ 265lbs

Spoke Hole Angle: ±5°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 40psi/ 2.75bar

Recommended Tire Width: 2.25" ~ 2.8"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

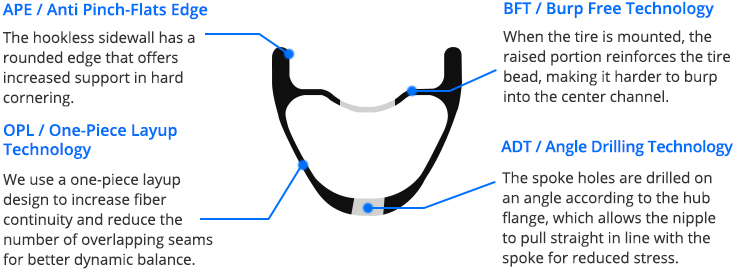

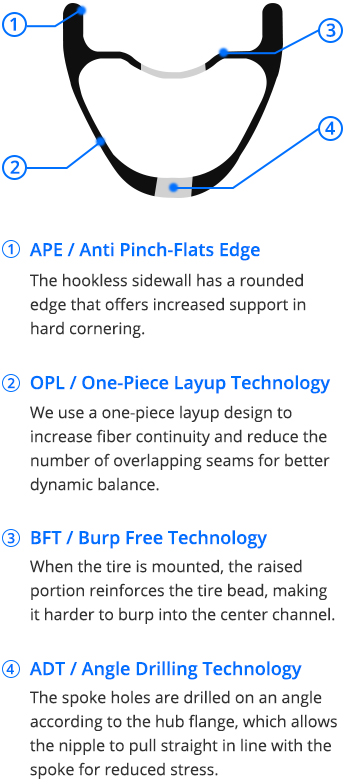

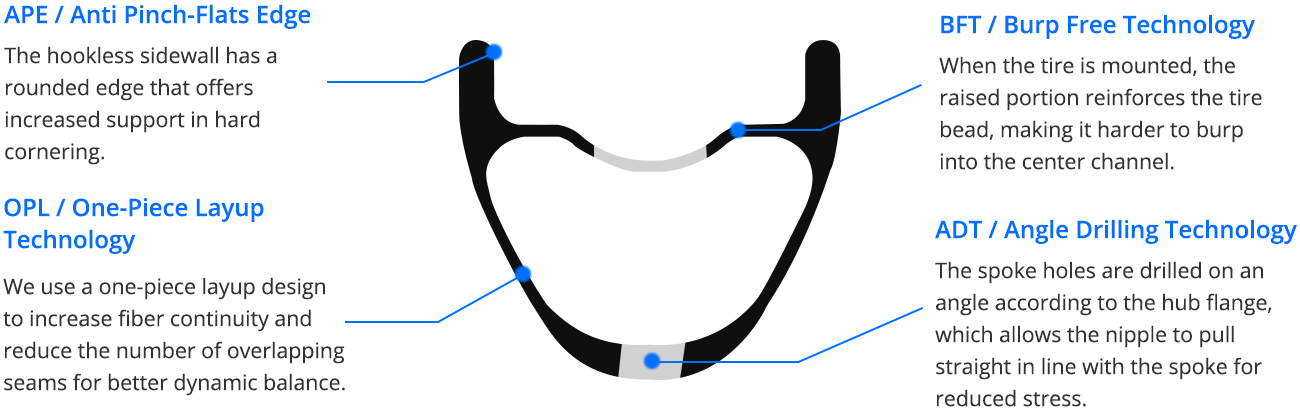

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

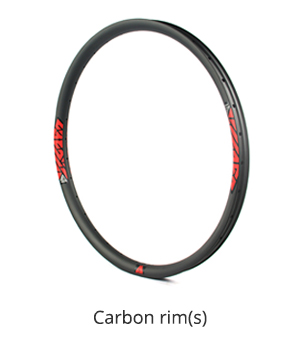

In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

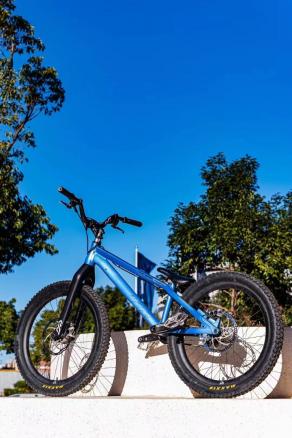

24inch-youth-racing-mountain-bike-light-bicycle-carbon-wheels-am431

Eric : My 5 year old loves his the LB 24” custom tubeless wheel set on his 24” full carbon racing MTB. The wheel set is much better than expected. Thanks Light Bicycle!

United States

Yin : A few more pictures from a recent ride (AM431)...

China

Yin : AM431

China

Yin : AM431 rims

China

Light-Bicycle-AM431-carbon-fiber-rim-painting

Light Bicycle : AM431 EN431 Glossy Hexa-Comb 32H With Access Holes External Hole With Drain Holes

Light Bicycle : Rims: AM431/EN431 12K Glossy 32/32H External Hole No Drain Holes With Access Holes

Oleg : I’ve been using LB rims on all my bikes: road, gravel, MTB, cyclocross and recently my 24” trials bike too! Best value for money rims on the market and have never failed. And with the recent customisation available you can make them uniquely yours!

UK(Britain)

View More Reviews >>

COMMENTS

Austin 2021/03/19

What are the differences between the the AM431 and EN431?

LightBicycle 2021/03/19

Hi Austin, The EN431 is the reinforced version of AM431. If you consider yourself as an aggressive rider or heavy one, EN431 would be the better option for the rear 24" wheel. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Aleksandr 2021/03/06

Hello. What is the minimum pressure that can be used with hookless rims? I ride 35-40 pounds in my discipline with a lot of lateral pressure on the tire resulting in displacement. Will I have to constantly rip the tire off the rim without the hook?

LightBicycle 2021/03/06

Hi Aleksandr, For hookless rims, it is better to ride less than 40PSI to prevent from tires blowing off. The rims will be durable enough, we just worry the tires will blow off it is at higher tire pressure. What is your tire width? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Yaroslav 2020/09/13

Hi! I see that on the feature image it says AM431 400±15g. However just below in the table it says AM 430+/-15g, EN 480+/-15g Q1: why does weight for AM differ in the feature image and the table? Q2: what's the difference between AM and EN? Thanks,

LightBicycle 2020/09/14

Hi Sir, My apologies, it seems like an error on the "SPECS "section. The correct weight should be AM 400+/-15g, EN 450+/-15g. We already recover the correct data for this 24 inch bike rim. Sorry for the confusion. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Brett 2020/08/30

Greetings! I realise in this day and age that carbon tubeless rims are the number 1 choice for mountain bikers. Standards and wheel sizing is constantly changing. That having been said, I am seeking advice for a possibly one-off request for a set of carbon tubeless-ready rims – below are the specs: • 24" diameter • disc brake (no rim braking needed) • 32 standard spoke holes • 65mm external width • anywhere from 55 – 60mm (or more) internal width (whatever is possible) • Presta valved tubeless-ready (obviously) I understand that this is an unusual sized rim request, but I am really really really tied to my Surly 1x1 11th Anniversary Edition "sort of fat" fully-rigid 4130 chromoly steel bike, which I have ridden over 10,000 miles on since I purchased brand new back in 2010. Well, it has IMMENSELY heavy steel rims which are easily almost two pounds each. They have never caused me any problems, but they are simply impossible to set up tubelessly, and there is a lot of rotating mass to deal with. I have two sets of wheels with very nice carbon rims I purchased from Nextie Bike a few years ago, with over 10,000 miles on both sets of wheels and never had ANY problems. Nextie used to offer the 24" x 2.5" carbon tubeless rims but it seems as though they do not offer them anymore. Please let me know if it would be possible to have a set (2 rims) made, and obviously am curious how much this might cost since it would most likely be a one-off request. I thank you for your time. I am eagerly looking forward to your response. Thanks Brett Kelley

LightBicycle 2020/08/31

Hi Brett, Are you looking for 24" fat bike rim? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Recon RIM AM431/EN431

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
