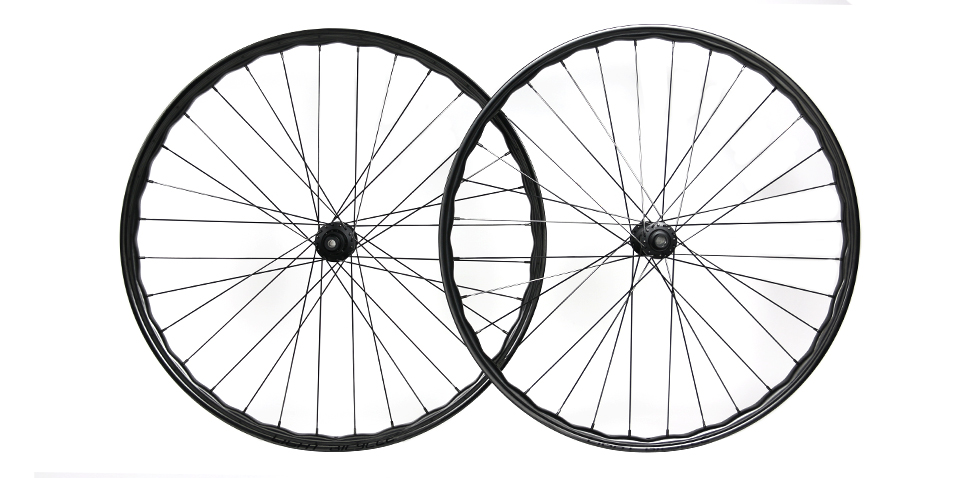

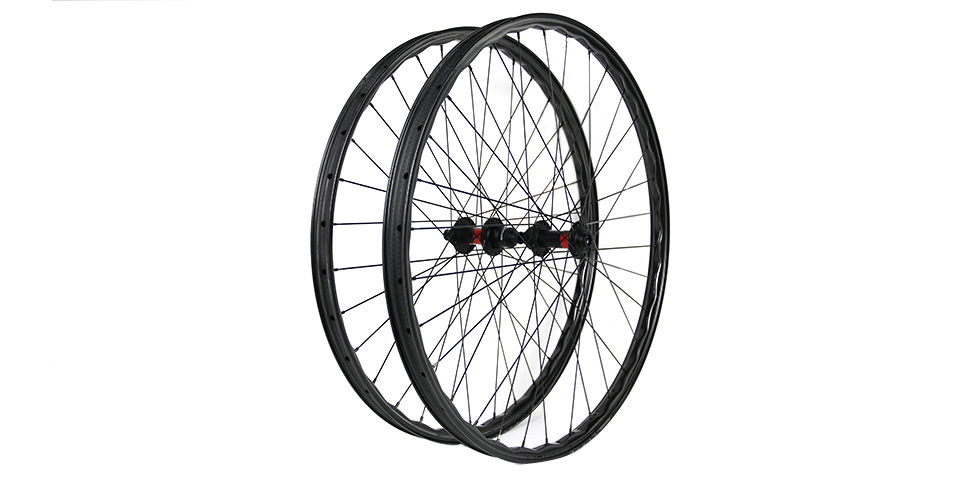

Build Your Recon Pro WHEELSET AM930S

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy rim only

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

  • Model AM930S

    Introduction >>

  • Material Toray T700 Carbon Prepregs & Carbon Nanotubes
  • Size 29"/29er (ETRTO 622mm)
  • Series RECON PRO
  • Intended Use All Mountain, XC
  • Bead Type Hookless
  • Tubeless Capable Yes

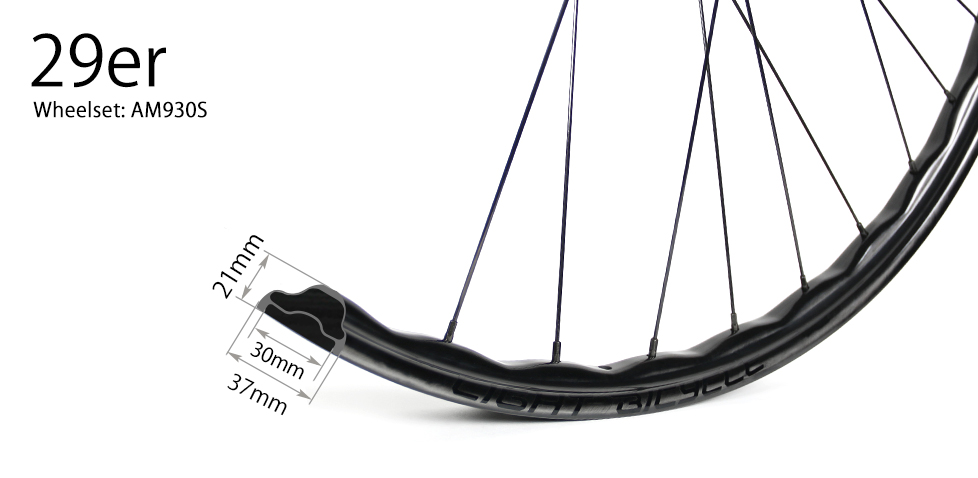

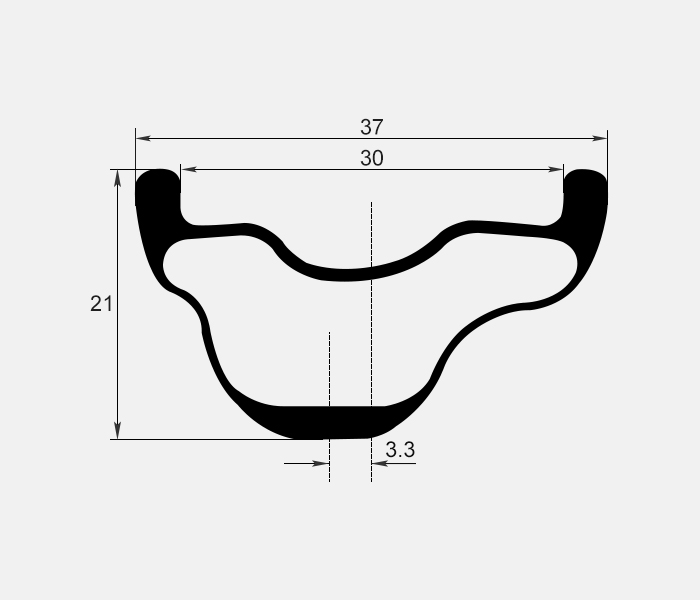

  • Inner/Outer Width 30mm/37mm
  • Depth 18.1mm~21mm
  • ERD 595.4mm (not including nipple head dimension)
  • Rim Weight Standard 400+/-15g, Flyweight 350+/-15g
  • Profile Asymmetric (3.3mm)
  • Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
  • Spoke Hole Angle ±8°
  • Spoke Tension 115~130kgf front disc side and rear drive side
  • Max Tire Pressure 30psi/ 2.09bar
  • Recommended Tire Width 2.2" ~ 2.7"

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

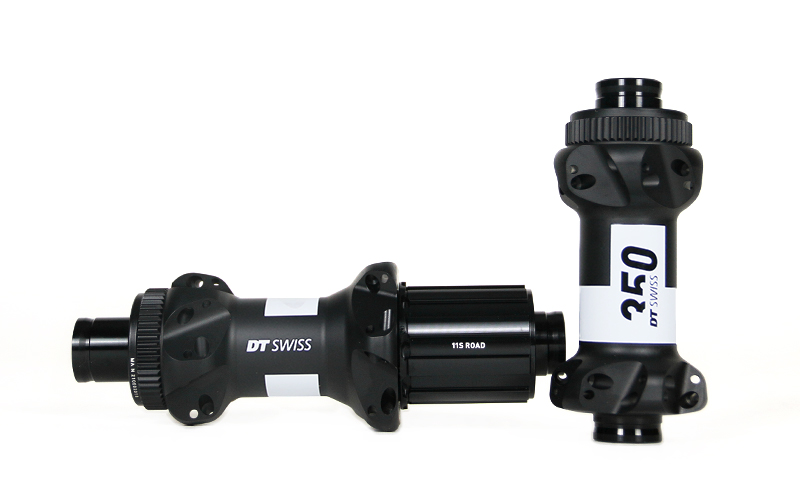

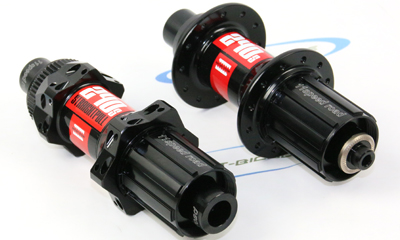

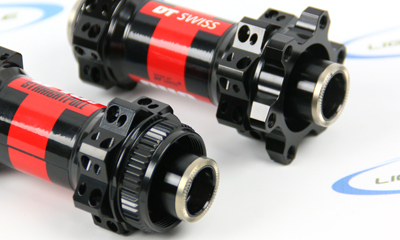

  • Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5, Onyx Vesper

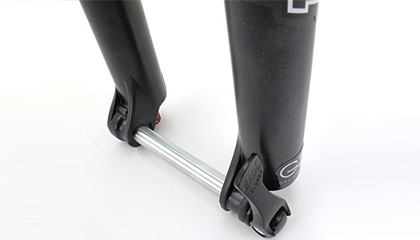

  • Front Axle Size 15 / 100mm, 15 / 110mm BOOST, 15 / 100mm Torque, 15 / 110mm RS-1, 15 / 110mm Torque, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm

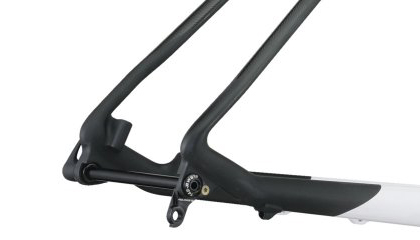

  • Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST, 12 / 150mm, QR / 135mm, Single Speed

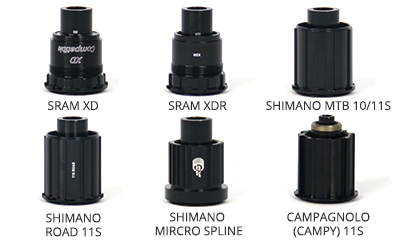

  • Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
  • Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

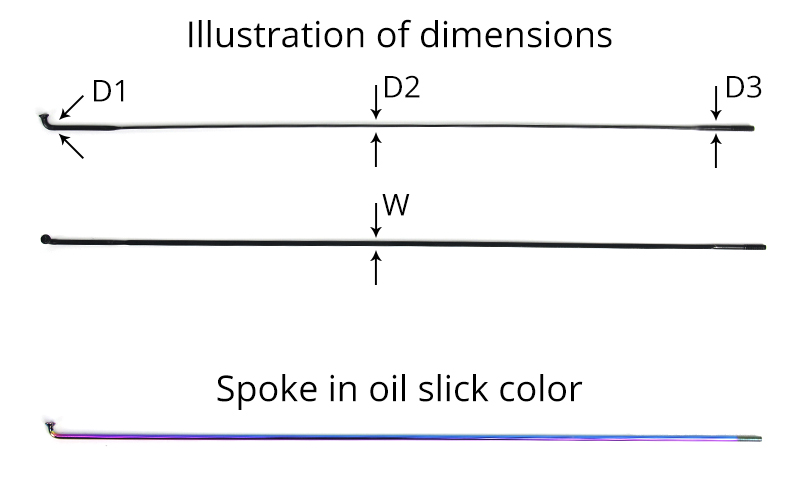

  • Spokes Sapim D-Light, Sapim CX Ray, Oil slick J-bend, Berd PolyLight in Black, Berd PolyLight in White, Sapim Race

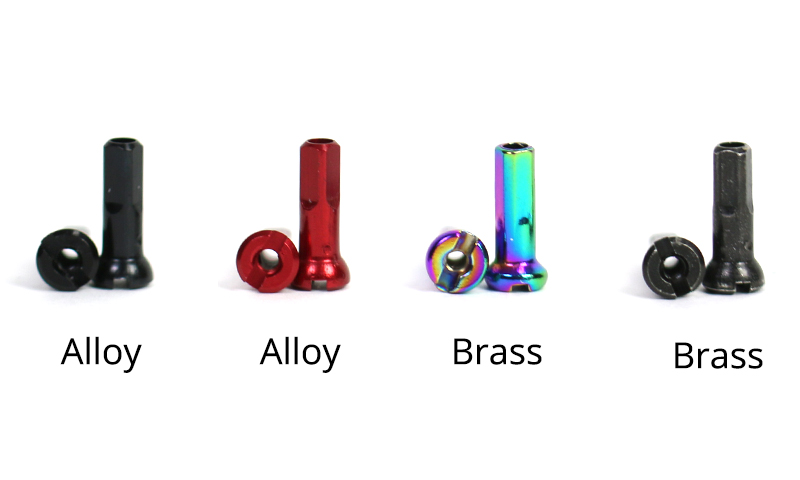

  • Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

TECH

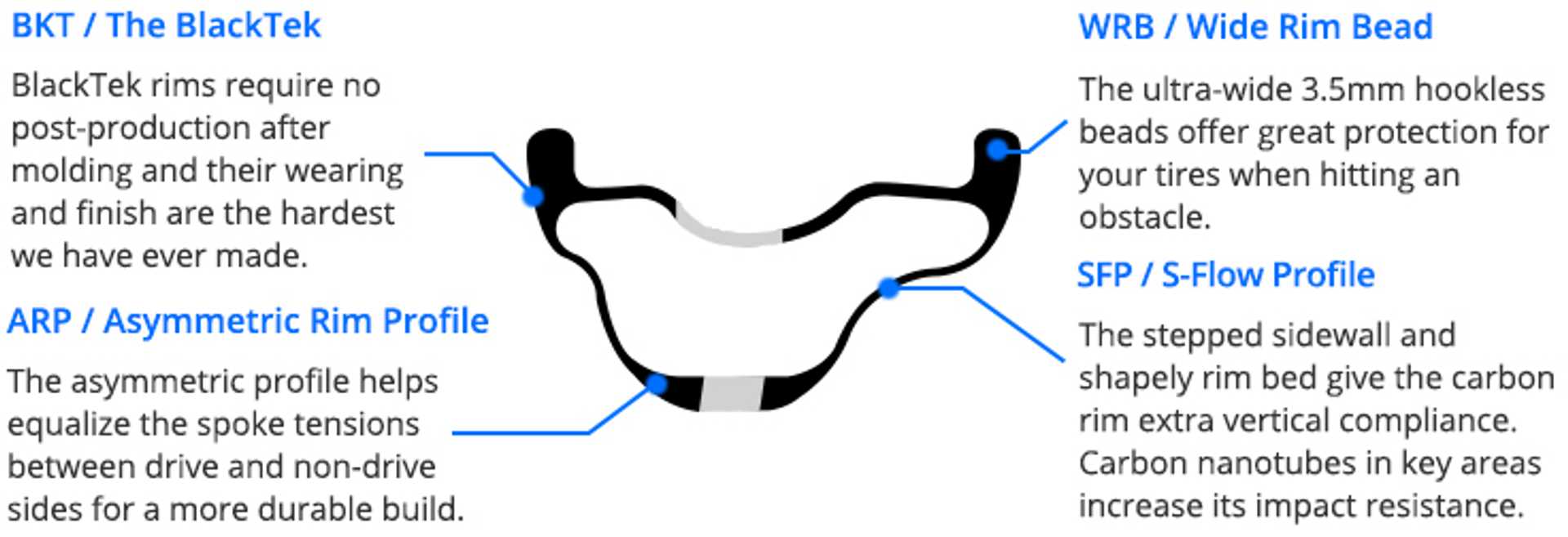

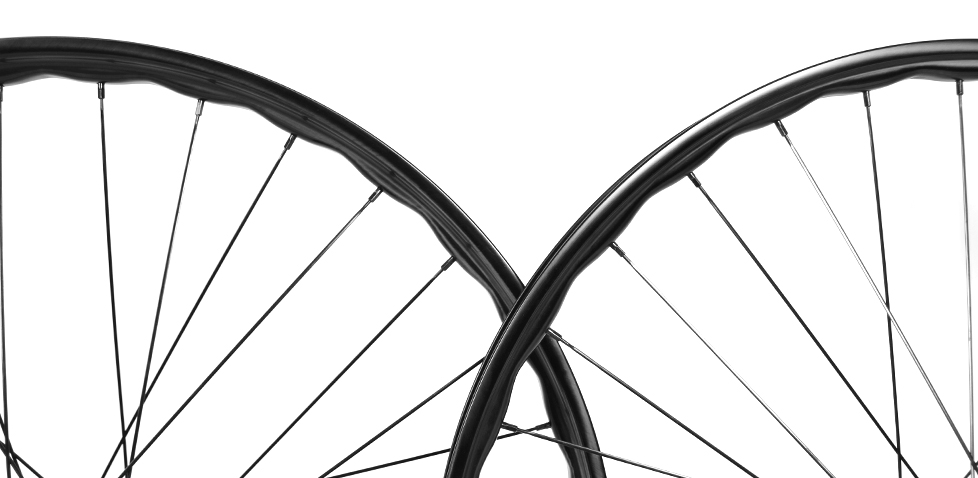

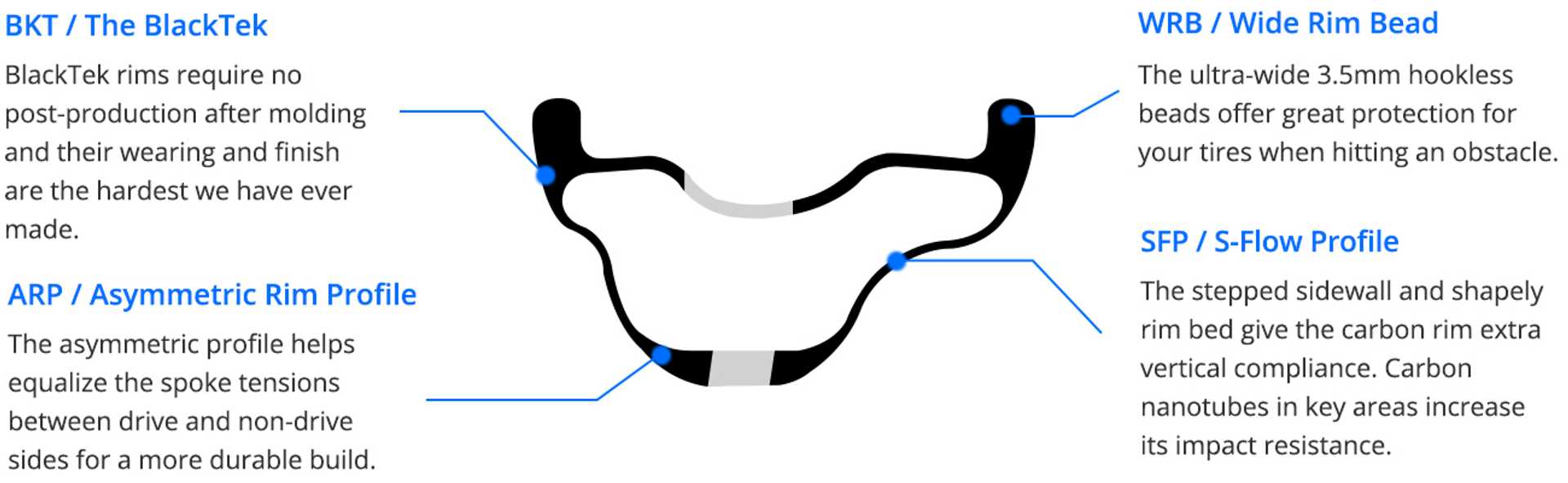

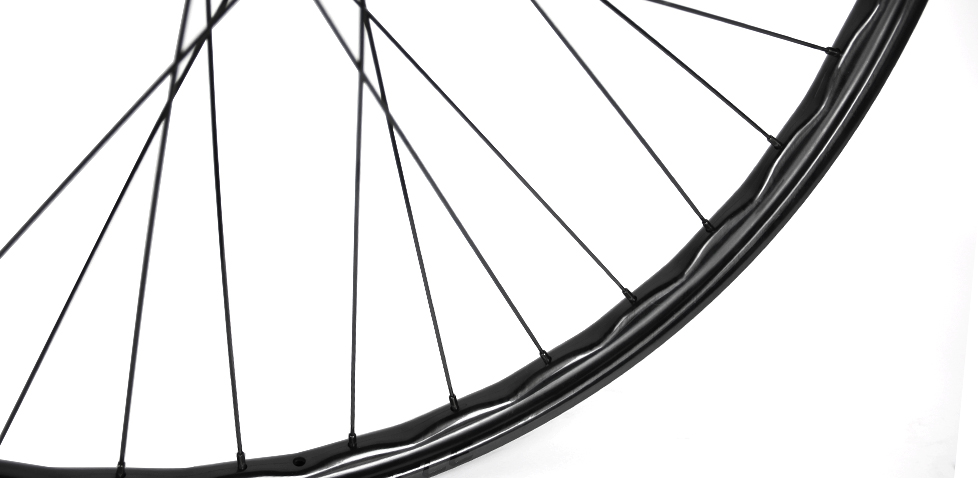

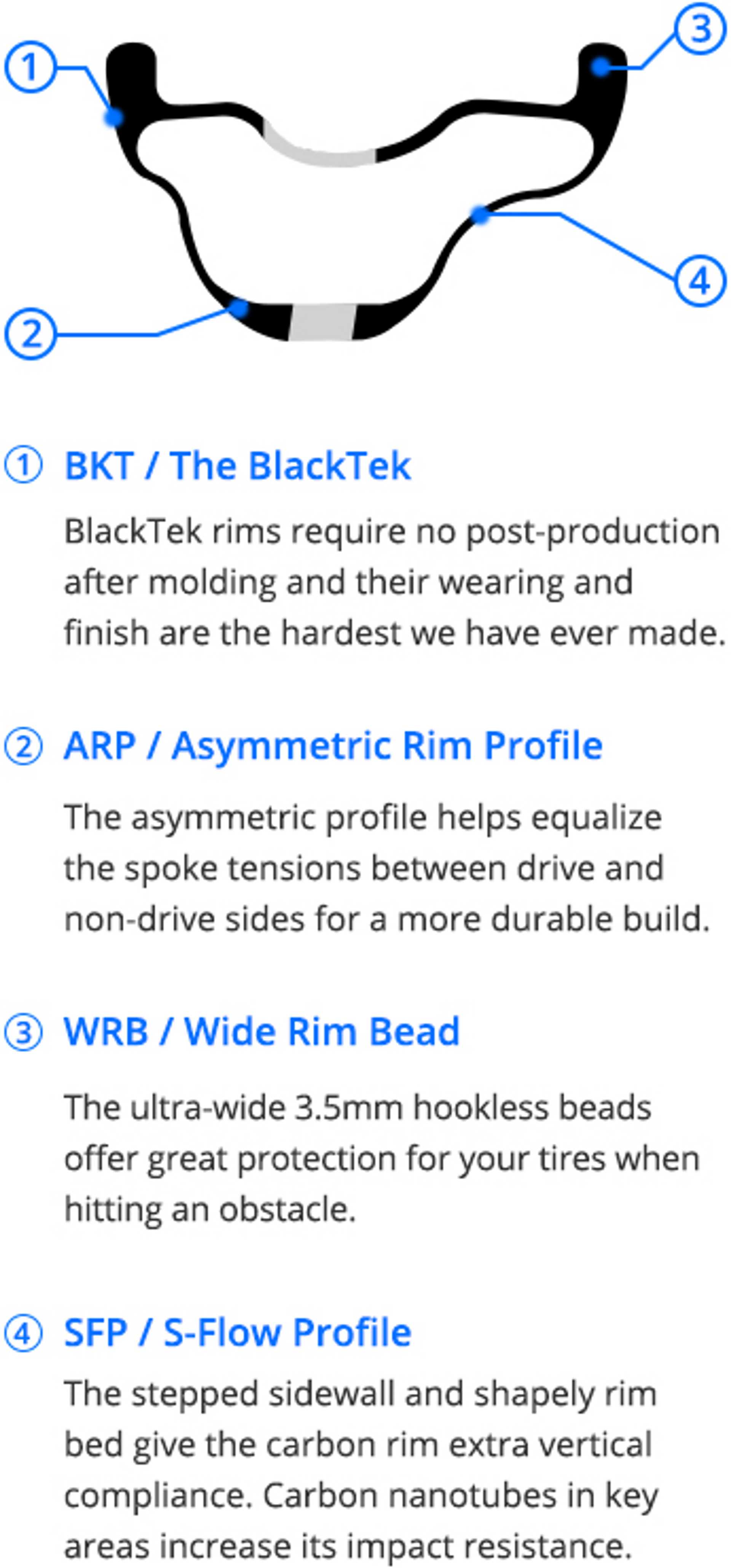

The overall depth alternates between 18.1mm to 21mm, creating a ribbed inner circumference. The unique combination of a stepped sidewall and shapely rim bed gives the carbon rim extra vertical compliance. A finely-tuned Toray T700 layup features layers of carbon nanotubes in key areas to further the vibration damping properties. Carbon nanotubes increase impact resistance by 10% without adding weight. The final result? An all-around player making light work of tough trails.

The thickened rim bead, along with the smooth edge, offers great protection for your tires when hitting an obstacle - the impact energy gets dispersed faster on the broad surface. This greatly reduces the risk of pinch flats (snakebites). The wide profile provides a stable platform with less force required to mount tires.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

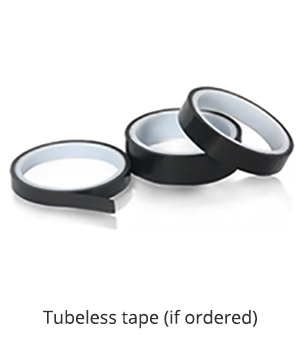

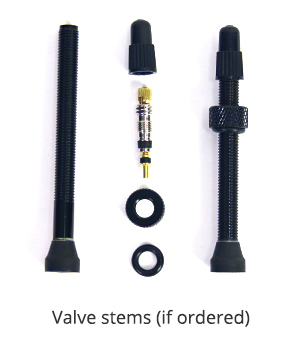

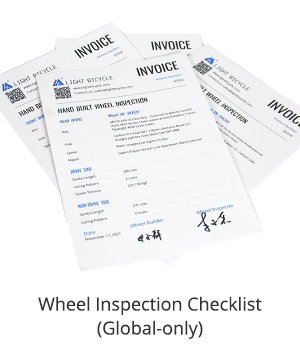

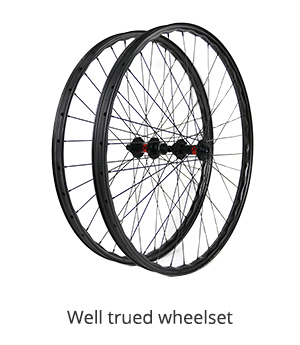

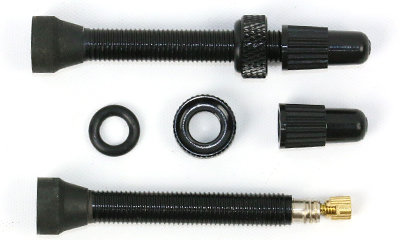

WHAT IS IN THE BOX


The overall depth alternates between 18.1mm to 21mm, creating a ribbed inner circumference. The unique combination of a stepped sidewall and shapely rim bed gives the carbon rim extra vertical compliance. A finely-tuned Toray T700 layup features layers of carbon nanotubes in key areas to further the vibration damping properties. Carbon nanotubes increase impact resistance by 10% without adding weight. The final result? An all-around player making light work of tough trails.

The thickened rim bead, along with the smooth edge, offers great protection for your tires when hitting an obstacle - the impact energy gets dispersed faster on the broad surface. This greatly reduces the risk of pinch flats (snakebites). The wide profile provides a stable platform with less force required to mount tires.

  • Overview

    The overall depth alternates between 18.1mm to 21mm, creating a ribbed inner circumference. The unique combination of a stepped sidewall and shapely rim bed gives the carbon rim extra vertical compliance. A finely-tuned Toray T700 layup features layers of carbon nanotubes in key areas to further the vibration damping properties. Carbon nanotubes increase impact resistance by 10% without adding weight. The final result? An all-around player making light work of tough trails.

    The thickened rim bead, along with the smooth edge, offers great protection for your tires when hitting an obstacle - the impact energy gets dispersed faster on the broad surface. This greatly reduces the risk of pinch flats (snakebites). The wide profile provides a stable platform with less force required to mount tires.

  • Specs

  • Tech

  • Warranty

  • In The Box

United States
0
Eli : AM930S/DT Swiss 350/CX-Ray
United States
1
Light Bicycle : Rims: AM930S Flyweight-F Standard-R UD Paintless 32H External Hole No Drain Holes With Access Holes Hubs: Bitex BX211 Black 15/110mm 12/148mm BOOST J-bend 6-bolt 32H 24T Shimano Micro Spline Spokes: Sapim D-Light Black J-bend Nipples: Sapim Aluminium Black External
1
Marty : I built the bike with those wonderful rims. This is my adventure bikepacking bike. I already bought 26" carbon rims for my Streettrial bike like Ali C. did. Love your rims, Marty
Germany
1
Brandon : I've been riding the AM930S wheels for about a year on my 150/135 trail bike and they have been flawless. They've held up to everything I've thrown at them in the Southwest US and in the Rockies. Build quality is exceptional!
United States
1
Light Bicycle : Rims: AM930S Standard UD Paintless 32/32H External Hole With Access Holes Hubs: DT SWISS 240 EXP 15/110mm 12/148mm BOOST J-bend 6-bolt EXP 36 Sram XD Spokes: LB oil slick Nipples: LB brass black
1
Light Bicycle : Rims: AM930S Flyweight UD Paintless No Drain Holes With Access Holes Hubs: DT SWISS 240 EXP 15/110mm 12/148mm BOOST Straightpull Centerlock 28/28H EXP 36 Sram XD Spokes: Sapim CX Ray Black Straightpull Nipples: Sapim Aluminium Black External Weight: 1305g
1
Light Bicycle : Rims: AM930S 29er Flyweight Paintless UD 28/28H w/ access holes Hubs: Powerway PHB-L32 Lefty 2.0 Supermax straightpull 6-bolt DT Swiss 350 12/142mm straightpull 6-bolt 54t Sram XD Spokes: Sapim D-Light Black straight pull Nipples: Sapim Aluminium Black External
1

View More Reviews >>

COMMENTS

B

Ben 2024/02/11

Can you get dt 350 157mm super boost rear hubs? If so would the price be similar to other 350 hubs?


LightBicycle 2024/02/13

Hi Ben, Thanks for your inquiry! We do have DT 350 12*157mm super boost rear hub 6-bolt disc, J-bend. Do you like rear hub only or complete mtb wheelset? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Alexei 2022/06/21

Can you use BERD spokes in this wheelset? How do u get the 1270 gram wheelset and do u have wheelsets close to 1kg in weight? LIGHT XC?


LightBicycle 2022/06/22

Hi Sir, It is okay to build this AM930S wheelset 29er with Berd spokes. AM930S is not the lightest XC wheelset. If you like light XC 29er wheelset, we recommend our 29er RM29C06 as below link. The flyweight version is really light. https://www.lightbicycle.com/beadless-carbon-29er-XC-light-weight-mtb-tubeless-wheelset-hand-built-27mm-wide.html Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

Josh 2022/03/02

Can you do superboost 157mm hub?


LightBicycle 2022/03/02

Hi John, Thanks for reaching out! Yes, we do have some Industry Nine hubs featured with a 15/157mm super-boost axle. Will this be ok for you? Or you have other preferred brands? Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

K

KC 2022/02/13

Hello, I'm interested in the RECON PRO WHEELSET AM930S. I would to configure with bitex hubs. Are those hubs available in red? Thanks, KC


LightBicycle 2022/02/14

Hi KC, Yes, we can build the AM930S 29er wheelset with Bitex hubs. The hubs we use are Bitex BX212F / BX212R. The color options are black and oil-slick. Here're the specs for your ref. https://www.lightbicycle.com/site/share-cart?id=5010 Thanks, Lightbicycle


REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.
