Build Your Recon Pro RIM AM930S

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.


Buy wheelset

RIM SPECS

  • Model AM930S

    Introduction >>
  • Material Toray T700 Carbon Prepregs & Carbon Nanotubes
  • Size 29"/29er (ETRTO 622mm)
  • Series RECON PRO
  • Intended Use All Mountain, XC
  • Bead Type Hookless
  • Tubeless Capable Yes

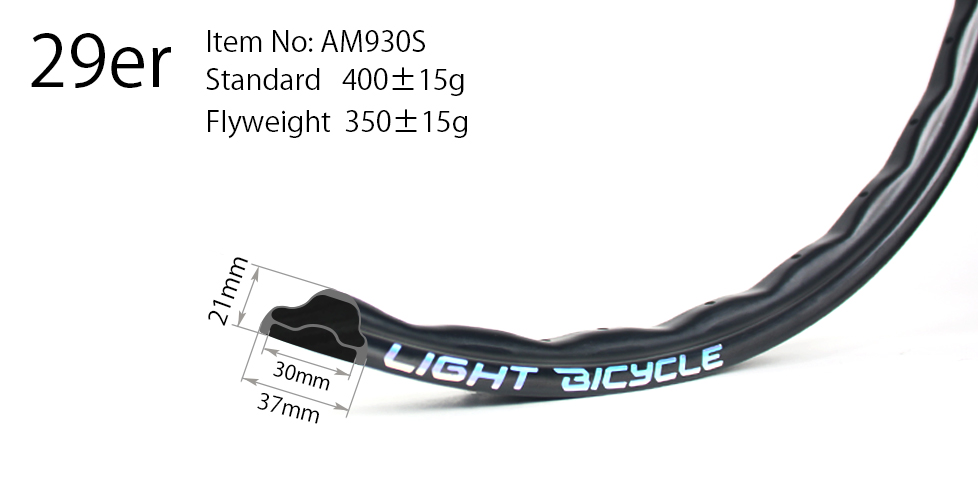

  • Inner/Outer Width 30mm/37mm
  • Depth 18.1mm~21mm
  • ERD 595.4mm (not including nipple head dimension)
  • Rim Weight Standard 400+/-15g, Flyweight 350+/-15g
  • Profile Asymmetric (3.3mm)
  • Max Cyclist Weight (on flat ground) Standard 135kg/ 298lbs, Flyweight 90kg/ 198lbs
  • Spoke Hole Angle ±8°
  • Spoke Tension 115~130kgf front disc side and rear drive side
  • Max Tire Pressure 30psi/ 2.09bar
  • Recommended Tire Width 2.2" ~ 2.7"

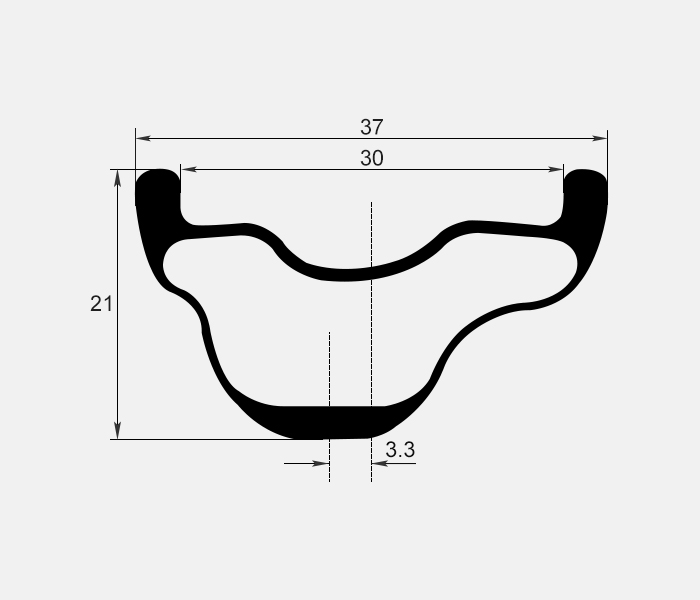

MTB carbon rim profile

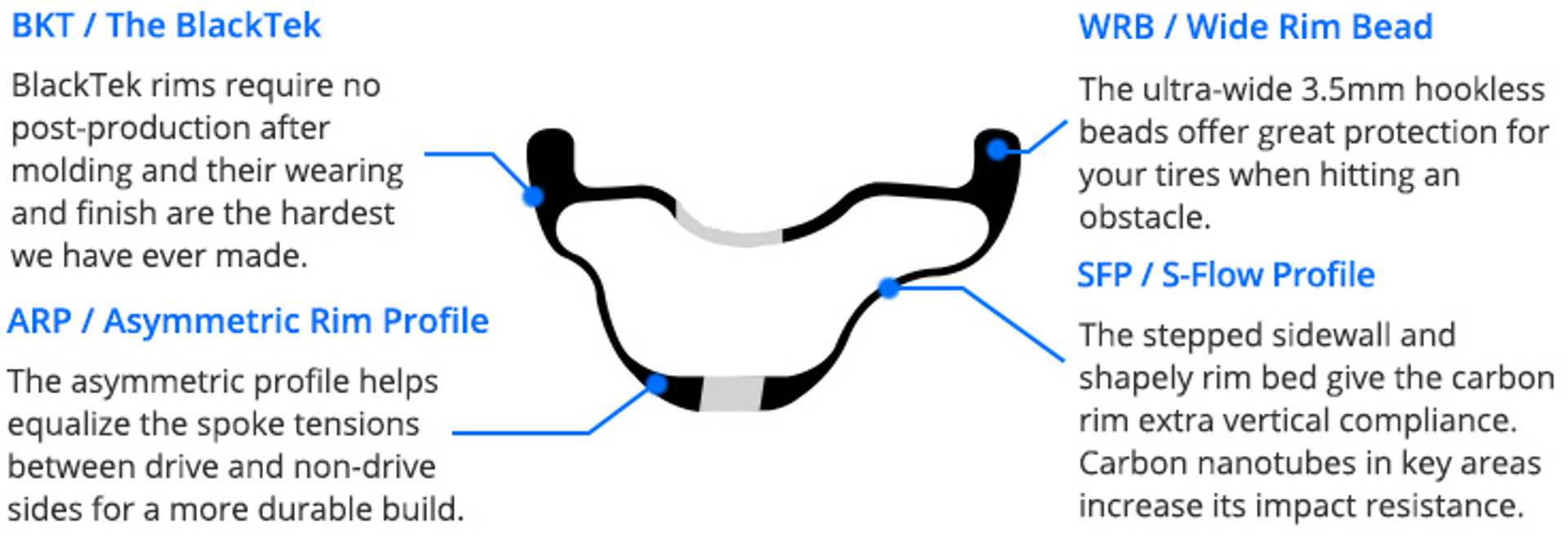

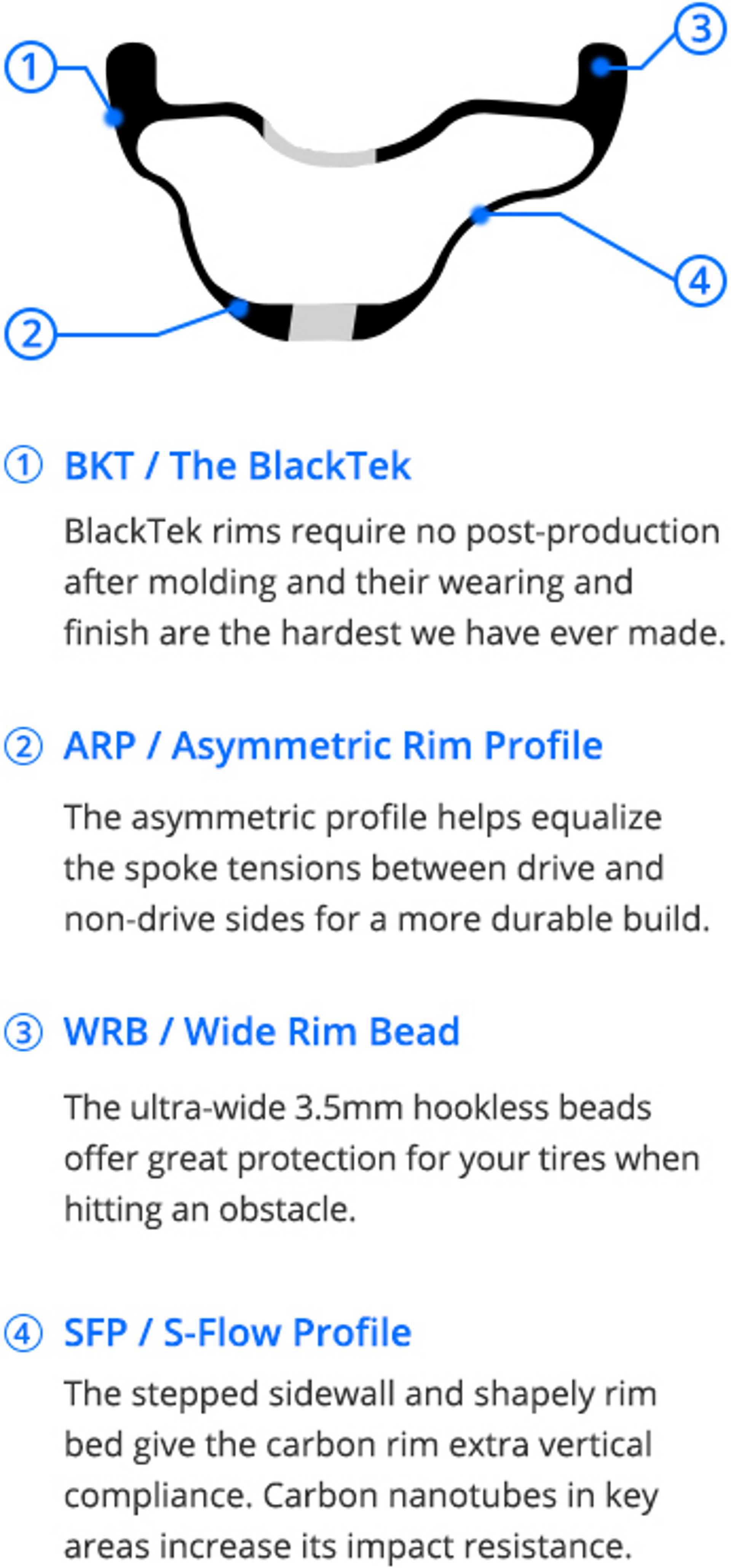

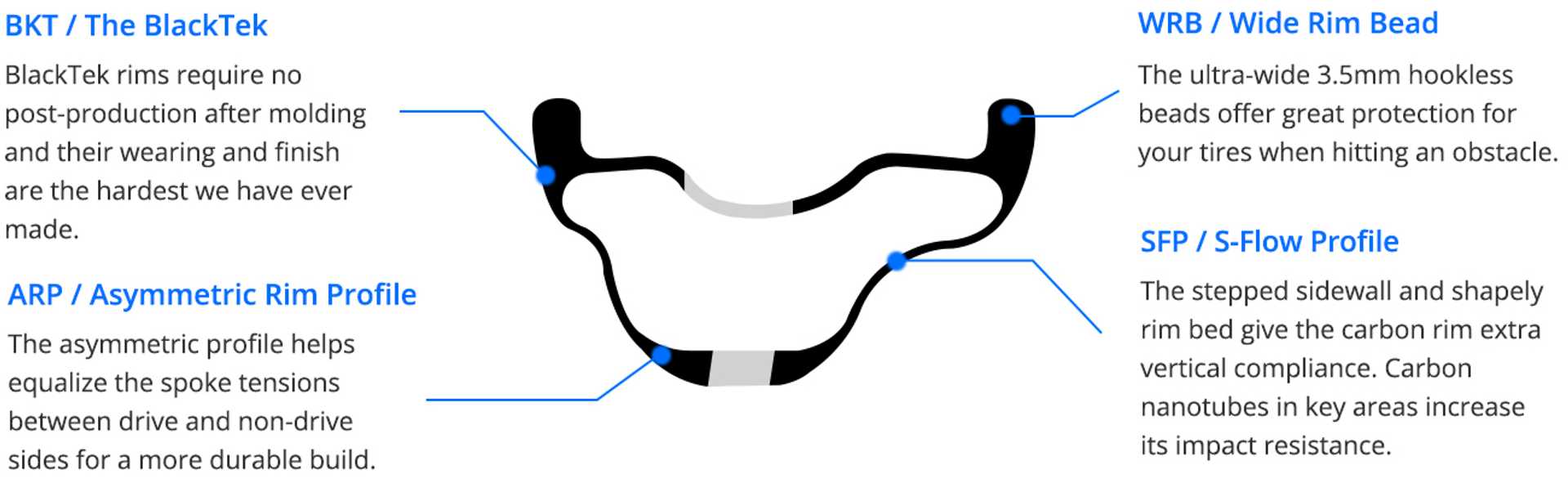

TECH

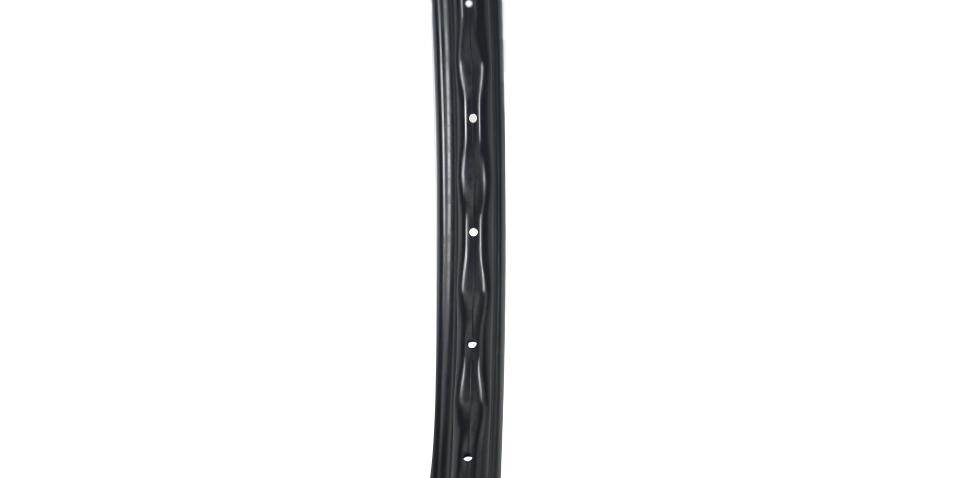

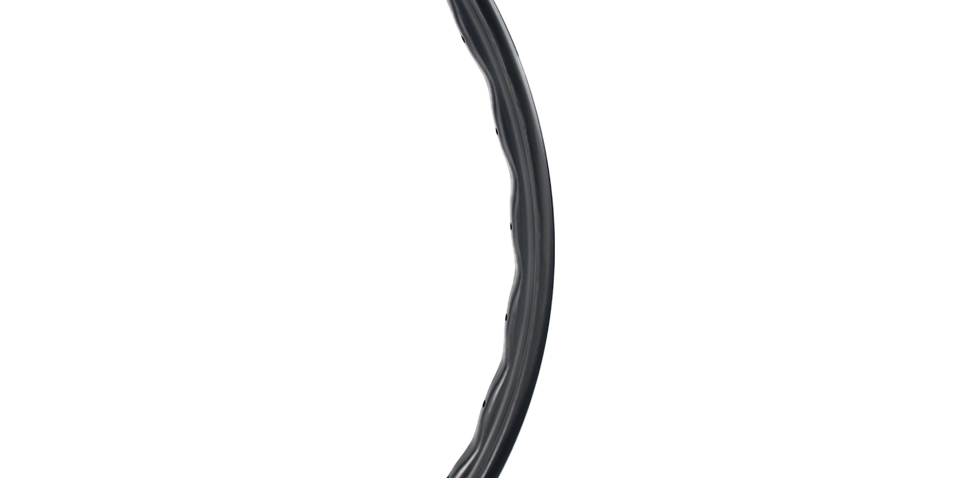

The overall depth alternates between 18.1mm to 21mm, creating a ribbed inner circumference. The unique combination of a stepped sidewall and shapely rim bed gives the carbon rim extra vertical compliance. A finely-tuned Toray T700 layup features layers of carbon nanotubes in key areas to further the vibration damping properties. Carbon nanotubes increase impact resistance by 10% without adding weight. The final result? An all-around player making light work of tough trails.

The thickened rim bead, along with the smooth edge, offers great protection for your tires when hitting an obstacle - the impact energy gets dispersed faster on the broad surface. This greatly reduces the risk of pinch flats (snakebites). The wide profile provides a stable platform with less force required to mount tires.


Learn More >>

WARRANTY

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>

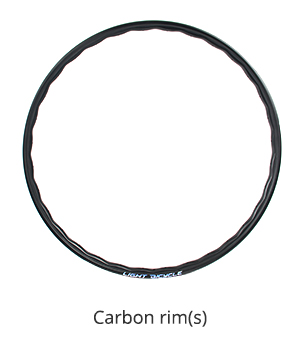

WHAT IS IN THE BOX


Overview

Specs

Tech

Warranty

In The Box

The overall depth alternates between 18.1mm to 21mm, creating a ribbed inner circumference. The unique combination of a stepped sidewall and shapely rim bed gives the carbon rim extra vertical compliance. A finely-tuned Toray T700 layup features layers of carbon nanotubes in key areas to further the vibration damping properties. Carbon nanotubes increase impact resistance by 10% without adding weight. The final result? An all-around player making light work of tough trails.

The thickened rim bead, along with the smooth edge, offers great protection for your tires when hitting an obstacle - the impact energy gets dispersed faster on the broad surface. This greatly reduces the risk of pinch flats (snakebites). The wide profile provides a stable platform with less force required to mount tires.

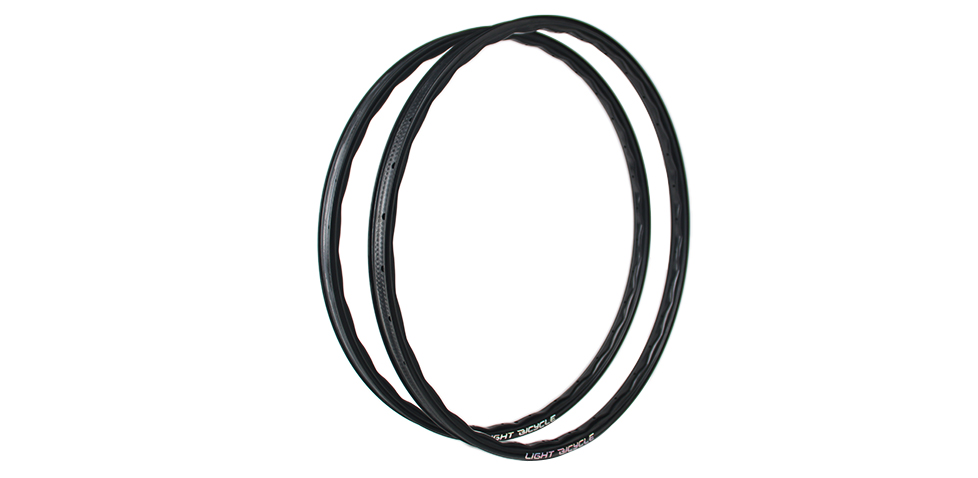

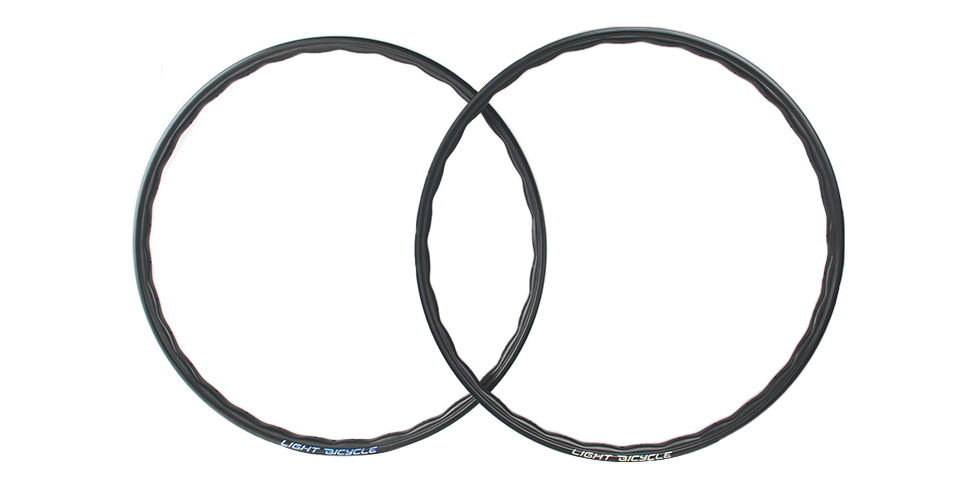

Gallery

light-bicycle-am930s-ud-carbon-mountain-bike-wheels-29er
Add a comment...
United States
0
vassago-bike-on-light-bicycle-carbon-wheels-am930s
Eli : AM930S/DT Swiss 350/CX-Ray
United States
1
light-bicycle-am930s-best-affordable-mtb-wheelset
Light Bicycle : Rims: AM930S Flyweight-F Standard-R UD Paintless 32H External Hole No Drain Holes With Access Holes Hubs: Bitex BX211 Black 15/110mm 12/148mm BOOST J-bend 6-bolt 32H 24T Shimano Micro Spline Spokes: Sapim D-Light Black J-bend Nipples: Sapim Aluminium Black External
1
light-bicycle-am930s-29er-custom-crystal-paint-carbon-mtb-wheels
Marty : I built the bike with those wonderful rims. This is my adventure bikepacking bike. I already bought 26" carbon rims for my Streettrial bike like Ali C. did. Love your rims, Marty
Germany
1
light-bicycle-compliant-carbon-mtb-wheel-front
Brandon : I've been riding the AM930S wheels for about a year on my 150/135 trail bike and they have been flawless. They've held up to everything I've thrown at them in the Southwest US and in the Rockies. Build quality is exceptional!
United States
1
light-bicycle-oil-slick-spoked-wheelset-mtb
Light Bicycle : Rims: AM930S Standard UD Paintless 32/32H External Hole With Access Holes Hubs: DT SWISS 240 EXP 15/110mm 12/148mm BOOST J-bend 6-bolt EXP 36 Sram XD Spokes: LB oil slick Nipples: LB brass black
1
light-bicycle-am930s-carbon-mtb-cross-country-wheelset
Light Bicycle : Rims: AM930S Flyweight UD Paintless No Drain Holes With Access Holes Hubs: DT SWISS 240 EXP 15/110mm 12/148mm BOOST Straightpull Centerlock 28/28H EXP 36 Sram XD Spokes: Sapim CX Ray Black Straightpull Nipples: Sapim Aluminium Black External Weight: 1305g
1
am930s-custom-mtb-wheelset
Light Bicycle : Rims: AM930S 29er Flyweight Paintless UD 28/28H w/ access holes Hubs: Powerway PHB-L32 Lefty 2.0 Supermax straightpull 6-bolt DT Swiss 350 12/142mm straightpull 6-bolt 54t Sram XD Spokes: Sapim D-Light Black straight pull Nipples: Sapim Aluminium Black External
1

View More Reviews >>

COMMENTS

B

Brandeslav 2024/10/10

Hi Lightbicycle team, I would like you to recommend rims for me. I am 105kg weight (180cm height), riding All Mountain 29er. my tires are 2.3" Thank you for your answer.

LightBicycle 2024/10/11

Hi Sir, Thanks for your inquiry! Do you ride aggressively? Then we can check which AM 29er rims are better for you. Currently, we recommend below AM930 rims, they are 30mm inner width and really durable. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Eran 2023/07/03

Hi I'm 80Kg - which of these lighter options on sale will be best for easy trail riding ?

LightBicycle 2023/07/03

Hi Eran, May i know the tire width that you use? Do you ride aggressively? Then we can check which 29er rim is better for you. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Andrzej 2022/08/16

Hi. Currently I have two XC925 rims (flyweight front / standard rear). I would like to assemble a second set of wider wheels for light 2.4" tires. I use the bike for XC / marathon (fullsuspension 120mm). My weight is 67 kg. Will two AM930S flyweight rims be a good idea? Or maybe it is possible to make a rim on the front, e.g. 330g and 360g on the rear?

LightBicycle 2022/08/16

Hi Andrzej, Yes, the AM930S recommends 2.2"-2.7" tires. And the AM930S flyweight version weighs 350g+/-15 only. The front flyweight rear standard version is available if you want a more durable XC 29er wheelset. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

A

Andy 2022/06/26

Hi, are you able to do a custom build with onyx vesper hubs? Do you have prices for this with the AM930S and AM930 rims please?

LightBicycle 2022/06/27

Hi Andy, Yes, we could build the 29er wheelset AM930S with onyx versper. What is your axle size? boost 15*110mm front/rear 12*148mm? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

E

Eugene 2021/10/23

Hi! Are there any plans to release the s-flow profile in a 27.5 rim? Thanks!

LightBicycle 2021/10/25

Hi Eugene, I am sorry that we don't have a plan to make the AM930S in 27.5" at the moment. Because of the special design shape, every different spec would require a new mold and design process. So it might take some time. But I will inform you if we do have a plan to make a 650b version. Do you consider other models right now? Thanks, Lightbicycle

N

Nathan 2022/06/14

Any new development or plans to make a 650b version of these AM930S rims? Thanks!

LightBicycle 2022/06/14

Hi Nathan, We don''t have the plan to make a 650b mtb rim bike version AM930S at the moment. I will inform you when we do. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

John 2022/05/09

Hi do you recommend 2 cross or 3 cross lacing for the 28hole?

LightBicycle 2022/05/10

Hi John, For the straight-pull head, only 3-cross lacing is available for 29er wheels mtb. If the head is J-bend and you want to get a more stiff wheel, then 3-cross lacing is a better option. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Merrick 2021/10/24

Are these AM930S rims offered in 28h?

LightBicycle 2021/10/25

Hi Merrick, I am sorry that we only have 32H mold for the AM930S-37mm 29er mtb bike rim at the moment. 28H will be ready a few weeks later. Thanks, Lightbicycle

J

Johnny 2022/04/07

Are the 28H rims available now? Or how soon if not?

LightBicycle 2022/04/07

Hi Johnny, Yes, the AM930S 28H 29er mtb bike rim is available now. Do you need two rims or the whole wheelset 29er? Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

J

James 2022/04/02

Hi how dos the AMS930S Fly weight compare to the RM29C07?

LightBicycle 2022/04/02

Hi James, For starters, AM930S 29er bike rim and RM29C07 are from different lineups. AM930S was designed to gain extra vertical compliance and be able to keep the weight down by 10%. The use of T700 carbon fiber and nanotubes in key areas to further the vibration damping properties. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

H

hariz 2022/01/18

I'm interested in the new S flow wheels. Would you tell me the difference between the new AM930S flow rim and the regular AM930. I now they both use the Recon Pro rim. What do you give up as far as strength goes with the new S flow rim. I have a Ibis Ripley v4, its a 120/130mm trail bike. I am 165lbs with gear. Looking for a light weight trail wheelset. I have a alloy wheelset that I will use for rougher trail riding/enduro . Thank you

LightBicycle 2022/01/18

Hi hariz, Here're some key differences between 29er bike rims AM930S and AM930 that might help you. 1. The riding experience. If you are riding a hardtail, you will feel a big difference during riding. AM930S provides more comfort due to the special design of the rim profile. But AM930 is better in vertical stiffness if that's what you are after. Or for a suspension bike. 2. Weight The "凸" structure makes the rim strong and is able to reduce 40g/rim compare to AM930. 3. Asymmetric design. Wheelset with AM930S can reach a better balance of spoke tension between the drive and non-drive side of the wheel thanks to the 3.3mm offset. AM930 is also an asymmetric rim, but it's only 2.0mm offset. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

F

Farhan 2022/01/17

Hi! I would like to purchase AM930S wheelset boost along with 240exp hubs 6bolt. How do I go about on this? thanks!

LightBicycle 2022/01/17

Hi Farbon, Thanks for your inquiry! I just add AM930S 29er wheelset with DT 240 EXP boost hubs in the cart for you. Please check below wheelset specs. is it what you like? https://www.lightbicycle.com/site/share-cart?id=4897 Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

C

Colin 2021/12/31

Hello, looking for best price for: AM930S with Hydra hubs and CX-Ray spokes. Front Hub: Boost Rear Hub: SuperBoost Shimano Microspline Driver Centerlock Brakes Tubeless valves and tape. Shipping to Vancouver, Canada (V7J 2S5)

LightBicycle 2021/12/31

Hi Colin, AM930S wheelset 29er with Hydra hubs and CX-Ray spokes will be available in our North American warehouse. The rims will arrive around 10th, January, 2022. The wheelset will ship from our North American warehouse to Vancouver, Canada(V7J2S5) by UPS Standard. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

B

Brent 2021/12/14

I have yet to see these rims appear on the site as an option to "build and configure" into full wheelsets?

LightBicycle 2021/12/15

Hi Brent, We can build the 29er wheelset for you with AM930S rims. Do you have a preferred hub in mind? Thanks, Lightbicyle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

T

Tony 2021/12/07

Hello! Could you build an AM930S wheelset with BERD PolyLight Spokes? https://berdspokes.com/collections/spokes/products/polylight-spokes-black Thanks!

LightBicycle 2021/12/07

Hi Tony, Yes, we can build the AM930S wheel 29er with BERD spokes for you. Have you decided on the hub option yet? I will send you the order via email when everything is settled. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

M

Matt 2021/11/08

Hi there, Are you building custom wheelsets with your new AM930S rims? Or just selling the rims?

LightBicycle 2021/11/09

Hi Matt, Yes, we do sell AM930S rims 29er with custom build option wheels. It's not released online just yet. But you can order it via email. What configurations are you looking for? If you are open to recommendations, I would like to learn more about your riding style to get to know your requirements better. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

R

ron 2021/10/05

please let me know if you will be making a flyweight version of the AM930S and if so the anticipated weight.

LightBicycle 2021/10/06

Hi Ron, We would love to learn more about your riding style and your weight please. Then we can check whether the lighter version of this 29er bike rim works for you or not. Thanks, Lightbicycle

REPLY

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 15 customer reviews>>
