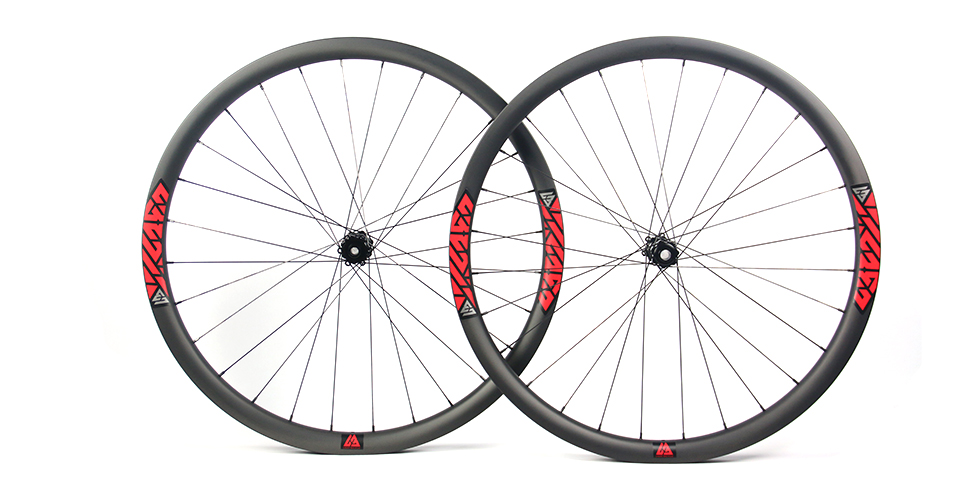

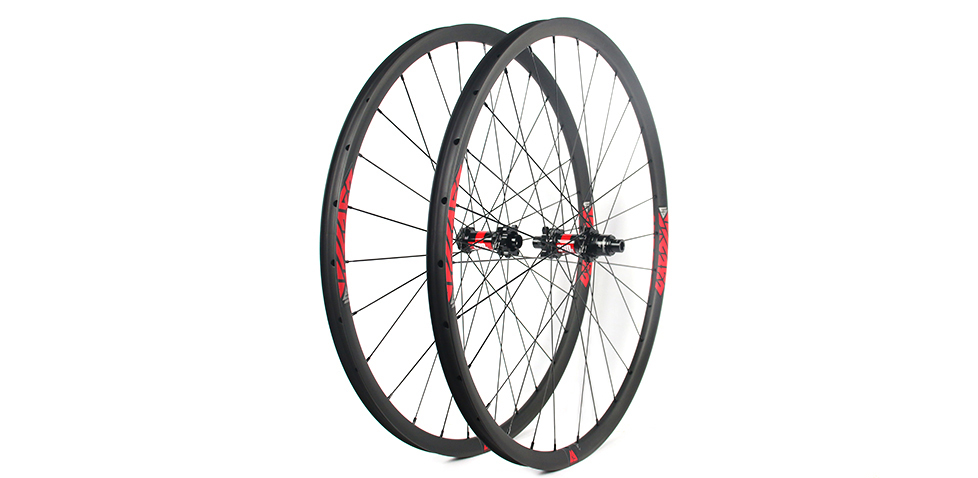

Build Your Falcon WHEELSET AR24 DISC
All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.
WHEELSET SPECS
RIMS
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Rim Model AR24 disc
- Material Toray T700 & T800 Premium Carbon Fiber
- Size 29”/700C (ETRTO 622mm)
- Series FALCON
- Intended Use Gravel
- Bead Type Hookless Clincher
- Tubeless Capable Yes

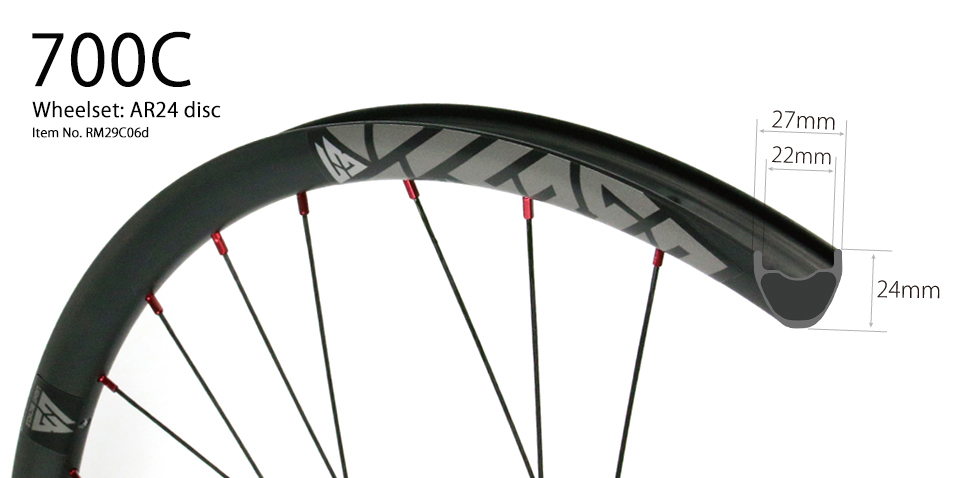

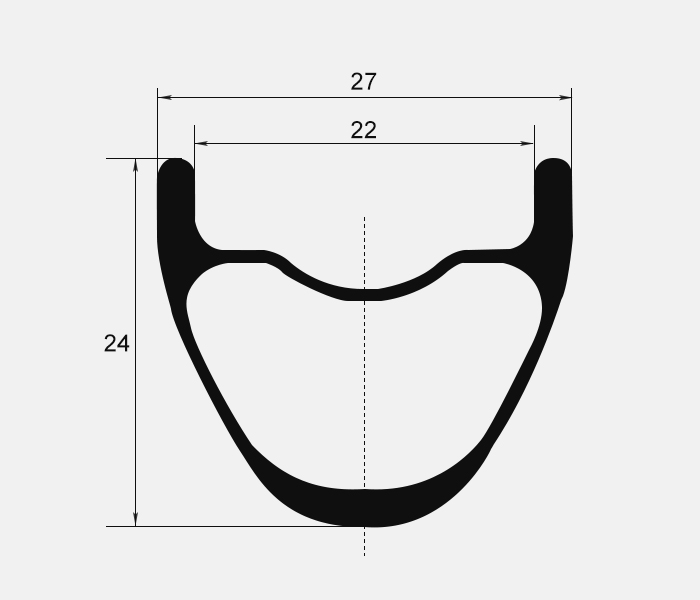

- Inner/Outer Width 22mm/27mm
- Depth 24mm
- ERD 593mm (not including nipple head dimension)
- Rim Weight Flyweight 280+/-15g, Standard 360+/-15g
- Profile Symmetric (0mm)
- Max Cyclist Weight (on flat ground) Flyweight 90kg/ 198lbs, Standard 100kg/ 243lbs
- Spoke Hole Angle ±5°
- Spoke Tension 120~135kgf front disc side and rear drive side
- Max Tire Pressure (with 28C) 50psi/ 3.45bar
- Recommended Tire Width 28C ~ 50C
HUBS
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine 1/1, Chris King R45D, Industry Nine Solix, Carbon-Ti X-Hub, Bitex BX312F / BX312R
- Front Axle Size 12 / 100mm
- Rear Axle Size 12 / 142mm
- Driver Body Shimano Road 11S, Shimano Road 11S Alloy, Sram XDR Alloy, Sram XDR, Shimano Micro Spline Road Alloy
- Hole 24H, 28H
OTHER PARTS
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes Pillar Aero X-TRA 1420, Sapim CX Ray, Sapim CX Sprint-Rear drive side/ CX Ray-Other sides
- Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black
TECH
The Flyweight rim targeted specifically towards racers who seek every possible edge on the race course. Our goal was to produce the lightest possible rim without sacrificing performance.
Drawing on our engineers’ years of experience and countless revisions in each step of the manufacturing process, we are able to produce a strong and stiff gravel rim while dramatically reducing the weight.
Construction: We used a special uni-directional pre-preg with a very low fiber areal weight. This is an exclusive process to our Flyweight rims. To further reduce the weight we used a blend of Toray T700 and T800 specific layups. We opted for a new subtle ultralight waterslide graphic in glossy black with a matte finish overtop in the spirit of keeping these as funny cyclocross cross riding oriented rims.
WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
WHAT IS IN THE BOX
The Flyweight rim targeted specifically towards racers who seek every possible edge on the race course. Our goal was to produce the lightest possible rim without sacrificing performance.
Drawing on our engineers’ years of experience and countless revisions in each step of the manufacturing process, we are able to produce a strong and stiff gravel rim while dramatically reducing the weight.
Construction: We used a special uni-directional pre-preg with a very low fiber areal weight. This is an exclusive process to our Flyweight rims. To further reduce the weight we used a blend of Toray T700 and T800 specific layups. We opted for a new subtle ultralight waterslide graphic in glossy black with a matte finish overtop in the spirit of keeping these as funny cyclocross cross riding oriented rims.
Gallery
Ben : Dear Lightbicycle, I just wanted to say thank you. I have recently installed my LB wheels on my gravel bike (my third set of LB wheels) and rode them today. They are fantastic. In quality, rideability and fun, they are the best I could hope for. I would not change a thing.
I should add that the tubeless preparation you did was perfect. I was able to install Maxxis Rambler tires easily with a floor pump!
Please keep being awesome. 加油!
Ben
Sallanches, France
Switzerland
Olaf : i just finished the Bike for mi wife. It is incredibly light and accelerates the very light bike extremely quickly. Especially gravel paths and wading paths with 1.5 bar air pressure are a dream to drive. At the front there is a 2.3 Specialized Fast Track tire and at the rear there is a 2.2 Specialized Renegade. The whole bike only weighs 7.5kg thanks to your super light wheels
I am planing the next project, so will write you soon again.
Germany
Kevin : Hi, I’ve built up the bike. Here’s a pic:
Very happy with the quality and service!
U make it so easy to customise a wheel.
The “stealth decals” looked too white and obvious, so I removed them for a more subdued look.
Thanks very much!
Kevin
Singapore
Light Bicycle : Rims: AR24 disc Hookless Disc Standard Matte UD 24H No Drain Holes With Access Holes
Hubs: Chris King R45D 12/100mm 12/142mm Centerlock Sram XDR 45T
Spokes: Berd Polylight black
Nipples: Sapim aluminum black
Estimated Weight: 1277.28g
Light Bicycle : RIMS: AR24 disc Flyweight Hookless UD Glossy 24H External Hole With Drain Holes With Access Holes
HUB-F: DT Swiss 180 Black 12 / 100mm Straight pull Centerlock 24H Ceramic
HUB-R: DT Swiss 180 Black 12 / 142mm Straight pull Centerlock 24H Ceramic EXP 54T Sram XDR
SPOKE: LB Flyweight carbon black straight pull
NIPPLE: LB design customized for carbon spokes
Light Bicycle : RIMS: AR24 disc Flyweight Hookless UD Matte 24H External Hole No Drain Holes With Access Holes
HUB-F: Novatec D411SB Black 12 / 100mm straight pull 6-bolt 24H
HUB-R: Novatec D412SB Black 12 / 142mm straight pull 6-bolt 24H 27T Sram XDR
SPOKES: Pillar Aero X-TRA 1420
NIPPLES: Sapim Aluminium Black
Adalberto : AR24 flyweight with Schwalbe G-One Allround on GT Grade Carbon. The rims are very light and seems sturdy.
Italy
