Build Your Falcon RIM AR24 disc

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Bead type This is a required option.

Hookless

Brake System This is a required option.

Disc

Version This is a required option.

Version	RM29C06(d) Standard	RM29C06(d) Flyweight
Weight	360+/-15g	280+/-15g
Material	Toray T700	Toray T800 and T700
Layup	Standard Layup. Good for rear and front	New layup for weight saving. Best for front
Warranty	3 years warranty 3 years crash replacement with 10% discount	3 years warranty 3 years crash replacement with 10% discount
Max Weight	100kg	90kg

Standard

Flyweight USD +15

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

Full Custom

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Hexa-Comb USD +15

Full Custom USD +15

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

Yellow

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 360.00g+/-15

Subtotal: USD 143+

PREVIOUS NEXT

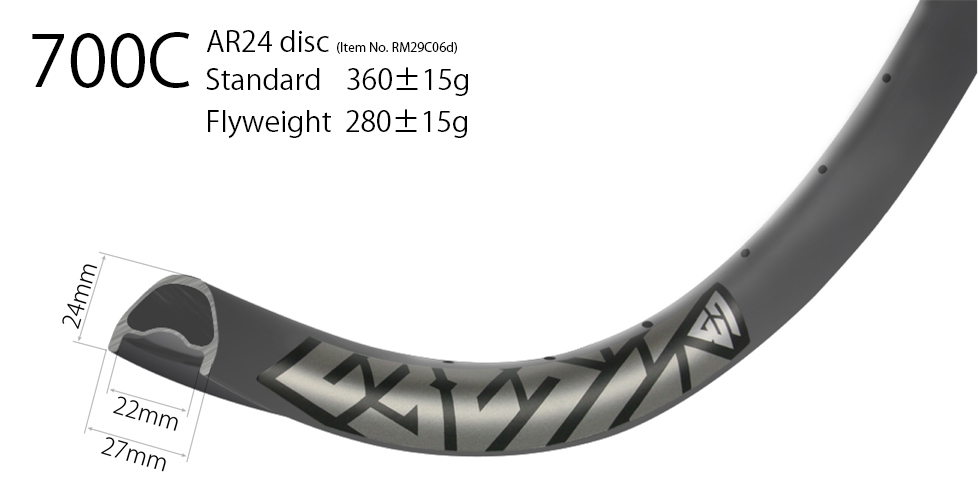

RIM SPECS

Rim Model AR24 disc
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON
Intended Use Gravel
Bead Type Hookless Clincher
Tubeless Capable Yes
Inner/Outer Width 22mm/27mm
Depth 24mm
ERD 593mm (not including nipple head dimension)
Rim Weight Flyweight 280+/-15g, Standard 360+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) Flyweight 90kg/ 198lbs, Standard 100kg/ 243lbs
Spoke Hole Angle ±5°
Spoke Tension 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 28C) 50psi/ 3.45bar
Recommended Tire Width 28C ~ 50C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Rim Model: AR24 disc
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON
Intended Use: Gravel
Bead Type: Hookless Clincher
Tubeless Capable: Yes
Inner/Outer Width: 22mm/27mm
Depth: 24mm
ERD: 593mm (not including nipple head dimension)
Rim Weight: Flyweight 280+/-15g, Standard 360+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): Flyweight 90kg/ 198lbs, Standard 100kg/ 243lbs
Spoke Hole Angle: ±5°
Spoke Tension: 120~135kgf front disc side and rear drive side
Max Tire Pressure (with 28C): 50psi/ 3.45bar
Recommended Tire Width: 28C ~ 50C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

The Flyweight rim targeted specifically towards racers who seek every possible edge on the race course. Our goal was to produce the lightest possible rim without sacrificing performance.

Drawing on our engineers’ years of experience and countless revisions in each step of the manufacturing process, we are able to produce a strong and stiff gravel rim while dramatically reducing the weight.

Construction: We used a special uni-directional pre-preg with a very low fiber areal weight. This is an exclusive process to our Flyweight rims. To further reduce the weight we used a blend of Toray T700 and T800 specific layups. We opted for a new subtle ultralight waterslide graphic in glossy black with a matte finish overtop in the spirit of keeping these as funny cyclocross cross riding oriented rims.
Specs
Rims

Rim Model: AR24 disc

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON

Intended Use: Gravel

Bead Type: Hookless Clincher

Tubeless Capable: Yes

Inner/Outer Width: 22mm/27mm

Depth: 24mm

ERD: 593mm (not including nipple head dimension)

Rim Weight: Flyweight 280+/-15g, Standard 360+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): Flyweight 90kg/ 198lbs, Standard 100kg/ 243lbs

Spoke Hole Angle: ±5°

Spoke Tension: 120~135kgf front disc side and rear drive side

Max Tire Pressure (with 28C): 50psi/ 3.45bar

Recommended Tire Width: 28C ~ 50C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-ar24-disc-brake-tubeless-gravel-bike-wheels

Ben : Dear Lightbicycle, I just wanted to say thank you. I have recently installed my LB wheels on my gravel bike (my third set of LB wheels) and rode them today. They are fantastic. In quality, rideability and fun, they are the best I could hope for. I would not change a thing. I should add that the tubeless preparation you did was perfect. I was able to install Maxxis Rambler tires easily with a floor pump! Please keep being awesome. 加油！ Ben Sallanches, France

Switzerland

flyweight-light-bicycle-ar24-disc-brake-carbon-wheels-review

Olaf : i just finished the Bike for mi wife. It is incredibly light and accelerates the very light bike extremely quickly. Especially gravel paths and wading paths with 1.5 bar air pressure are a dream to drive. At the front there is a 2.3 Specialized Fast Track tire and at the rear there is a 2.2 Specialized Renegade. The whole bike only weighs 7.5kg thanks to your super light wheels I am planing the next project, so will write you soon again.

Germany

Light-Bicycle-gravel-wheels-review-AR24-AR28

Kevin : Hi, I’ve built up the bike. Here’s a pic: Very happy with the quality and service! U make it so easy to customise a wheel. The “stealth decals” looked too white and obvious, so I removed them for a more subdued look. Thanks very much! Kevin

Singapore

Chris-King-R45D-road-gravel-Berd-spoke-wheelset

Light Bicycle : Rims: AR24 disc Hookless Disc Standard Matte UD 24H No Drain Holes With Access Holes Hubs: Chris King R45D 12/100mm 12/142mm Centerlock Sram XDR 45T Spokes: Berd Polylight black Nipples: Sapim aluminum black Estimated Weight: 1277.28g

AR24-disc-Flyweight-with-Light-Bicycle-Carbon-Spokes

Light Bicycle : RIMS: AR24 disc Flyweight Hookless UD Glossy 24H External Hole With Drain Holes With Access Holes HUB-F: DT Swiss 180 Black 12 / 100mm Straight pull Centerlock 24H Ceramic HUB-R: DT Swiss 180 Black 12 / 142mm Straight pull Centerlock 24H Ceramic EXP 54T Sram XDR SPOKE: LB Flyweight carbon black straight pull NIPPLE: LB design customized for carbon spokes

light-bicycle-AR24-disc-700c-gravel-wheelset

Light Bicycle : RIMS: AR24 disc Flyweight Hookless UD Matte 24H External Hole No Drain Holes With Access Holes HUB-F: Novatec D411SB Black 12 / 100mm straight pull 6-bolt 24H HUB-R: Novatec D412SB Black 12 / 142mm straight pull 6-bolt 24H 27T Sram XDR SPOKES: Pillar Aero X-TRA 1420 NIPPLES: Sapim Aluminium Black

Light-Bicycle-Journey-gravel-touring-bike

Kurt : Frame and wheels all assembled!

United States

gt-grade-carbon-pro-gravel-bike-on-light-bicycle-carbon-gravel-wheels

Adalberto : AR24 flyweight with Schwalbe G-One Allround on GT Grade Carbon. The rims are very light and seems sturdy.

Italy

View More Reviews >>

COMMENTS

Cris 2020/04/07

What is the highest PSI these rims can take? looking for a set for my road bike

LightBicycle 2020/04/07

Hi Cristian, For AR24 road bike disc rims, the max tire pressure in lab test is 60PSI. How many tire pressure will you use?For hookless, it is better to make sure it is lower than 60PSI while riding. Thanks, Lightbicycle

Steve 2020/12/14

Is the "lab test" a tire-blowoff test to find the limit of the rim profile?

LightBicycle 2020/12/14

Hi Steve, What tire pressure and tire model that you plan to run with AR24 (27mm wide) road disc? The max we recommend to run is 50psi because of the hookless rim bead design. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Falcon RIM AR24 disc

Overview

Specs

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Warranty

In The Box

Gallery
