Build Your Recon Pro RIM AM727

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

24H

28H

32H

36H

Full Custom

Finish This is a required option.

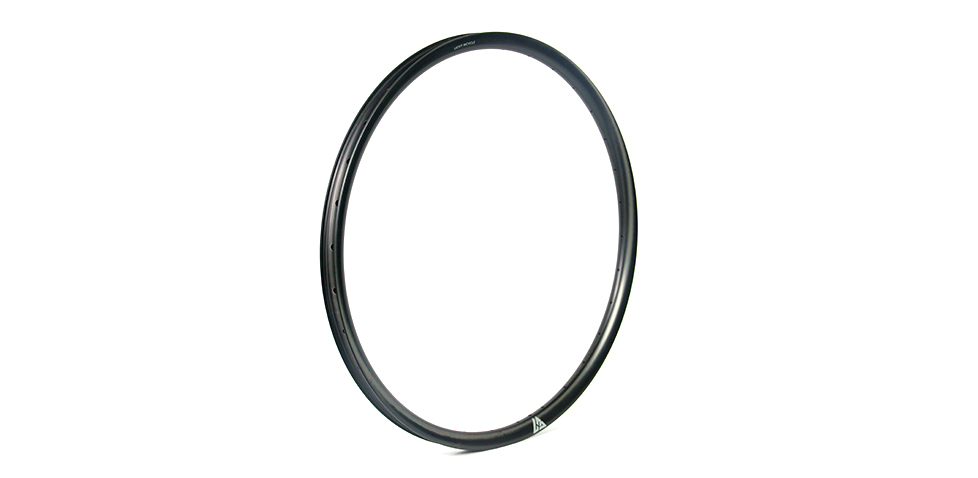

Paintless: The "Finish" relates to how the rim is coated or painted such as matte or glossy for the most common applications. Our Recon Pro and Falcon Pro rims feature BlackTek and come out of molds as a completed product, with a scratch resistant and near flawless finish, eliminating the need for coating or painting. We name this kind of superior finish the paintless.

Crystal Painting: A fantastic painting effect designed by Light Bicycle.

Full Custom: This option offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3~5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR REQUIREMENT IN QUOTES IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed to finalize the details.

Paintless

Glossy Crystal Painting (silver) USD +20

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Rim Warranty This is a required option.

For Recon Pro Series ( MTB rim), Falcon Pro (road rim) and Drift Pro (fatbike rim), 5-year warranty is set as standard, and optional Lifetime Premium Warranty are kindly offered to purchase with minimum charge respectively.

5 Years

Lifetime USD +100/rim

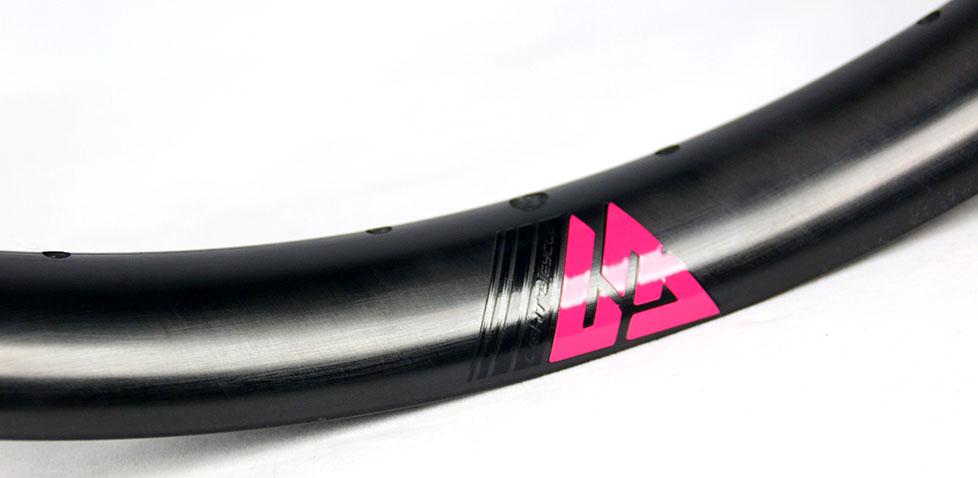

Decal This is a required option.

1. Grey Laser Engraving (Recon Pro) - Our laser engraving technology is eco-friendly and adds a snappy, polished aesthetic to your new rims.
Please note: Contrary to rims with any coated/painted finishes (matte, glossy and satin) as well as Crystal Painting, laser engraving could work with paintless rims only.

2. Full Custom - Add some additional personalization and go full custom with your rim graphics! Laser engraving is available in one colour (light grey) and starts at $5 USD per rim. If you select this option, LEAVE YOUR REQUEST IN QUOTES IN THE NOTES AT CHECKOUT. For example: "I need my personalized logo printed" or "Just text 'ABC racing' ". We will reach out to you once the order is placed to finalize the details of custom graphics.

Grey Laser Engraving (Recon Pro)

Blank (No decal)

Full Custom (Laser only) USD +5

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 385.00g+/-15

Subtotal: USD 269+

PREVIOUS NEXT

RIM SPECS

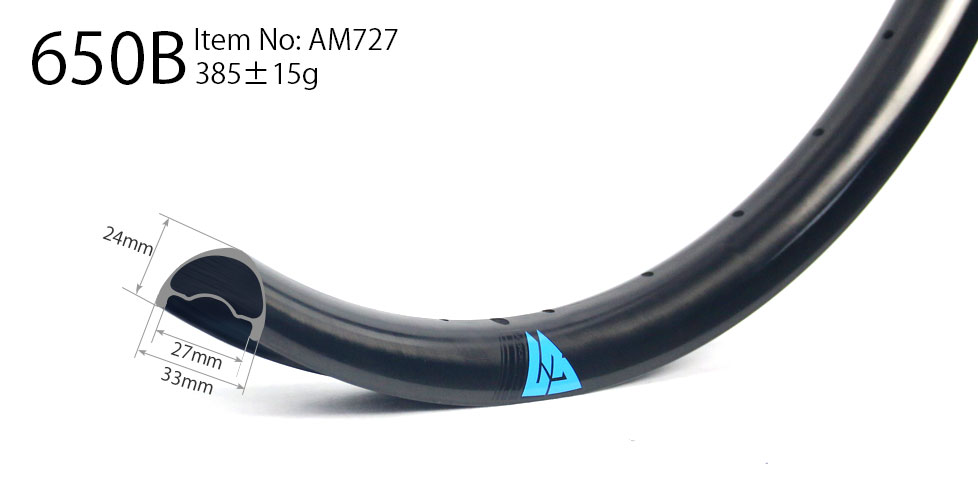

Model AM727
Material Toray T700 & T800 Premium Carbon Fiber
Size 27.5"/650B (ETRTO 584mm)
Series RECON PRO
Intended Use All Mountain
Bead Type Hookless
Tubeless Capable Yes

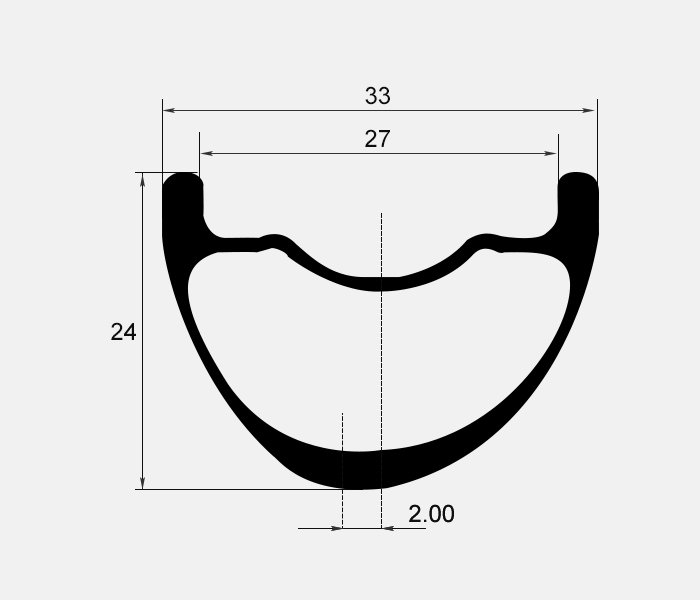

Inner/Outer Width 27mm/33mm
Depth 24mm
ERD 553mm (not including nipple head dimension)
Rim Weight 385g+/-15
Profile Asymmetric (2mm)
Max Cyclist Weight (on flat ground) 130kg/ 287lbs
Spoke Hole Angle ±7°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.75bar
Recommended Tire Width 2.1" ~ 2.7"

Our swiss army knife of mountain bike rims: technical XC race, light enduro, endurance, or just good plain mountain biking! The AM727’s are really light, fast, compliant, and can create a quiver-killer wheelset.

A sensible 27mm internal width keeps things modern, but doesn’t overkill in the stiffness or width department. Want to run 2.1” tires for an XC race one day, 2.3’s for an all day epic, then burly 2.4’s for some double black trails the next? No problem! The AM727’s are a great choice for riders wanting a versatile lightweight rim that feels at home on a wide range of terrain.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Model: AM727
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 27.5"/650B (ETRTO 584mm)
Series: RECON PRO
Intended Use: All Mountain
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 27mm/33mm
Depth: 24mm
ERD: 553mm (not including nipple head dimension)
Rim Weight: 385g+/-15
Profile: Asymmetric (2mm)
Max Cyclist Weight (on flat ground): 130kg/ 287lbs
Spoke Hole Angle: ±7°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 40psi/ 2.75bar
Recommended Tire Width: 2.1" ~ 2.7"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Our swiss army knife of mountain bike rims: technical XC race, light enduro, endurance, or just good plain mountain biking! The AM727’s are really light, fast, compliant, and can create a quiver-killer wheelset.

A sensible 27mm internal width keeps things modern, but doesn’t overkill in the stiffness or width department. Want to run 2.1” tires for an XC race one day, 2.3’s for an all day epic, then burly 2.4’s for some double black trails the next? No problem! The AM727’s are a great choice for riders wanting a versatile lightweight rim that feels at home on a wide range of terrain.
Specs
Rims

Model: AM727

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 27.5"/650B (ETRTO 584mm)

Series: RECON PRO

Intended Use: All Mountain

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 27mm/33mm

Depth: 24mm

ERD: 553mm (not including nipple head dimension)

Rim Weight: 385g+/-15

Profile: Asymmetric (2mm)

Max Cyclist Weight (on flat ground): 130kg/ 287lbs

Spoke Hole Angle: ±7°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 40psi/ 2.75bar

Recommended Tire Width: 2.1" ~ 2.7"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

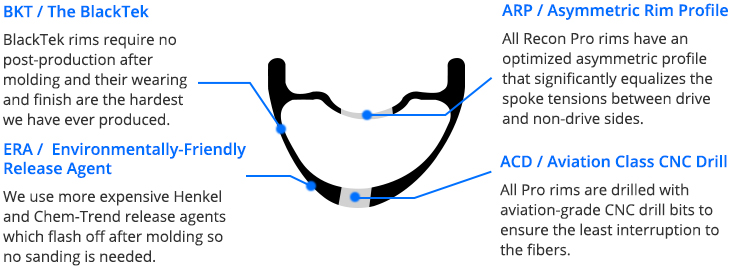

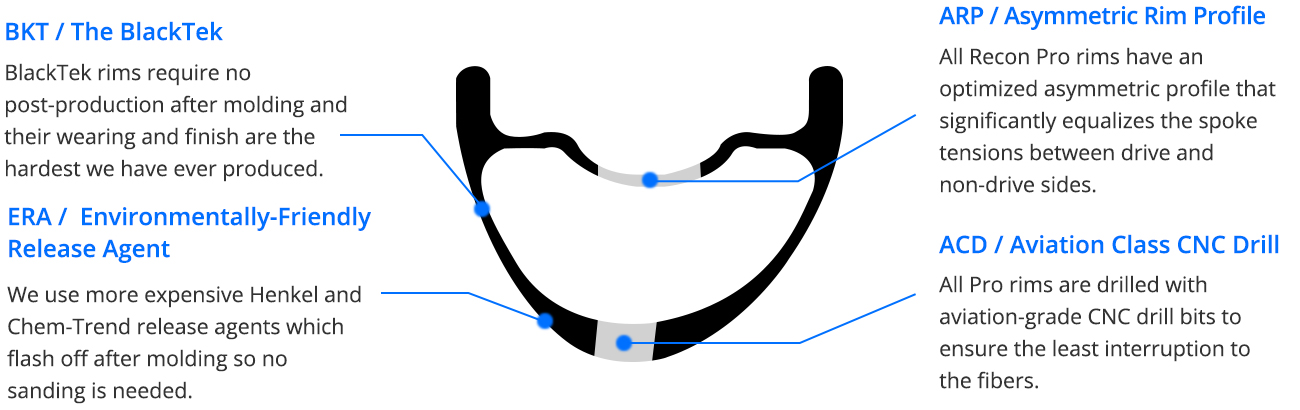

Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

AM727-27.5er-carbon-wheelset-with-Bitex-and-Son-hubs

Light Bicycle : RIMS: AM727 UD Paintless 32H External Holes With Drain Holes With Access Holes HUB-F: Son 28 Anodized-Black 12 / 100mm J-bend Centerlock 32H HUB-R: Bitex BX212R Oil Slick 12 / 148mm BOOST J-bend Centerlock 32H 28T Sram XD SPOKES: DT Swiss Competition Black J-bend NIPPLES: Sapim Brass Oil slick External

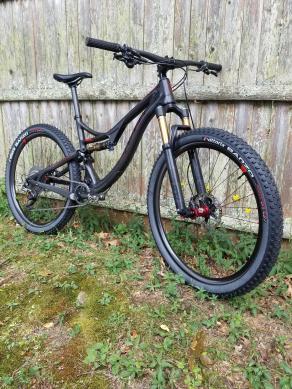

Light-Bicycle-Recon-Pro-am727-carbon-fiber-mtb-rims-on-2017-Pivot-Mach4-Carbon-XC-bike

Paul : 2017 Pivot Mach4 Carbon Recon Pro am727 Industry Nine Hydra hubs Vittoria Barzo 27x2.35 Wheels feel absolutely amazing, hubs are just sick fast engaging and beautiful. I shaved a full pound by switching to this setup from my old aluminum dt swiss wheel set.

United States

View More Reviews >>

COMMENTS

Grant 2019/06/04

Hello, is it possible to purchase the AM727, 650B rims in North America in a 28 hole count? I'm looking to purchase just the rims and not a complete wheel set. I see that North America list just 32 hole which I don't want. Grant

LightBicycle 2019/06/04

Hi Grant, It is okay to manufacture AM727 650B bike rims in 28H, but you will have to order from global warehouse. And it takes around 7~10 days to manufacture this rim, and another 7~10 days for delivery. Thanks, Lightbiccyle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ezra 2019/04/27

Hello, I was wondering if it's possible to get a front wheel only (no rear), at a 28 hole spoke count, and how much would it cost? I am from Canada. Something like the AM727 rim, DT Swiss 350 BOOST front hub, with 28 spokes. Thanks, Ezra

LightBicycle 2019/04/29

Hi Ezra, It is okay to order just front wheel. It is USD449 for AM727 650B wheel with DT 350 boost hub/ sapim cx-ray spokes. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Recon Pro RIM AM727

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
