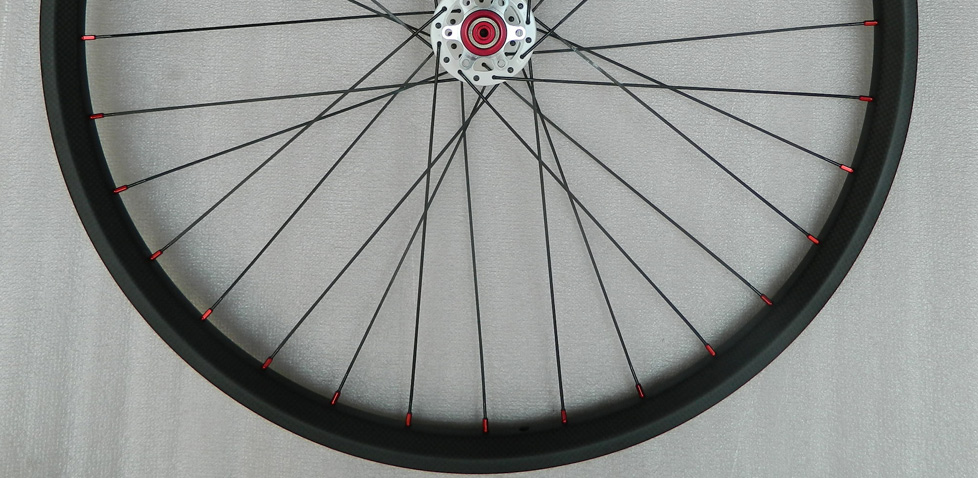

wider carbon 26er bicycle wheels mountain bike cross country wheels

Build Your Recon WHEELSET RM26C02

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy rim only

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Speed-Hub V1.0/V2.0	335g	24-V1.0/ 36-V2.0	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing-V1.0/ Ceramic-V2.0	One	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Industry Nine Hydra

Industry Nine 1/1

Chris King BOOST

Bitex BX212F / BX212R

Hope Pro 5

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

15 / 100mm

15 / 110mm BOOST

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

12 / 148mm BOOST

12 / 157mm Super BOOST

Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano MTB 10/11S

Sram XD

Shimano MTB 10/11S Alloy

Sram XD Alloy

Shimano Micro Spline

Shimano Micro Spline Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Hub Color This is a required option.

Black

Matte Black

Matte Turquoise

Oil Slick

Orange

Red

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

28H

32H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

28H

32H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

108T

27T

36T

54T

690T

72T

90T

EXP 36

EXP 54

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Bladed)	Aero	3.2-1.5/3-3.2	2.65g (SP, 260mm); 2.8g (J-bend,260mm)	N/A	Light Aero/Stiff	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Butted)	Aero	2.3 - 2/2.3-2.3	2.3g (SP, 260mm)	N/A	Light/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Flyweight Carbon Regular Edition >> -It maximizes wheel stiffness while keeping things more aero, designed to unlimit your hub choice making your wheels more customizable than ever.
LB Flyweight Carbon Special Edition >> - It maximizes wheel stiffness while keeping things light, designed to pair seamlessly with our Speed Hubs through the use of specially designed aluminium nipples.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.

DT Swiss Competition Race

Sapim CX Ray

Oil slick J-bend

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China
Light Bicycle	N/A	Brass	Oil slick	14mm	China
Light Bicycle	Aluminium Black (for carbon spokes)	Alloy	Black	8.9mm	China

Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.

Aluminium Black

Aluminium Red

Brass Oil slick

Brass Black

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Full Custom USD +15

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Silver

Blue

Green

Magenta

Orange

Red

Yellow

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

None

Add Tubeless Tape USD +6 each

Apply Tubeless Tape USD +6 each

Rear Wheel Dishing Pattern This is a required option.

While the vast majority of frames require Centered (Traditional) dishing, those of Cannondale’s with Ai offset design (Asymmetric Integration) comply with a special kind of offset dishing for the rear wheel.

Know more about Cannondale’s Ai technology >>

Centered (Traditional)

Ai offset- 6mm

Ai offset- 3mm

Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.

It takes about 1~3 business days added to the lead time subject to the orders queuing status.

If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1245.00g+/-3%

Subtotal: USD 602+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model RM26C02
Material Toray T700 & T800 Premium Carbon Fiber
Size 26" (ETRTO 559mm)
Series RECON
Intended Use Cross Country
Bead Type Hook
Tubeless Capable Yes
Inner/Outer Width 23mm/30mm
Depth 22mm
ERD 532mm (not including nipple head dimension)
Rim Weight 360+/-15g
Profile Symmetric (0 mm)
Max Cyclist Weight (on flat ground) 130kg/ 287lbs
Spoke Hole Angle ±6°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.75bar
Recommended Tire Width 1.9" ~ 2.4"

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5
Front Axle Size 15 / 100mm, 15 / 110mm BOOST
Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST
Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend
Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

Our 30mm 26er wheels are built for those wanting to get the most versatility out of their rims. Do you normally run 2.3” tires and make your friends suffer on the climbs and the descents? Do you want to be able to run your 2.1” XC tires for that marathon race and throw on some 2.4’s the next day for an Enduro? No problem!

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: RM26C02
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 26" (ETRTO 559mm)
Series: RECON
Intended Use: Cross Country
Bead Type: Hook
Tubeless Capable: Yes
Inner/Outer Width: 23mm/30mm
Depth: 22mm
ERD: 532mm (not including nipple head dimension)
Rim Weight: 360+/-15g
Profile: Symmetric (0 mm)
Max Cyclist Weight (on flat ground): 130kg/ 287lbs
Spoke Hole Angle: ±6°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 40psi/ 2.75bar
Recommended Tire Width: 1.9" ~ 2.4"

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5
Front Axle Size: 15 / 100mm, 15 / 110mm BOOST
Rear Axle Size: 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST
Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
Hole: 28H, 32H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend
Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Our 30mm 26er wheels are built for those wanting to get the most versatility out of their rims. Do you normally run 2.3” tires and make your friends suffer on the climbs and the descents? Do you want to be able to run your 2.1” XC tires for that marathon race and throw on some 2.4’s the next day for an Enduro? No problem!
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: RM26C02

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 26" (ETRTO 559mm)

Series: RECON

Intended Use: Cross Country

Bead Type: Hook

Tubeless Capable: Yes

Inner/Outer Width: 23mm/30mm

Depth: 22mm

ERD: 532mm (not including nipple head dimension)

Rim Weight: 360+/-15g

Profile: Symmetric (0 mm)

Max Cyclist Weight (on flat ground): 130kg/ 287lbs

Spoke Hole Angle: ±6°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 40psi/ 2.75bar

Recommended Tire Width: 1.9" ~ 2.4"

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5

Front Axle Size: 15 / 100mm, 15 / 110mm BOOST

Rear Axle Size: 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST

Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy

Hole: 28H, 32H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend

Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Light Bicycle : Rims: Light Bicycle RM26C02 Heavy-Duty (HD) Matte UD W/ Access Holes Hubs: Carbon Ti X Hub Blue 100QR 130QR 6-bolt 28/28H 56T Sram XDR Spokes: Berd Polylight (black) J-bend Nipples: Sapim Polyax Double Square blue aluminum Weight: 1055g

Light-Bicycle-RM26C02-Onyx-Vesper-Custom-Wheelset

Light Bicycle : Rims: RM26C02 Non Disc High TG Surface Matte 3K 20/24H No Drain Holes With Access Holes Hubs: Onyx Vesper 100QR 135QR J-bend Non Disc Anodized-Green Shimano Micro Spline Sprag Clutch Spokes: Sapim CX Ray Black J-bend Nipples: Sapim Aluminium Black External This customer build is a Full-Custom wheelset with custom rim brake surface and special-request Onyx Hubs. Leave a comment or email us (sales@lightbicycle.com) if you want a unique wheelset like this.

BigStore : We ride with pride! New set up DARTMOOR 26player!

China

rm26c02-26inch-cross-country-carbon-wheelset-blue-stickers

Light Bicycle : DT SWISS 240S QR / 100mm J-bend 6-bolt Black 32H NBK DT SWISS 240S QR / 135mm Shimano MTB 10/11S J-bend 6-bolt Black 32H 36T NBK SPOKE Sapim CX Ray NIPPLE Sapim Aluminium Red RM26C02 32H matte UD RM26C02 32H matte UD

rm26c02-3k-glossy-carbon-rims-with-orange-decals

Light Bicycle : RM26C02 400 glossy 3K 32H external hole With Holes with special carved sticker in white

Add a comment...

USA

Wong : Its been very pleasant experience throughout the deal.

Malaysia

Yossi : took 2nd place in the race.

Israel

View More Reviews >>

COMMENTS

Benjamin 2020/04/22

How do I order some

LightBicycle 2020/04/22

Hi Ben, What exactly are the configurations that you are interested in ordering this 26er mountain bike rim? We can work on invoice accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

steve 2016/05/20

Hi Is wheelset 26c02 hookless and as strong as 26c03 ? Thank you

Light-Bicycle 2016/05/20

Hello Steve, Thanks for your inquiry. Currently, the 26C02 is hook version. The hookless 26C03 wheels is stronger than 26C02. Hookless is more durable. I suggest you to choose the 26C03. It is hookless design, the rim wall will be stronger. And it is also wider and deeper for RM26C03 rim. Thanks, Light-bicycle

steve 2016/09/22

Hi, For wheelset w/ 26co3 i would like to use dt 240 hubs. Does the centerlock 240 come in j bend or straight pull , and either with 28 or 32 option? Is the straight pull any harder to true if necessary?

Light-Bicycle 2016/09/23

Hello Steve, Thanks for your inquiry. Below are the hubs we stock now. What hubs axle size do you like for front & rear? -DT 240S J-bend center lock hubs, 32H -DT 240S straight pull center lock hubs, 28H Straight pull refers to spokes with no bend at the head. It allows for an ideal strength to weight ratio when compared to J-bend spokes. However, if you use bladed spoke which is more flexible, both J-bend and straight pull hubs are easy to true. It depends on spoke. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Eric 2015/11/14

Need a price quote for the RM26C03 hook-less rim in 3k matte 28 hole. Built with DT swiss straight pull hubs with the sram xd driver. 15mm front and 142-15mm rear. Do you have the hubs and what would be the lead time? Thanks,

Light-Bicycle 2015/11/16

Hello Eric, Thanks for your inquiry. The 33mm wide 26er wheelset with following specs is USD924/pair. -Rims: RM26C03, 3k matte, 28H, AM version 375 /-15g. Please find attached rim profile. -Hubs: Black, DT Swiss 240S straight pull center lock, 15mm front/ 12*142mm rear for Sram xx1 -Spokes: Black Pillar x-tra 1420 aero or DT competition spokes. DT competition spokes are much heavier, but stronger. -Nipples: Alloy or brass? Black or silver? Lead time: around 15-20 days for wheels, and around 4-7 days to delivery. Thanks, light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tom 2015/08/06

Hi, I am interested in the 33mm wide 26inch carbon wheelset. I'm looking at the following specification: Glossy 12K No decal 32H Pillar Aero Blue Shimano Freehub (black) Regarding the hubs, I'd like the Novatec DH61 20mm front hub but paired with a D882SB QR axle, is this possible as it is not listed as a selection. Thanks

Light-Bicycle 2015/08/07

Hello Tom, Thanks for your inquiry. We can build the 26er wheelset as following specs. -Rims: Hookless 33mm width 26er, 12k glossy, 32H, no decals. Do you prefer AM version (375 /-15g) or DH version (440 /-15g)? DH version is much stronger with extra carbon fiber. Please find attached rim profile. -Hubs: Black, Novatec DH61-20mm thru axle/ D882-135mm QR for Shimano 8/9/10. -Spokes: Black, DT competition spokes -Nipples: Blue, alloy Pillar PT 734 Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ralph 2015/07/14

Can you lace these rims up to a Lefty hub? I have a Cannondale scalpel with a lefty fork.

Light-Bicycle 2015/07/15

Hello Ralph, Thanks for your inquiry. Yes, we can build the 26er wheels with Lefty hub. We have black Project 321 lefty hub & Circus monkey lefty hub for Cannondale. For rear hub, Novatec & Hope hubs are available. Which do you prefer for front & rear? Then we will quote accordingly. For rims, it is 30mm wide 26er rim with hook (360 /-15g). We’d like to recommend the hookless 33mm wide 26er rim (375 /-15g). Hookless is more durable. Do you like it? Please find attached rims profiles. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? For spokes & nipples, it is black Pillar Aero X-TRA 1420 spoke & Pillar PT 734 nipple (black/blue/gold/green/red/silver). Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

nic 2015/06/27

I have 3 questions. Do you have pictures of your different rim weaves, 3k, 12k, UD? Matte or glossy? 32H? I don;t know which to pick because I don;t know what they look like. Do you have colored spokes? Should I get the 30mm or the 38mm wheelset for my 26" trail bike?

Light-Bicycle 2015/06/29

Hello Nic, Thanks for your inquiry. Please find attached pictures of the rim weave. For 3k/12k/UD, it is the outer carbon fiber layer to make the carbon fiber with different outlook, and all the inside carbon fiber are the same. So, the rim strength & weight is almost the same. 3k matte &UD matte are more popular. For spoke, only black color is available. Is that ok for you? But we have Pillar Pt 734 nipples in black/blue/gold/green/red/silver. Which color do you prefer? We’d like to recommend the 38mm wide 26er wheels for AM riding. It is much wider and stronger. If you like, we can build it as following specs. -Rims: Hookless 38mm width AM rims, 420 /-15g. Attached is the rim profile. -Hubs: We have Novatec & Hope hubs. Which do you prefer? Do you like QR or thru axle for front & rear? -Spokes: Black, Pillar x-tra 1420 aero -Nipples: Pillar PT 734 Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jan 2015/06/28

Hi, which rim would you recommend for trail and light AM riding, 85kg rider weight. Is the RM26C02 strong enough or is the RM26C03 better? Can the wheels be built with DT Swiss or Sapim spokes (e.g. D-Lite)? Pillar spokes are a bit hard to come by as a replacement hereabouts. Finally, do you have access to Hope Straight Pull hubs? Thanks.

Light-Bicycle 2015/06/29

Hello Jan, Thanks for your inquiry. According to your details, we’d like to recommend the 33mm or 38mm width 26er AM rims. It is much wider and stronger. The 26C02 30mm width rim is for XC riding. RM26C03 (33mm wide 26er AM rim): 375 /-15g RM26C05 (38mm wide 26er AM rim): 420 /-15g Please find attached rims profiles. Do you like 3k, 12k or UD for rim weave? Matte or glossy? For hubs, we only have Hope pro2 evo J-bend 6-bolt hubs, no Hope straight pull hubs. But DT Swiss 240S straight pull hubs are available. Is that ok for you? Do you like QR or thru axle for front & rear? For spokes & nipples, we can build it with DT Swiss competition spokes or Sapim spoke. Which do you prefer? Sapim spokes need extra cost. Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Nikulas 2015/05/19

Hi, Could ou build a set with blue hope pro 2 evo hubs?

Light-Bicycle 2015/05/20

Hello Nikulas, Thanks for your inquiry. Yes, we can build the 26er wheels with blue Hope hubs as following specs. -Rims: 30mm wide 26er rims with hook, 360 /-15g. Attached is the rim cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? -Hubs: Blue, Hope pro2 evo hubs. What hub axle size do you like for front & rear? Standard qr or thru axle? With cassette Shimano or Sram? -Spokes: Black, Pillar x-tra 1420 aero -Nipples: Pillar PT 734. Do you like black/red/blue/green/silver/gold? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Kim 2015/05/16

Looking at purchasing a new set of wheels, currently running 2.5 tyres, will this wheel set take this size tyre?

Light-Bicycle 2015/05/18

Hello Kim, Thanks for your inquiry. Yes, the 30mm wide 26er wheels can work with 2.5mm tyres. We can build it as following specs. -Rims: 30mm wide 26er rim with hook, 360 /-15g. Please find attached rims cross-section drawings. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? -Hubs: We have Novatec & Hope hubs. Which do you prefer? What hub axle size do you like for front & rear? Standard qr or thru axle? With cassette body Shimano or Sram? -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black/blue/gold/green/red/silver? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

josh 2015/05/16

I am interested in a AM 26" wheel set that is strong. Do you still offer the 33mm wide rim? Is there a real difference in strength between UD, 3k, 12k weave. I prefer the UD. I would like the Hope hubs 15mm & 12x142 in black. How much for the complete wheel set? Cheers Josh

Light-Bicycle 2015/05/18

Hello Josh, Thanks for your inquiry. Yes, we can build the 26er wheelset as following specs. -Rims: Hookless 33mm wide 26er AM rims, 375 /-15g. Attached is the rim cross-section drawing. For rim weave, it is the outer carbon fiber layer to make the carbon fiber with different outlook, and all the inside carbon fiber are the same. So, the rim strength & weight is almost the same. 3k matte &UD matte are more popular. Do you prefer UD matte or UD glossy? -Hubs: Black, Hope pro2 evo front 15mm/ rear 12*142mm for Shimano 10s. -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black/blue/gold/green/red/silver? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Rob 2015/05/05

im interested in a carbon wheelset using the RM26c03 (33inch outer measurement). I didnt see it listed. is it still available, and what is the price?

Light-Bicycle 2015/05/06

Hello Rob, Thanks for your inquiry. Yes, we can build the 33mm wide 26er wheelset as following specs for you. Sorry, we are too busy to release it on our website. If you’d like to order, we can create an invoice for you. -Rims: Hookless 33mm wide 26er rims, 375 /-15g. Please find attached rim cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? -Hubs: We have Novatec & Hope hubs. Which do you prefer? What hub axle size do you like for front & rear? Standard qr or thru axle? -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black/blue/gold/green/red/silver? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Will 2015/04/04

Hi There, I love the wheels you have put together, and I keep hearing great things about your quality and customer service. I was wondering if you are able to discount the price on wheels if you ship them unbuilt? I would buy the rims, hubs, spokes, nipples offered and build them myself. Is this possible? Thanks so much! Will

Light-Bicycle 2015/04/09

Hello Will, Thanks for your inquiry. Yes, it is ok to order a rear wheel and front rim as below. RM26C03 (33mm wide 26er rim) hookless: 375 /-15g, USD170/pcs Please find attached rim cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? For rear wheel, we have Novatec & Hope hubs for you. Which do you prefer? What hub axle size do you like for rear? Standard qr or thru axle? For spokes & nipples, it is black Pillar Aero X-TRA 1420 spoke & Pillar PT 734 nipple (black/blue/gold/green/red/silver). Rear wheel price (with Novatec hub): USD332/pcs Rear wheel price (with Hope hub): USD477/pcs Currently, we aslo have new hookless 38mm wide 26er rim & wheels. It is much wider and stronger. Do you like it? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Alessandro 2015/01/30

Hi, it is possible to build a wheel set with the "new 26er 33 wide enduro rims" instead of the offered 30 one? How mutch they would cost with the Hope Hubs 20/142? Best, Alessandro

Light-Bicycle 2015/02/04

Hello Alessandro, Thanks for your inquiry. Yes, we can build the hookless 33mm wide 26er wheelset as following specs. Also hookless is more durable. -Rims: Hookless 33mm wide 26er rims, 375 /-15g. Please find attached rim cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? -Hubs: Hope pro2 evo front 20mm thru axle/ rear 12*142mm thru axle for Shimano 10s. Do you prefer black, red, silver or gunsmoke? -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black, blue, gold, green or red? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Max 2015/01/06

Hello, Would you be able to order a hope single speed hub for a wheel build? Would like a wheelset built with the 38mm DH 26 inch rims.

Light-Bicycle 2015/01/07

Hello Max, Thanks for your inquiry. Yes, we can build the 26er wheelset with Hope rear single speed hub as below. -Rims: Hookless 38mm wide 26er DH rims, 480 /-15g. Please find attached rim cross-section drawing. For rim weave, do you prefer 3k, 12k or UD? Matte or glossy? 32H? -Hubs: Hope pro2 evo hubs. What hub axle size do you like for front & rear? Standard qr or thru axle? Black or red? -Spokes: Black, Pillar Aero X-TRA 1420 aero -Nipples: Pillar PT 734. Do you like black, blue, gold, green or red? Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jhun 2014/12/28

Hello, What is the internal width on the new 26er hookless rim 33mm & 38mm outer width?

Light-Bicycle 2014/12/30

Hello Jhun, Thanks for your inquiry. RM26C03 (33mm outer/ 27mm inner 26er rim) hookless: 375 /-15g, USD170/pcs RM26C05 (38mm outer/ 31.6mm inner 26er rim) hookless: 420 /-15g, USD173/pcs Thanks, Light-bicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 74 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Build Your Recon WHEELSET RM26C02

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Tech

Warranty

In The Box

Gallery
