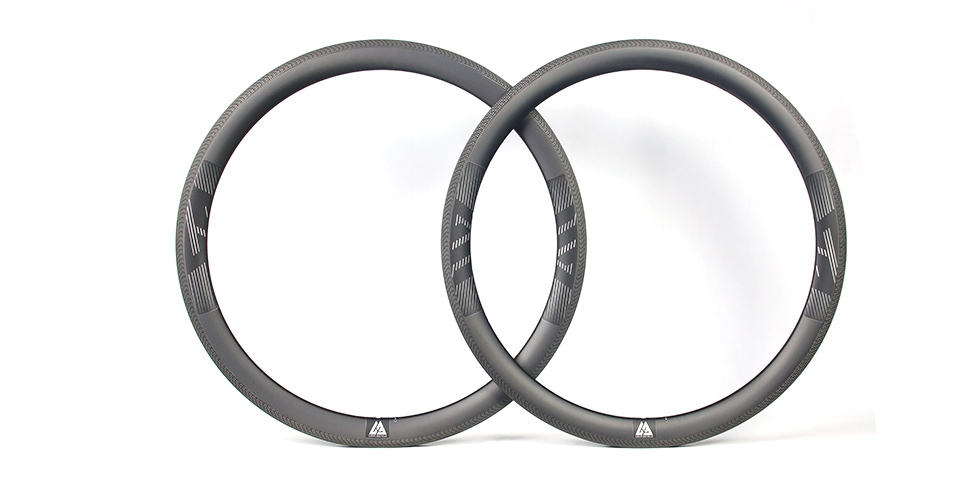

Build Your Falcon RIM AR36

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Bead type This is a required option.

Hook is for road riders who value aerodynamic gains and mostly ride on smoother roads. If you plan to run high pressure, then a hooked/clincher rim is a safe bet.

Hookless is for those who are running wider tires, lower pressures, or are riding on rougher roads. You will benefit from a more comfortable ride due to the higher volume and increased impact protection. Gravel riders and cyclocross riders are often in this situation.

Both hook and hookless rims are built using the same dimensions and materials.
Find more about Hook VS Hookless >>

Hook

Hookless

Brake System This is a required option.

Road-Rim-High-TG-Surface-Grooved-Graphene-Surface

Non Disc - High TG Surface: Rim Brake 700C road rims use an advanced High TG resin system with a layer of graphene to help dissipate heat. The braking power and reliability is significantly improved over a basalt braking surface.

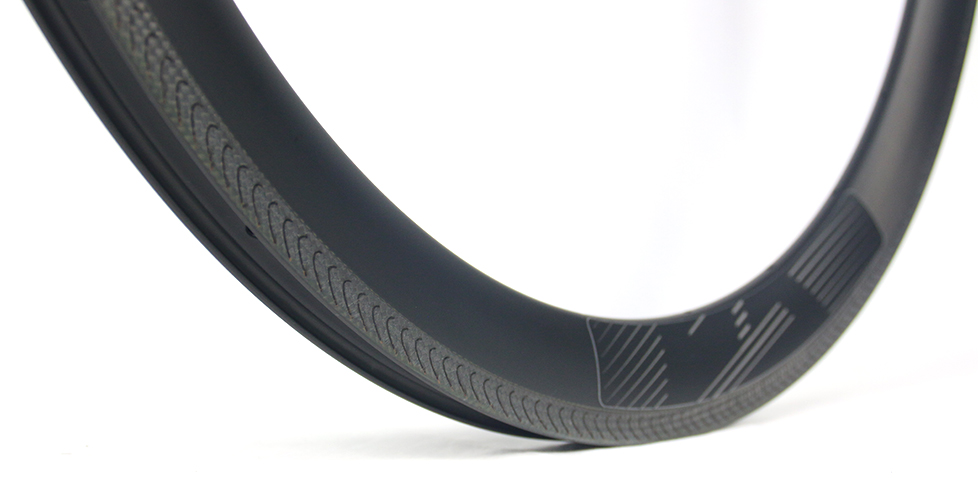

Non Disc - Grooved Graphene Surface: Our new resin system and construction method, combined with the 3k rim track, withstands over 280°C, dissipates heat, and lowers rim temperatures faster in between braking efforts. Gain confidence-inspiring brake performance on the steepest descents and wettest conditions with our matching brake pads. Also, graphene added to the rim brake track allows for greater resistance to overheating with improved heat dissipation and reduced temperature accumulation during heavy braking. The grooved track helps evacuate trapped moisture between pad and rim in wet conditions, and brings more resistance and force at the lever when conditions are dry.

Full Custom: This option (if provided here to choose) offers custom braking track in other various weaves (UD/12K/3K twill etc) with 1-2 weeks LONGER on manufacture and extra $10USD/rim only as a start (with High TG Surface by default). If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

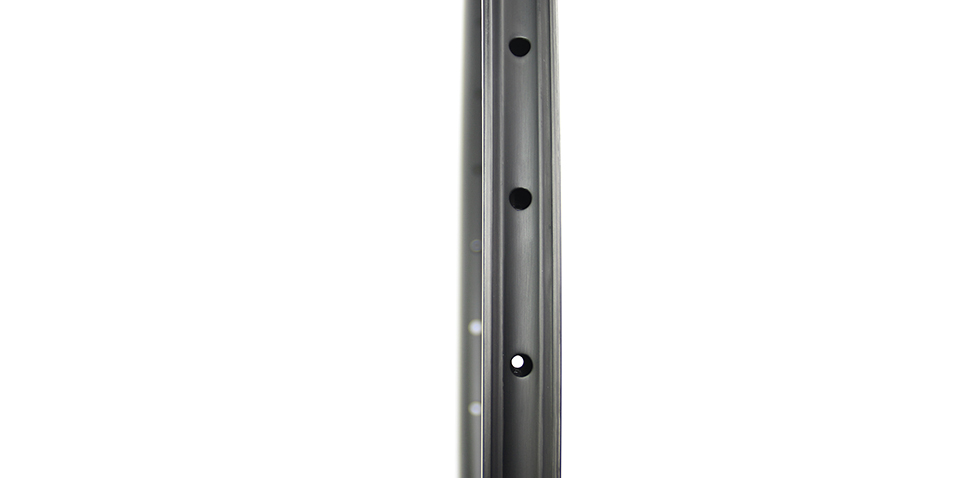

Disc: The disc version does not have a rim brake track and features a unique disc specific layup process. Our new layup is about 10g ~30g lighter by reducing the unnecessary material and utilizing elements of our Flyweight construction method.

Non Disc - High TG Surface

Non Disc - Grooved Graphene Surface USD +30

Full Custom USD +10

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

20H

24H

28H

32H

Full Custom

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Hexa-Comb USD +15

Full Custom USD +15

Center Channel Hole This is a required option.

With Access Holes: This is the traditional method. Spoke access holes are drilled in the center channel to allow the nipples to easily be fed through the rim. Tubeless tape is required to seal the rim.

No Access Holes: No spoke access holes are drilled in the center channel. Feeding the nipples through the rim is more challenging, but it allows for a tubeless setup without the need for tape. This kind of system is known as "road tubeless" and was made popular by Mavic. Some companies still refer to it as "UST style", however, UST is actually a specific interface between the tire and rim which was developed by a partnership between Mavic, Michelin, and Hutchinson.

Currently, rims with 'No Access Holes' do not work with our carbon spokes.

With Access Holes

No Access Holes

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

Road rims use super light waterslide decals (matte colors). The decal is very thin and applied under a clearcoat so they are non-removeable.

Pictures about light-bicycle decal >>

If you want custom graphic, Please email us, we will design for you. There will be extra cost for custom graphic on rims.

Pictures about custom graphics >>

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

White

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Brake Pads This is a required option.

By default, Shimano type is offered only (Contact us if you want Campagnolo type). 4 pads will be included. These high performance brake pads are designed for carbon bike rims only and offer excellent stopping power even in the wet.
Instructions of brake pads

None

Add Shimano-type Brake Pads USD +10

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 440.00g+/-15

Subtotal: USD 154+

PREVIOUS NEXT

RIM SPECS

Rim Model AR36
Material Toray T700 & T800 Premium Carbon Fiber
Size 29”/700C (ETRTO 622mm)
Series FALCON
Intended Use Road/CX/Gravel
Bead Type Clincher
Tubeless Capable Yes
Inner/Outer Width Hook 21mm/28mm, Hookless 22.5mm/28mm
Depth 36mm
ERD 568mm (not including nipple head dimension)
Rim Weight 440+/-15g
Profile Symmetric (0mm)
Max Cyclist Weight (on flat ground) 125kg/ 276lbs
Spoke Hole Angle ±5°
Spoke Tension 100 ~115kgf front, 120~135kgf rear drive side
Max Tire Pressure (with 25C) Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar
Recommended Tire Width 23C~43C

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Rim Model: AR36
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 29”/700C (ETRTO 622mm)
Series: FALCON
Intended Use: Road/CX/Gravel
Bead Type: Clincher
Tubeless Capable: Yes
Inner/Outer Width: Hook 21mm/28mm, Hookless 22.5mm/28mm
Depth: 36mm
ERD: 568mm (not including nipple head dimension)
Rim Weight: 440+/-15g
Profile: Symmetric (0mm)
Max Cyclist Weight (on flat ground): 125kg/ 276lbs
Spoke Hole Angle: ±5°
Spoke Tension: 100 ~115kgf front, 120~135kgf rear drive side
Max Tire Pressure (with 25C): Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar
Recommended Tire Width: 23C~43C

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

The most versatile option in our road lineup, the 36mm can handle cyclocross, road racing, and all-day gravel rides. The mid-depth rim profile has a reassuring stiffness, building confidence through ruts and railing corners. It remains compliant for long distance and weighs at just 440g per rim.

This wide tubeless ready platform has a 21mm internal width, suitable for a wide range of tire choices.
Specs
Rims

Rim Model: AR36

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 29”/700C (ETRTO 622mm)

Series: FALCON

Intended Use: Road/CX/Gravel

Bead Type: Clincher

Tubeless Capable: Yes

Inner/Outer Width: Hook 21mm/28mm, Hookless 22.5mm/28mm

Depth: 36mm

ERD: 568mm (not including nipple head dimension)

Rim Weight: 440+/-15g

Profile: Symmetric (0mm)

Max Cyclist Weight (on flat ground): 125kg/ 276lbs

Spoke Hole Angle: ±5°

Spoke Tension: 100 ~115kgf front, 120~135kgf rear drive side

Max Tire Pressure (with 25C): Hook: 110psi/ 7.58bar, Hookless: 75psi/ 5.17bar

Recommended Tire Width: 23C~43C

Read more for actual road tire width

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

light-bicycle-ar36-rim-brake-carbon-all-road-wheels-700c

Julian : Wheels look amazing! Now I just need to put in some miles.

Japan

David : Turned my CX bike into a gravel beast!! Rene Herse tires are notorious for tubeless but with these rims all it took was some soap and it seated no problem.

Canada

pinarello-gan-rim-brake-bike-on-light-bicycle-ar36-tubeless-wheels

Simon : I love my Falcon AR36 tubeless wheels so much, I just ordered another set. Thank you LB!!!

United States

light-bicycle-ar36-ar46-all-road-custom-carbon-wheelset-rim-brake

Light Bicycle : Rims: AR36-F AR46-R High TG 20H/24H With Drain Holes With Access Holes Matte UD Hubs: White Industries T11 Black 100QR 130 QR J-Bend 48T Shimano Road 11s* Spokes: Sapim CX Sprint (rear drive side) & CX Ray (other sides) Nipples: Sapim brass black external *Contact us to get the same build as we do not list the White Industries hub option nor the mixed rim depth choice online.

Bianchi-road-bike-rim-brake-carbon-wheeled

GDH : My bike feels totally different with these new wheels. White Industries hubs and Light Bicycle Falcon rims. And by different, I mean amazing! I will be recommending Light Bicycle to all my cycling friends.

United States

light-bicycle-ar36-carbon-road-bike-wheels-review

Gary : Love these wheels! Very light and strong, built with sapim cx ray straight pull spokes and Novatec hubs. I use these mainly for winter use, in the wind, and for wet roads... and hill climbs as they are so light, good all-rounders. I use deep section wheels for long flat summer rides. Tubeless tyres fit perfectly, not too tight not too loose. The grooved graphene brake surface works really well in the wet and the dry and make a great sound when braking.. no need to get an expensive heavy disk brake bike with harsh ride quality. I weigh 80kg for reference (sprinter) Great price, excellent quality, perfect, will buy another deeper set soon.

UK(Britain)

light-bicycle-ar36-rim-brake-road-wheelset-dt-swiss-240-exp

Light Bicycle : Rims: AR36 Non-Disc (Grooved Graphene Surface) 20/24H W/ Access Holes Hubs: DT Swiss 240 EXP 100QR 130QR Straightpull 20/24H EXP 36T Shimano Road 11s Spokes: Sapim CX Ray Black straight pull Nipples: Sapim Aluminium Black External Estimated Weight: 1401.64g Price: 1062.2 USD (*the most up-to-date price may vary a bit.)

Light Bicycle : RIMS: AR36 Hook UD Matte Non Disc - High TG Surface 20H/24H External Hole No Drain Holes With Access Holes HUB-F: DT SWISS 350 Black QR / 100mm straight pull HUB-R: DT SWISS 350 Black QR / 130mm straight pull 18T Shimano Road 11S SPOKE: Sapim CX Ray NIPPLE: Sapim Aluminium Black

View More Reviews >>

COMMENTS

Andy 2023/03/17

Hi, which tubeless-rimtape do you recommend for the Falcon RIM AR36 (width, brand)?

LightBicycle 2023/03/17

Hi Andy, Thanks for your inquiry! It is okay to use tubeless rim tape around 25mm. We have rim tape as below. https://www.lightbicycle.com/tubeless-rim-tape.html Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Xavier 2019/06/25

Hello is it possible to get RR36C02 in a rim brake version? I don't see the option to order. Just in disc. Looking for 20h front and 24h rear. Possibly with Gold decals.

LightBicycle 2019/06/26

Hi Xavier, Sure, please check 28mm wide 700C rim price as below. rims: RR36C02, clincher hooked, 28mm wide/ 36mm deep, with Grooved Graphene Surface(non-disc), 20/24H, with gold valve logo, USD184 each We also sent the gold valve logo to your email address. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

John 2019/05/23

Can you tell me where to see detailed photos of the different rim options -3k, 12k, UD, Gloss/matt and logos - I dont really know from your website what they look like unless I am not looking in the right place. Thanks in advance

LightBicycle 2019/05/24

Hi John, We just sent some clear photos of carbon fiber bike rims to your email. Please check. UD is the most popular option. All of our rims are with United Direction fibers besides the top layer. Which finish will you go for? Also attaching the decals for your ref, not sure what color you want to see. The decal on the photo is the most popular color "stealth". Note that it's the waterslide type of graphics. It is applied to the rim under a clear coating. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

CS 2019/05/16

Hi there, which rim is better suited to the tubeless CONTINENTAL GP5000 TL 28MM - the RR36CO2-28mm or RRU35CO2-25mm? Thanks.

LightBicycle 2019/05/16

Hi Sir, Thanks for your inquiry! If you use 28mm tires, RR36C02-28mm wide 700C wide disc rims are better for aerodynamic. Do you like rims only or complete wheelset?The delivery cost is USD33.3 for two rims to Singapore by EMS delivery. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Sebastian 2018/07/06

Hi, will there be a lighter non disc version of these rims, maybe 420g? And will you do (laser) textured brake tracks as seen on Campagnolo or Bontrager wheels for better braking in the wet? Kind regards, Sebastian

LightBicycle 2018/07/06

Hi Sebastin, Lighter version certainly means sacrificed some strength and impact resistance of the rim. Are you sure you want to make a lighter version? If so, I will need to learn more about your riding. Can you kindly provide below info to me so that I can consult with our engineer to see if there's a possibility to make the non-disc version lighter? Yes, we can make texture brake surface on rims. 1. Your weight. 2. What kind of riding you do? 3. Are you an aggressive rider? Thanks, Lightbicycle

Seabstian 2018/07/07

I am 72kg and ride only on the road, with some racing. What is your rider weight limit for the 440g rims? And with - textured - you mean your usual carbon-basalt brake track (picture 1) or something roughened like Bontrager does with its "laser control" (picture 2)? 1: https://forum.tour-magazin.de/attachment.php?attachmentid=620725&d=1502533327 2: https://i1.wp.com/aerogeeks.com/wp-content/uploads/2018/03/BT18_Aeolus_XXX_Wheels_52.jpg

Sebastian 2018/07/08

And do you also offer Carbon-Ti X-hubs SP road?

LightBicycle 2018/07/09

Dear Sebastian, Yes, Carbon Ti hubs are available. Do you want to build a complete wheelset from us using Carbon Ti hubs and RR36C02 flyweight rims (410g+/-15)? If yes, i can send you this road disc wheelset quotation to your email address. Thanks, Lightbicycle

LightBicycle 2018/07/18

Hi Seabastian, The recommended rider weight is under 90kg. As for the brake track. The RR36C02 is using our new high TG resin technology, which can bear the 240-degree heat. The default weave is 3K (same as your first picture shows). You can customize the brake track weave if you like, both standard or CNC carving pattern like the second picture shows. Note that we will charge extra for customized brake track. Let me know if you need a customized the brake track pattern. Better to provide the graphic for the pattern if possible. Thanks, Lightbicycle

Ben 2019/04/12

Can I also get some information on the new road pro rims that people are talking about in the comments? Are these on the website already?

LightBicycle 2019/04/13

Hi Ben, Sure, the new Falcon Pro series road bike rims will launch two model first in May. We can email you the rim profiles if you are interested in. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mark 2019/03/06

Do you any more information/specifications on your new road pro rims yet please? Thanks, Mark

LightBicycle 2019/03/07

Hi Mark, We sent the new road disc rim profile to your email. Please check. It will be available around April. Thanks, Lightbicycle

Martin 2019/03/29

Hi, could I also get a copy of the new road disc rim profile along with the offered finishes. Thanks, Martin

Martin 2019/03/29

Hi, could I also get a copy of the new road disc rim profile along with the offered finishes? Thanks, Martin

LightBicycle 2019/03/30

Hi Martin, Are you asking for the Falcon Pro new road disc rims? or the current 28mm wide road disc rims? It will be made in the paintless finish ()not the same as tradition finish) You can see our MTB photos to get a better idea about how our Pro series looks like. https://www.lightbicycle.com/EN732-asymmetric-rim-profile-carbon-650b-carbon-rims-mtb.html Thanks, Lightbicycle

LightBicycle 2019/04/02

Hi Martin, We send you the new road disc rim profile to your email. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

dave 2019/03/03

Hi, Do you guys build with hubs other than 240s and bitex? I was looking at a tune king/kong or newmen gen 2 centrelock hubs for some 35mm deep rims. Also at 72kgs, is 24/24 ample for road bike dise use? Cheers

LightBicycle 2019/03/04

Hi Dave, Of course, we can build with road disc wheelset with Tune KingKong, Hope, Chris King, Extralite(lightweight), Carbon-Ti(lightweight), Hope, etc. Which would you like? Here're some quotes for your reference. The wheelset is USD1064.4/pair built with RR36C02(36mm deep, 28mm wide) or RRU35c02(25mm wide). Tune king kong, 24H/24H, center lock, 12/100mm front, 12/142mm rear, sapim cx-ray bladed spokes. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Filip 2019/02/06

Hello, the price 154+ is for one rim or pair of rim?

LightBicycle 2019/02/07

Hi Filip, The price USD154 each is for one single rim, not for one pair. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Michael 2019/01/24

Hello, will the road rims also be availiable with the new finish of the Recon Pro MTB rims? Kind regards, Michael.

LightBicycle 2019/01/25

Hi Michael, For Road pro rims, they will be availble around March. It is wide road series. Are you looking for road or road disc rims? Thanks, Lightbicycle

Michael 2019/02/04

Hi, a non disc Road Pro rim with the paintless finish would be interesting. Will they have the same dimensions 28 x 36mm and a lower weight? Kind regards, Michael.

LightBicycle 2019/02/05

Hi Michael, The Pro road series is under development, it will apply the same black Tek as the MTB Recon Pro series. So they will have the same rim surface (organic carbon texture). It will be around 32mm wide road rims, currently, we still haven't got the rim weight information about new road disc series from our engineer team. I will contact you when it is ready. By the way, you email address has some problem. We sent a few emails to you a few days ago, but it looks like it failed. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Paul 2018/09/29

Hello, I'm interested in a pair of RR36C02 in this configuration: Hooked Disc UD Carbon 28 hole Matte finish Would these ship from a North American warehouse or directly from China? If from China, would I have to add the new tariff to the indicated price? Thanks

LightBicycle 2018/09/30

Hi Paul, Dear Paul Do you want the disc or non-disc rim? Our North American warehouse has the popular setup (disc version with UD, matte, 28H) offered. it's currently in stock. But if you want a non-disc version, the rim will be ordered to produce, and ship from China. We can discuss more by mail. Note that the decal would be nonremovable waterslide decal in black if you want graphics on the rims. Thanks Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Marvin 2018/09/18

Is the decal "non-removeable black waterslide graphic" the same as the graphics on the photos? Is it available at China warehouse also?

LightBicycle 2018/09/18

Hi, Marvin 1. Yes, the "non-removable black waterslide graphic" is the one you saw from the photos. We stock the RR36C02 (28mm wide, 36mm deep) road rims with this decal on. You may also notice that it's glossy. Yes, the stocked rims are with glossy decals. 2. This decal is available at China warehouse as well, but not online though. You can contact us by mail or through Intercom for more details. We also offer customized decals in case you are interested. Thanks Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

SilverH 2018/08/05

I've done a few rides on these now. RR36C02 with Dt240 disc fitted with Conti Force and Attack tyres 25/23. Happy and the profile with the 23 on the front is nice. The transition from tyre to rim is a nice shape.

LightBicycle 2018/08/06

Hi Haydn, Glad to see your comment about your road disc wheels. Will you be kind enough to share some pictures for your bike? I would love to see how they turn out on your bike. And put the picture on our website gallery if it's ok. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Mike 2018/07/31

Do you offer these rims with black graphics (the stealth color looks more grey)? Thanks Mike

LightBicycle 2018/08/01

Hi Mike, For your information, the Pantone color code for the stealth decal is Cool Gray 10 C. You can go to the Pantone website to see the exact color. Attaching with a rim with stealth decals on for your ref. Is this the color you are looking for? We also offer customized decal service for our customer. Let me know if you want a customized color. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Samuel 2018/07/22

Which nipples do you recommend for these rims? Are washers required?

LightBicycle 2018/07/23

Hi Samuel, Normally, we use sapim proyax secure lock nipples for our bike wheels. We do not use nipple washers here for building wheels. The spoke holes’ wall strength is strong enough. But if you insist to use nipple washers, it is okay if you do not mind weight adding. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Robert 2018/05/18

Hello, do you also plan a rim with 30mm outside and 21mm inside? The aerodynamic optimum is a rim that is 5 to 10 percent wider than the tire. A Continental 4000S II 25mm tire is 28.5mm wide on a rim with 21mm inside, so 30mm outside would be perfect. With 23mm inside, the tire will be even wider, so that would not match. Thanks!

LightBicycle 2018/05/18

Hi Robert, Most customers like to ride wider tires. So, our RR56C02 rim is 30mm wide and 56mm deep. If you like, we can send you the rim profile. Thanks, Lightbicycle

Robert 2018/05/19

Hello, maybe you could do the 30mm wide rim hookless with 23mm inside (for wider tires that will be no problem) and a hooked version with 21mm inside for people who want to run 25mm tires for best aerodynamics and crosswind stability. Thanks!

LightBicycle 2018/05/31

Hi Robert, The new 56mm rim is compatible with 25~50mm wide tires. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 41 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Falcon RIM AR36

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
