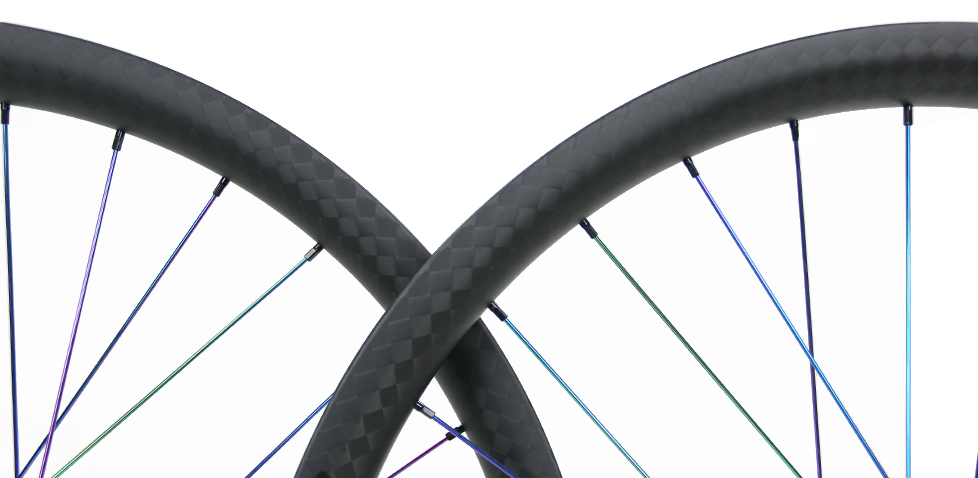

Light-Bicycle-AM733-650b-carbon-wheel-12k-weave

AM733-EN733-650b-carbon-mountain-bike-wheelset-clincher-tubeless-ready

Build Your Recon WHEELSET AM733/EN733

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy rim only

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Speed-Hub V1.0/V2.0	335g	24-V1.0/ 36-V2.0	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing-V1.0/ Ceramic-V2.0	One	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 180

DT SWISS 240 EXP

DT SWISS 350

Industry Nine Hydra

Industry Nine 1/1

Chris King BOOST

Bitex BX212F / BX212R

Hope Pro 5

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

15 / 100mm

15 / 110mm BOOST

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, skewers are only offered with QR hubs.

12 / 142mm

12 / 148mm BOOST

12 / 157mm Super BOOST

Freehub Body This is a required option.

1. Shimano Road 11S works with 11/12-speed cassette directly or 8/9/10-speed mountain cassette with a spacer(s) .
2. Shimano MTB 10/11S works with 8/9-speed directly or 10-speed with a spacer or 11-speed road cassette if one of the inner cogs removed.
3. Campagnolo (Campy) 11S works with 9/10/11/12-speed Campy cassette with no spacers required.
4. Sram XDR could run XDR (road) cassette inherently and is compatible to run mountain bike XD cassette with a 1.85mm spacer.
5. Shimano Micro Spline (MS) works with 12-speed MS cassette only.

Shimano MTB 10/11S

Sram XD

Shimano MTB 10/11S Alloy

Sram XD Alloy

Shimano Micro Spline

Shimano Micro Spline Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-Bolt is the more common traditional option.
Centerlock uses a unique interface and it is also convertable to 6-bolt. If you need the conversion kit, please contact us. Our hubs are provided without rotor lockrings by default.

6-bolt

Center lock

Hub Color This is a required option.

Black

Matte Black

Matte Turquoise

Oil Slick

Orange

Red

Turquoise

Front Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

Full Custom: This option (if provided here to choose) offers custom drilling for any other hole counts or special drilling (e.g G3/ 2:1 etc), most of which are at no extra charge. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

28H

32H

Rear Holes Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default.

28H

32H

Ratchet This is a required option.

DT Swiss hubs use star ratchets and are available in 4 different models with varying points of engagement.

18T - Deepest teeth, slowest engagement, least amount of maintenance, suitable for powerful riders.

36T - Happy medium, doubles the engagement points.

54T - Super fast engagement, but shallow teeth require more careful re-greasing and the thru-axle should be checked every ride.

24T - Made out of hardened steel as e-bike specific.

EXP 36 - With only a single spring, making the hubs faster and lighter. More precise contact makes a longer lifespan.

EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

108T

27T

36T

54T

690T

72T

90T

EXP 36

EXP 54

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Bladed)	Aero	3.2-1.5/3-3.2	2.65g (SP, 260mm); 2.8g (J-bend,260mm)	N/A	Light Aero/Stiff	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Butted)	Aero	2.3 - 2/2.3-2.3	2.3g (SP, 260mm)	N/A	Light/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Sapim D-Light – The best all-around and most popular spoke for carbon wheels. Lightweight but incredibly strong.
Sapim Race – Our strongest and stiffest spoke. These spokes are suitable for heavy or extremely aggressive riders who need a stiffer wheel.
Sapim CX-Ray – The lightest spoke in our lineup is still quite strong due to the elasticity and amazing fatigue life.
DT Competition Race - All Mountain and XC spoke used by the Chinese location as a substitue for the D-Light (depending on availability)
Pillar PSR X-TRA 1420 - An inexpensive bladed spoke, great for road and cyclocross riding.
Pillar Wing 20 - Pillar patented highest level of aerodynamic bladed spoke reducing potential weak spots and twisting during tensioning. Currently, they are offered in oil slick color only with increased wear and corrosion resistance.
Sapim CX Sprint-Rear drive side/ CX Ray-Other sides - This customized combo increases the rear drive side power transmition efficiency significantly while grabs superior light-weight and aero performance.
Oil slick J-bend - They are made by a qualified manufacturer in Taiwan with custom design by Light Bicycle. They are J-bend only so do not order these spokes for SP hubs you configured in the previous step.
LB Flyweight Carbon Regular Edition >> -It maximizes wheel stiffness while keeping things more aero, designed to unlimit your hub choice making your wheels more customizable than ever.
LB Flyweight Carbon Special Edition >> - It maximizes wheel stiffness while keeping things light, designed to pair seamlessly with our Speed Hubs through the use of specially designed aluminium nipples.
Berd PolyLight >> - It is constructed from an advanced polymer called ultra high molecular weight polyethylene (UHMWPE) and are widely considered to be the lightest bicycle spoke option in the world.

DT Swiss Competition Race

Sapim CX Ray

Oil slick J-bend

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	Norh America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China
Light Bicycle	N/A	Brass	Oil slick	14mm	China
Light Bicycle	Aluminium Black (for carbon spokes)	Alloy	Black	8.9mm	China

Please select Aluminium Black (for carbon spokes) nipples when you have chosen LB Flyweight Carbon spokes.

Aluminium Black

Aluminium Red

Brass Oil slick

Brass Black

Version This is a required option.

All Mountain (AM) - This version is mid-weight and suitable for all mountain and trail riding.

Enduro (EN) - This version comes out with additional reinforcement (Heavy Duty) and is the right fit for more aggressive riders pedaling on enduro.

AM733

EN733 (For Enduro/ E-bike) USD +5

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Full Custom

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Full Custom USD +15

Drain Hole This is a required option.

The two small drain holes located 90° to the valve hole effectively help evacuate both the water trapped inside the rim and the air leaking into the rim chamber caused by nonperfect tubeless tape sealing handwork that may risk rim explosure in an aggressive tire inflating.

It is the small reinforced layer prelaminated on the area where the drain hole is drilled later that makes the rim strength fairly ensured without any compromise of weight added.

Riders who ride in wet areas are suggested to order rims with drain holes.
More info about holes >>

With Drain Holes

No Drain Holes

Decal This is a required option.

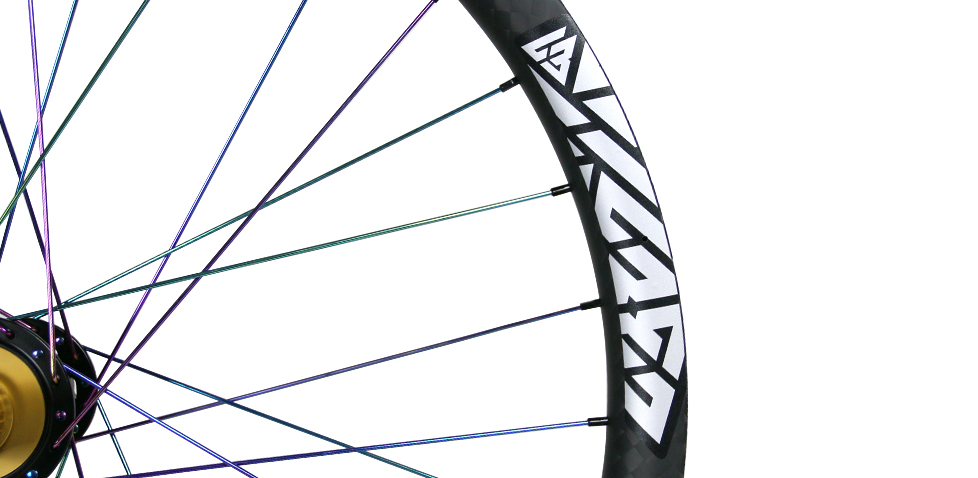

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Silver

Blue

Green

Magenta

Orange

Red

Yellow

Blank (No decal)

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.
Information of tubeless rim tape

Apply Tubeless Tape: In Light Bicycle, a proprietary taping aid works with our wheel builders to guarantee that a solid taping craft at industrial-level is well implemented in order for you to ride carefree tubeless at any conditions.

You do NOT have to use any tubeless tape to run tubeless if you have chosen "No Access Holes" on the rim center channel.

None

Add Tubeless Tape USD +6 each

Apply Tubeless Tape USD +6 each

Send Photos for Shipping Confirmation This is a required option.

Send Photos for Shipping Confirmation could be offered at NO extra charge so that you could have your tailored products viewed/inspected before shipping and the photos shared with your friends in advance.

It takes about 1~3 business days added to the lead time subject to the orders queuing status.

If you have any special requirement on the photos, such as weight measurement, please leave a note at checkout.

Yes (1-3 days longer)

No ( I do not need photos)

Recon Pro orders start shipping in October.

- + Pair

Hub Brand This is a required option.

Model	Weight	POE	Cost	Reliability	Quality	Unique Feature	Color Options	Warehouse Location	Website
Novatec	287g	27	Low	Good	Good	Inexpensive	Three	China	NOVATEC
Bitex	258g	24	Low	Good	Good	Light	Two	China	BITEX
DT 350	374g	18/36/54	Low	Better	Good	Quiet and reliable (18t option)	One	China	DT SWISS
DT 240S	317g	18/36/54	Medium	Best	Best	Quiet and reliable (18t option)	One	China/N.A.	DT SWISS
DT 240 EXP	299g	EXP 36	Medium	Best	Best	Quiet and reliable (EXP 36 )	One	China/N.A.	DT SWISS
DT 180	290g	EXP 36	High	Best	Best	Super Light, EXP 36	One	China/N.A.	DT SWISS
Chris King	326g	45	High	Best	Best	Rebuildable bearings	Nine	China	CHRIS KING
Industry Nine	327g	60	Medium	Better	Best	Loud, engagement	Eleven	China/N.A.	INDUSTRY NINE
Onyx	434g	Infinite	High	Better	Best	Silent, sprag clutch	Eighteen+ (Custom Available)	North America	ONYX
Carbon-Ti	270g	56	High	Better	Best	Extreme Light	Nine	China	Caron-Ti
ARC	332g	48	Low	Better	Good	Economic and reliable	One	China	ARC
Chosen	260g	24	Low	Better	Good	Economic and reliable	One	China	Chosen
Light Bicycle Speed-Hub V1.0/V2.0	335g	24-V1.0/ 36-V2.0	Low	Better	Good	Proprietary for Carbon Spokes Steel Bearing-V1.0/ Ceramic-V2.0	One	China	Light Bicycle

Besides hubs listed to choose online directly, you could also have more others built to the wheels on your custom order by contacting us.
See more about Light Bicycle's FULL HUB OPTIONS

* POE = Points of Engagement

* DT hubs come standard with an 18t star ratchet but are upgradeable to 36 or 54t.

* Average weight will vary slightly depending on axle and freehub combination.

DT SWISS 240 EXP

DT SWISS 350

Industry Nine Hydra

Industry Nine 1/1

Chris King BOOST

Onyx Vesper

Hope Pro 5

Front Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

15 / 100mm

15 / 100mm Torque

15 / 110mm BOOST

15 / 110mm RS-1

15 / 110mm Torque

20 / 110mm BOOST DH

20 / 110mm Old DH

Lefty 2.0 Supermax

QR / 100mm

Rear Axle This is a required option.

If the size you need is not listed, please contact us and we'll reach out to you to confirm your order.

By default, no Quick Release skewers are offered with hubs.

12 / 142mm

12 / 148mm BOOST

12 / 150mm

12 / 157mm Super BOOST

QR / 135mm

Single Speed

Freehub Body This is a required option.

Shimano MTB 10/11S

Sram XD

Shimano MTB 10/11S Alloy

Sram XD Alloy

Shimano Micro Spline

Shimano Micro Spline Alloy

Spoke Head This is a required option.

J-bend version: use J-bend hubs and spokes
Straight pull version: use straight pull hubs and spokes

straight pull

J-bend

Brake System This is a required option.

6-bolt

Center lock

Hub Color This is a required option.

If you don't see the color option you're looking for, please choose another option listed online and proceed to checkout, and leave us a note with your preference in the checkout notes or by emailing sales@lightbicycle.com once ordered.

Powdercoat Options: Black Chrome, Blue Baby, Blue Candy, Gold, Green Antifreeze, Green Fluorescent, Green Kawasaki, Black Aura, Orange Fluorescent, Pink Fluorescent, Purple Candy, Red Candy, White Frost, Yellow Cardinal, Yellow Fluorescent.

Anodized-Black

Anodized-Black Matte

Anodized-Blue

Anodized-Green

Anodized-Orange

Anodized-Purple

Anodized-Red

Anodized-Silver

Black

Blue

Gold

Green

Lime

Matte Black

Matte Turquoise

Orange

Pink

Purple

Red

Silver

Turquoise

Front Holes Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

28H

32H

Rear Holes Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

28H

32H

Ratchet This is a required option.

Our North America shop offers DT Swiss 350 SL hubs with star ratchet.

36T - The standard offer of the SL version.
54T - Faster engagement, but shallow teeth require more careful re-greasing.

DT Swiss 180 and 240 EXP take EXP ratchets.
EXP 36 - The more precise contact makes a longer lifespan.
EXP 54 - Upgraded from EXP 36 to gain incredibly faster engagement.

Industry Nine and Chris King hubs as well as more others apply pawl system while Onyx goes with dead-silent Sprag Clutch engagement.

108T

36T

54T

690T

72T

90T

EXP 36

EXP 54

Sprag Clutch

Spoke This is a required option.

Brand	Model	Type	Thread Diameter (mm)	Weight(g)	Gauge	Riding Style	Available(Warehouse Location)
Sapim	Race	Double Butted	2.0 - 1.8 - 2.0	5.7g (260mm)	14G	Heavy Duty	North America, China
Sapim	D-Light	Double Butted	2.0 - 1.65 - 2.0	4.8g (260mm)	14G	Versatile	North America, China
Sapim	CX-Ray	Aero	2.0 - 0.9/2.2 - 2.0	4.4g (260mm)	N/A	Light Aero	North America, China
Sapim	CX-Sprint	Aero	2.0 - 1.25/2.25 - 2.0	5.2g (260mm)	N/A	Light Aero	China
DT SWISS	Competition Race	Double Butted	2.0 - 1.6 - 2.0	4.8g (260mm)	14G	Versatile	China
Pillar	PSR X-TRA 1420	Aero	2.0 - 0.95/2.2 - 2.0	4.4g (260mm)	N/A	Inexpensive Aero	China
Pillar	Wing 20	Aero	2.2 - 1.2/2.0 - 2.0	4.3g (260mm)	N/A	Light Aero	China
Light Bicycle	Oil slick J-bend	Single butted	2.0 - 2.0 - 1.95	6.7g (260mm)	14G	Cool color	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Bladed)	Aero	3.2-1.5/3-3.2	2.65g (SP, 260mm); 2.8g (J-bend,260mm)	N/A	Light Aero/Stiff	China
Light Bicycle	LB Flyweight Carbon (Regular Edition-Butted)	Aero	2.3 - 2/2.3-2.3	2.3g (SP, 260mm)	N/A	Light/Stiff	China
Berd	PolyLight	Rope-like	2.0-1.8	2.5g (260mm)	N/A	Extreme Light	North America

Sapim CX Ray

Sapim D-Light

Sapim Race

Nipple This is a required option.

Nipple Brand	Model	Material	Color	Length	Available (Warehouse Location)
Sapim	Double Square Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange	16mm	North America
Sapim	Polyax/ Polyax Secure Lock	Alloy	Black, Red, Green, Blue, Gold, Lime, Purple, Orange,Silver	14mm	China
Sapim	Polyax Secure Lock	Brass	Black	14mm	China/N.A.
DT Swiss	DT SQUORX (PRO HEAD PRO LOCK)	Alloy	Black, Red	15mm	China
DT Swiss	Standard PRO LOCK	Brass	Black	14mm	China

Aluminium Black

Aluminium Silver

Aluminium Red

Aluminium Blue

Aluminium Gold

Aluminium Green

Aluminium Lime

Aluminium Orange

Aluminium Purple

Brass Black

Version This is a required option.

All Mountain (AM) - This version is mid-weight and suitable for all mountain and trail riding.

Enduro (EN) - This version comes out with additional reinforcement and is the right fit for more aggressive riders pedaling on enduro.

AM733

EN733 (For Enduro/ E-bike) USD +5

Finish This is a required option.

Matte

Weave This is a required option.

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Silver

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

None

Add Valve Stem USD +7 each

Tubeless Tape This is a required option.

Add Tubeless Tape: A roll of 10-yard-long tape is provided separately as parts to do the favor for those who treasure the dirt in the hand and are passionate in DIY stuff.

Apply Tubeless Tape: The tubeless tape with high tensile strength is tightly installed on the wheel(s) at industrial-level for you to ride carefree tubeless at any conditions.

None

Add Tubeless Tape USD +8 each

Apply Tubeless Tape USD +8 each

Front Vittoria Tire This is a required option.

Please note that the tires will NOT be pre-installed on the wheels.

Feel free to contact us (support@lightbicycle.com) if you want to special order other Vittoria tires.

None

Mazza,27.5 x 2.4inch,2-PLY,Black,1200g USD +79.99

Mazza,27.5 x 2.6inch,2-PLY,Black,1300g USD +79.99

Rear Vittoria Tire This is a required option.

Please note that the tires will NOT be pre-installed on the wheels.

Feel free to contact us (support@lightbicycle.com) if you want to special order other Vittoria tires.

None

Mazza,27.5 x 2.4inch,2-PLY,Black,1200g USD +79.99

Mazza,27.5 x 2.6inch,2-PLY,Black,1300g USD +79.99

Recon Pro orders start shipping in October.

- + Pair

Piece Weight: 1462.00g+/-3%

Subtotal: USD 630+

Piece Weight: 920.00g+/-3%

Subtotal: USD 416+

PREVIOUS NEXT

WHEELSET SPECS

RIMS

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model AM733/EN733
Material Toray T700 & T800 Premium Carbon Fiber
Size 27.5"/650B (ETRTO 584mm)
Series RECON
Intended Use All Mountain/ Enduro
Bead Type Hookless
Tubeless Capable Yes
Inner/Outer Width 33.6mm/40mm
Depth 31.5mm
ERD 537mm (not including nipple head dimension)
Rim Weight AM 460+/-15g, EN 510+/-15g
Profile Asymmetric (2.7mm)
Max Cyclist Weight (on flat ground) 140kg/ 309lbs
Spoke Hole Angle ±5°
Spoke Tension 115~130kgf front disc side and rear drive side
Max Tire Pressure 40psi/ 2.8bar
Recommended Tire Width 2.4" ~ 3.1"

HUBS

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5, Onyx Vesper
Front Axle Size 15 / 100mm, 15 / 110mm BOOST, 15 / 100mm Torque, 15 / 110mm RS-1, 15 / 110mm Torque, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm
Rear Axle Size 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST, 12 / 150mm, QR / 135mm, Single Speed
Driver Body Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
Hole 28H, 32H

OTHER PARTS

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend, Sapim D-Light, Sapim Race
Nipples Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

Built to handle the most technical trails on the mountain, the AM733’s 33mm internal width is a perfect fit for the new breed of ultra wide 2.4-2.8” tires. You’ll appreciate the confidence boost with the massive air volume, impressive traction, and bead seat bumps to keep those big tires in order.

Available in two layup styles, the standard layup is suitable for most riders, but if you are over 200 pounds or tend to ride your equipment really hard, consider the extra layer of 3k carbon in the EN version. Not only does this support G-Out forces, but it also makes the EN733 incredibly stiff and perfect for the hardest charging of riders.

E-bike Approved! This wheel's Enduro Version is designed to be compatible with mid-drive e-bikes.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: AM733/EN733
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 27.5"/650B (ETRTO 584mm)
Series: RECON
Intended Use: All Mountain/ Enduro
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 33.6mm/40mm
Depth: 31.5mm
ERD: 537mm (not including nipple head dimension)
Rim Weight: AM 460+/-15g, EN 510+/-15g
Profile: Asymmetric (2.7mm)
Max Cyclist Weight (on flat ground): 140kg/ 309lbs
Spoke Hole Angle: ±5°
Spoke Tension: 115~130kgf front disc side and rear drive side
Max Tire Pressure: 40psi/ 2.8bar
Recommended Tire Width: 2.4" ~ 3.1"

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5, Onyx Vesper
Front Axle Size: 15 / 100mm, 15 / 110mm BOOST, 15 / 100mm Torque, 15 / 110mm RS-1, 15 / 110mm Torque, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm
Rear Axle Size: 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST, 12 / 150mm, QR / 135mm, Single Speed
Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy
Hole: 28H, 32H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend, Sapim D-Light, Sapim Race
Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple

Please carefully inspect your package when unboxing it and contact us immediately if it is damaged or if anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste using digital docs.

Download user guides >>

Overview

Built to handle the most technical trails on the mountain, the AM733’s 33mm internal width is a perfect fit for the new breed of ultra wide 2.4-2.8” tires. You’ll appreciate the confidence boost with the massive air volume, impressive traction, and bead seat bumps to keep those big tires in order.

Available in two layup styles, the standard layup is suitable for most riders, but if you are over 200 pounds or tend to ride your equipment really hard, consider the extra layer of 3k carbon in the EN version. Not only does this support G-Out forces, but it also makes the EN733 incredibly stiff and perfect for the hardest charging of riders.

E-bike Approved! This wheel's Enduro Version is designed to be compatible with mid-drive e-bikes.
Specs
Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.

Model: AM733/EN733

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 27.5"/650B (ETRTO 584mm)

Series: RECON

Intended Use: All Mountain/ Enduro

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 33.6mm/40mm

Depth: 31.5mm

ERD: 537mm (not including nipple head dimension)

Rim Weight: AM 460+/-15g, EN 510+/-15g

Profile: Asymmetric (2.7mm)

Max Cyclist Weight (on flat ground): 140kg/ 309lbs

Spoke Hole Angle: ±5°

Spoke Tension: 115~130kgf front disc side and rear drive side

Max Tire Pressure: 40psi/ 2.8bar

Recommended Tire Width: 2.4" ~ 3.1"

Hubs

We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).

Model: DT SWISS 180, DT SWISS 240 EXP, DT SWISS 350, Industry Nine Hydra, Industry Nine 1/1, Chris King BOOST, Bitex BX212F / BX212R, Hope Pro 5, Onyx Vesper

Front Axle Size: 15 / 100mm, 15 / 110mm BOOST, 15 / 100mm Torque, 15 / 110mm RS-1, 15 / 110mm Torque, 20 / 110mm BOOST DH, 20 / 110mm Old DH, Lefty 2.0 Supermax, QR / 100mm

Rear Axle Size: 12 / 142mm, 12 / 148mm BOOST, 12 / 157mm Super BOOST, 12 / 150mm, QR / 135mm, Single Speed

Driver Body: Shimano MTB 10/11S, Sram XD, Shimano MTB 10/11S Alloy, Sram XD Alloy, Shimano Micro Spline, Shimano Micro Spline Alloy

Hole: 28H, 32H

Other Parts

Leave a note at checkout or contact us if you want spare spokes or nipples.

Spokes: DT Swiss Competition Race, Sapim CX Ray, Oil slick J-bend, Sapim D-Light, Sapim Race

Nipples: Aluminium Black, Aluminium Red, Brass Oil slick, Brass Black, Aluminium Silver, Aluminium Blue, Aluminium Gold, Aluminium Green, Aluminium Lime, Aluminium Orange, Aluminium Purple
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Tom : Perfect wheels for my aggressive custom tjd pinion equipped hardtail, awesome tracking on tech and off camber. No pinch flats with this wheelset either. I ride everything on this bike, big mountains, bikepacking, steep tech.

UK(Britain)

carbon-mullet-mtb-wheelset-light-bicycle-mullet-33

Light Bicycle : Rims: EN933 29er-F EN733 27.5-R Glossy Braided UD 32H With Access Holes Hubs: Chris King ISO AB ISO B 3D Violet 15/110mm 12/148mm Boost J-bend 6-bolt 72T Sram XD Spokes: Provided by the customer Sticker: Purple

Luke : I've been riding Light Bicycle RR46C02 (now called AR46) rims on my Eriksen custom road/gravel bike for over 4 years now and love them. They built up nicely and have never needed truing since I built them. On dirt, I've been riding the EN733 (now Recon EN733) rims on my Ibis Mojo 3 for 4 years and have had zero issues. Rock solid and great customer service, I love the stealth look and all the customization that Light Bicycle offers. I'm looking forward to my next set of rims when I go to hookless road and to 29er mountain!

United States

propain-enduro-mtb-on-light-bicycle-650b-en733-wheels

N.v : EN 733 Excellent rims! Used them mainly for riding park, they are stiff and the wheel remains true for a long time. I have had them for almost two years now and I would definitely buy from light bicycle again.

Germany

Santa-Cruz-Nomad-on-Light-Bicycle-EN733-27.5er-wheels

Andi : Very well-finished rims. Build them up by myself with my own components for my Santacruz Nomad.

Germany

EN733-650b-ud-matte-dt-swiss-240s-hub-carbon-enduro-wheel-rear

Light Bicycle : RIMS: EN733 (RM650BC20) 650B 32H HUB-F: DT SWISS 240S 15 / 110mm BOOST J-bend 6-bolt SPOKES: DT Swiss Competition Race NIPPLES: Sapim Brass Black Decals: Stealth Weight: 812.89 grams

trek-mountain-bike-by-river-under-blue-sky

Joe : SPECS: AM733 (RM650BC20) rims Hope Pro 4 hubs Schwalbe Rocket Ron tires

United States

650b-am733-mtb-carbon-wheelset-ud-matte-onyx-hub

Light Bicycle : Rims: AM733 650b recon 32/32H Hubs: Onyx J-bend Spokes: Sapim CX Ray Nipples: Sapim Aluminium Black

View More Reviews >>

COMMENTS

Philip 2019/01/31

How do I order a single replacement front wheel? I want to match my rear wheel but your website seems to only allow me to order a complete set of front & rear. Thank you.

LightBicycle 2019/02/01

Hi Philip, Purchase a single bike wheel is currently not available online, however, I can create the invoice for you. What wheel configuration are you looking for? Pls tell me the detailed specs and I will quote and create invoice accordingly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Lule 2018/07/02

Do you do industry 9 hubs with your wheelsets?

LightBicycle 2018/07/02

Hi Lule, Yes, we can build a wheelset with I9 hubs. You can order it by mail. What hub size do you prefer for this wheelset? Then we can quote accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Brandon 2018/04/22

Why is the equivalent wheel build of the B13 wheelset cheaper than the AM733? How do they really differ?

LightBicycle 2018/04/23

Hi Brandon, The essential difference between those two model is the rim profile. AM733 is with asymmetrical rim profile while RM650BC13 is symmetric. Asymmetrical rim profile, it provides better spoke tension balance between drive-side and non-drive side. It will make rims/wheels more durable, and it provides 2 years warranty service. So asymmetrical rims/wheels are with much higher price You can choose the rims building on your own condition. Or if you like, I can make some suggestion to you. But I will need some info from you. 1. your weight 2. tire width 3. what kind of riding you do? aggressive or not? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Inax 2018/03/28

Is possible the nipples in orange? Regards, Inax

LightBicycle 2018/03/29

Hi Inax, Yes, we have Sapim's nipple in orange. Do you want to order a wheelset? What specs do you want? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Stefan 2017/11/08

Thanks for your reply. My tire width varies from 2.4 - 2.5. Regards. Stefan

LightBicycle 2017/11/08

Hi Stefan, Thanks for your reply! We would recommend you our AM728 and WM650BC05 wheelset. They are suitable for the 2.4"~2.5" tire and strong enough for your weight. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Stefan 2017/11/04

Please can you suggest what wheels for a 2016 Santa Cruz nomad 3 for trail and enduro riding. I am 185 lb. 110-15 front and 142- 12 back. Am looking for a light weight build and wondering what hub and spoke build you would recommend. Many thanks.

LightBicycle 2017/11/06

Hi Stefan, We recommend our WM650BC05 wheelset and WM650BC13 wheelset to you. We recommend DT SWISS 240s hub and Sapim CX-RAY spoke for you, which is lighter and stronger. What do you think about that? May I know your tire width? Then we can check which wheelset is better for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Weston 2017/08/10

Is it possible to build these with i9 hubs?

LightBicycle 2017/08/11

Hi Weston, Thanks for your massage! Currently, we have DT Swiss 240S/350 and Hope hubs in our China wheel building lines, no I9 hubs available. If you like wheels with I9 hubs, you can place an order on the our North America website under https://us.lightbicycle.com/(please find attached pictures for your reference). The wheelset will be built and shipped through our US office. Does it work for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

jason 2017/03/12

Can I get the hope pro 4 in Silver

LightBicycle 2017/03/13

Hi Jason, Sure, it is okay to get Hope pro 4 hubs in silver. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Elmer 2017/03/04

Hi LB, Im 180 lbs and does drops and not so crazy big jumps what do you recommend? I got 2017 pivot mach 6 carbon 27.5 boost rear axle 12x148 and 15/110 front not sure if its boost or not, It would be great if i could purchase a lime green hub color and decals and UD matte rims. Pls reply asap. TY

LightBicycle 2017/03/06

Hello Elmer, Thanks for your inquiry. I saw your other message on our website only. According to your info, I think our 34mm wide 650B enduro asymmetric wheels are strong enough for your riding. For your front hub, I'm not sure if that is with 15*100mm thru axle or 15*110mm boost. Please measure your fork spacing to confirm the correct axle size, thank you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Steve 2017/01/24

Hi, what are the differences between the 40mm and 34mm rim widths please? The 40mm seems to be lighter, but does that make it weaker. Is the 40mm version a later model? Cheers, Steve

LightBicycle 2017/02/09

Hello Steve, Sorry for the late reply. We were on Chinese New Year vacation in the last 10 days and just get back to office today. The 650B 40mm width rim is much wider, deeper and stronger. Also, the rim weight is much heavier than 34mm width. Yes, the 40mm width is newer, but both rims are with the same design. Rims profile attached for your reference. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ben 2017/01/25

Hi LB, Quick question, is the currency in US or CAD dollars? Ben

LightBicycle 2017/02/06

Hello Ben, Sorry for the late reply. We were on Chinese New Year vacation in the last 10 days and just get back to office today. Our web prices are all in US dollar. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ryan 2017/01/08

Hello- I want to purchase 2 pieces of the EN733 rims UD Matte, 32H and ship to DongGuan, China. Is there any other type of payment other than paypal/credit card? I tried to purchase last week using my overseas credit card from but it will not allow the purchase to be shipped domestically in China.. Please help.

LightBicycle 2017/01/09

Hello Ryan, Thanks for your inquiry. EN733 (40mm width asymmetric): 510 /-15g, $279/pcs Delivery cost: $13 for two rims to DongGuan China by SF-express. All pricing in USD. I can create the purchase link for you, then you can use the paypal/credit card. Does that work for you? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Gabor 2017/01/02

Hi, I'm interested in a wheelset with the DT Swiss 240s hubs with straight pull spokes. I have a boost rear hub and a 100/15 front hub. I cannot choose straight pull spokes for that combination?! Is that not possible at all? Thank you, Gabor

LightBicycle 2017/01/03

Hello Gabor, Thanks for your inquiry. We can get one set of DT 240S straight pull center lock hubs front 15*100mm/ rear 12*148mm boost. Does that work for you? If you are ready to order, we can create the invoice accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

henr 2016/12/15

can i get these wheels with the new graphics?

LightBicycle 2016/12/17

Hello Henr, Thanks for your inquiry. Yes, we are able to apply the new stickers on this wheelset. Picture attached for your reference. Which color do you prefer? Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

john 2016/12/08

hello I need this product

LightBicycle 2016/12/09

Hello John, Thanks for your inquiry. We can build the EN733 wheels for you. What hubs and spokes do you prefer for the wheels? Then we can quote accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 21 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

We use cookies for a better experience. Learn more.

Customize

Your Cookie Preferences

We use cookies to improve your experience on this website. You may choose which types of cookies to allow and change your preferences at any time. Disabling cookies may impact your experience on this website. You can learn more by viewing our Cookie Policy.

Essential Cookies

Cookies required to enable basic website functionality.
Performance Cookies

Cookies used to understand how the website is being used.
Preference Cookies

Cookies that are used to enhance the functionality of the website.
Advertising Cookies

Cookies used to deliver advertising that is more relevant to your interests.

Aceept All Cookies

Save Preferences

Reject All Cookies

Save Preferences

Reject All Cookies

Accept All Cookies

Build Your Recon WHEELSET AM733/EN733

Overview

Specs

Tech

Warranty

In The Box

Rims

Hubs

Other Parts

Overview

Specs

Rims

Hubs

Other Parts

Tech

Warranty

In The Box

Gallery
