Build Your Drift Pro WHEELSET FS680
All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.
WHEELSET SPECS
RIMS
Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.
- Model FS680
- Material Toray T700 & T800 Premium Carbon Fiber
- Size 26" (ETRTO 559mm)
- Series DRIFT PRO
- Intended Use Sand, Snow, Singletrack
- Bead Type Hookless
- Tubeless Capable Yes
- Inner/Outer Width 80mm/85mm
- Depth 17mm
- ERD 541mm (not including nipple head dimension)
- Rim Weight 500+/-25g
- Profile Symmetric (0mm)
- Drilling Offset 10mm
- Max Cyclist Weight 120kg/ 265lbs
- Spoke Hole Angle ±9°
- Spoke Tension 105~120kgf front disc side and rear drive side
- Max Tire pressure 25psi/ 1.7bar
- Recommended Tire Width 4.3" ~ 5.0"
HUBS
We keep in stock the most popular axle sizes and colors of some well-liked hub models. If you want a special order, feel free to contact us (sales@lightbicycle.com).
- Model Hope Pro 4 Fatsno, DT SWISS 350 Big Ride
- Front Axle Size 15 / 150mm
- Rear Axle Size 12 / 197mm
- Driver Body Shimano MTB 10/11S, Sram XD, Shimano Micro Spline
- Hole 32H
OTHER PARTS
Leave a note at checkout or contact us if you want spare spokes or nipples.
- Spokes Sapim CX Ray, Sapim Race
- Nipples Aluminium Black, Aluminium Red, Brass Black
TECH

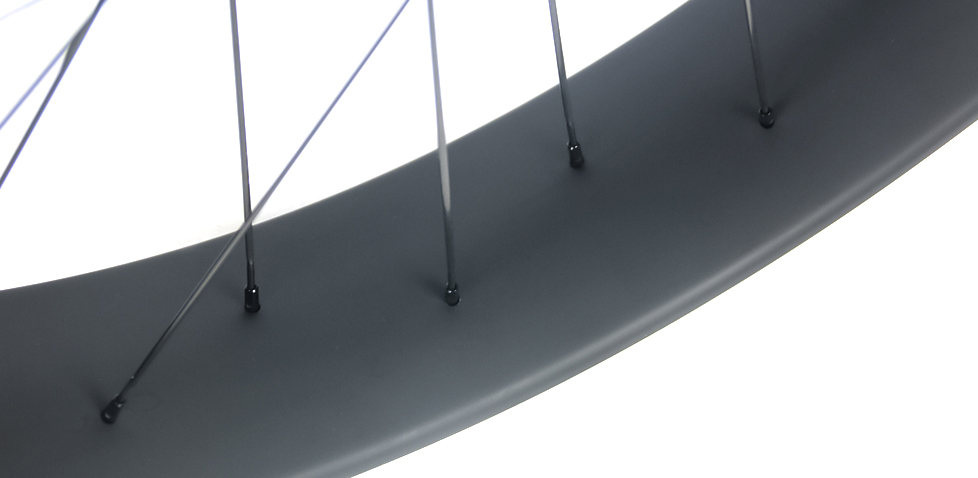

Is it possible to get fatter and lose weight at the same time? Thanks to a lightweight single wall design, the FS680 rims save a pound of rotational weight compared to most alloy wheelsets, all while adding lateral stiffness. Weighing in at just 500g per rim, you’ll drop a significant amount of rotational weight from your fatbike without compromising strength or stiffness.

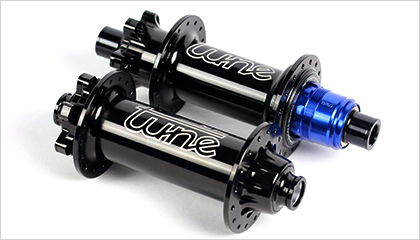

Example Wheelset Build: ONLY 1700G! Rims: FS680 Hubs: Tune Fat King/Fat Kong Spokes: Sapim CX-RAY Nipples: Sapim Polyax Secure Lock
Each wheel from Light Bicycle is built using the best industry practices by professional builders, ensuring your investment stands the test of time.
Tech Notes: 1. Bladed spokes or Sapim D-Light's are recommended for the FS680 wheelset. DT Swiss Comp Race or Revolution spokes stretch out too easily and would cause a poor wheel build with a single wall rim. 2. Use nipples with a standard head or Sapim Hex nipples only. Nipples with a tall head will cause an issue with the tubeless tape. 3. DO NOT use tire levers to install a tire or to unseat a tire on FS680 rims. The wall thickness is quite thin just past where your tire sits, and you may damage this area by prying on it!
WARRANTY
For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.
For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.
Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.
WHAT IS IN THE BOX
Is it possible to get fatter and lose weight at the same time? Thanks to a lightweight single wall design, the FS680 rims save a pound of rotational weight compared to most alloy wheelsets, all while adding lateral stiffness. Weighing in at just 500g per rim, you’ll drop a significant amount of rotational weight from your fatbike without compromising strength or stiffness.
Example Wheelset Build: ONLY 1700G! Rims: FS680 Hubs: Tune Fat King/Fat Kong Spokes: Sapim CX-RAY Nipples: Sapim Polyax Secure Lock
Each wheel from Light Bicycle is built using the best industry practices by professional builders, ensuring your investment stands the test of time.
Tech Notes: 1. Bladed spokes or Sapim D-Light's are recommended for the FS680 wheelset. DT Swiss Comp Race or Revolution spokes stretch out too easily and would cause a poor wheel build with a single wall rim. 2. Use nipples with a standard head or Sapim Hex nipples only. Nipples with a tall head will cause an issue with the tubeless tape. 3. DO NOT use tire levers to install a tire or to unseat a tire on FS680 rims. The wall thickness is quite thin just past where your tire sits, and you may damage this area by prying on it!
Gallery

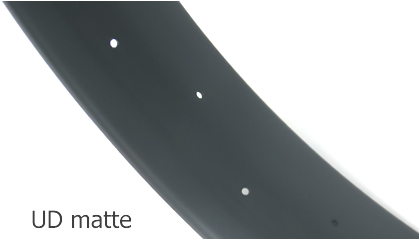

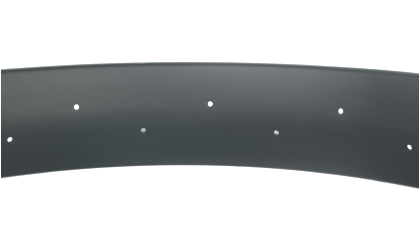

Light Bicycle : Rims: FS680 Matte UD 32H Centered Drilling (Staggered)
Hubs: Industry Nine Hydra Blue 15/150mm 12/197mm J-bend 6-bolt 32H Enduro Brand 690T Sram XD Alloy
Spokes: Sapim CX Ray Black J-bend
Nipples: Sapim Aluminium Blue Universal External
Scott : FS680 is the second set of wheels I've purchase from you - these are the photos of both sets (first set: RSNOW02).
UK(Britain)
Kim : I Received a pair of FS680 with Hope Fatsno hubs a few weeks ago to go on my Diamant fat bike , they are very true and nicely finished, have only done 2 rides so far, one a nice flowing single track and the other a rough as fire trail, so far so good, very happy
Australia
Light Bicycle : FS680 matte UD 32H centered 3 Years
FS680 matte UD 32H centered 3 Years
HUB-F Onyx 15 / 150mm J-bend 6-bolt Anodized-Orange 32H Ceramic
HUB-R Onyx 12 / 197mm Sram XD Steel J-bend 6-bolt Anodized-Orange 32H Sprag Clutch Ceramic
SPOKE Sapim CX Ray Black J-bend uncertain
NIPPLE Sapim Aluminium Orange Polyax External
