Build Your Drift RIM FAT680

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-20

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-20

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-20

Subtotal: USD +

Lead time:

ADD TO CART

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Spoke hole drilling This is a required option.

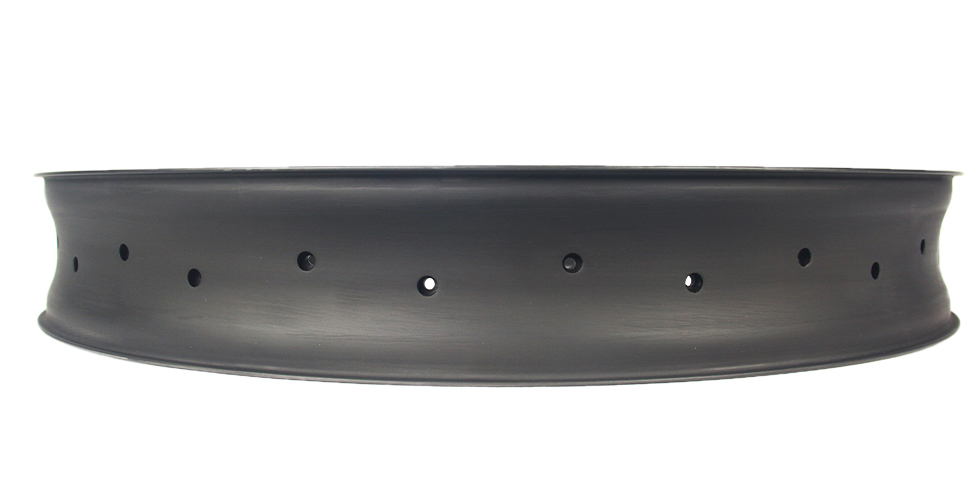

Centered (Staggered) drilling is the most popular.

Centered (Staggered)

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Recon Pro orders start shipping in October.

- + PCS

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples only. If you have a custom drilling requirements please contact us.

32H

Spoke hole drilling This is a required option.

Centered (Staggered) drilling is the most popular.

Centered (Staggered)

Finish This is a required option.

Matte

Weave This is a required option.

Decal This is a required option.

Blank (No decal)

Grey

Blue

Green

Magenta

Orange

Red

Yellow

Stealth (Grey)

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 580.00g+/-20

Subtotal: USD 196+

Piece Weight: 580.00g+/-20

Subtotal: USD 216+

PREVIOUS NEXT

RIM SPECS

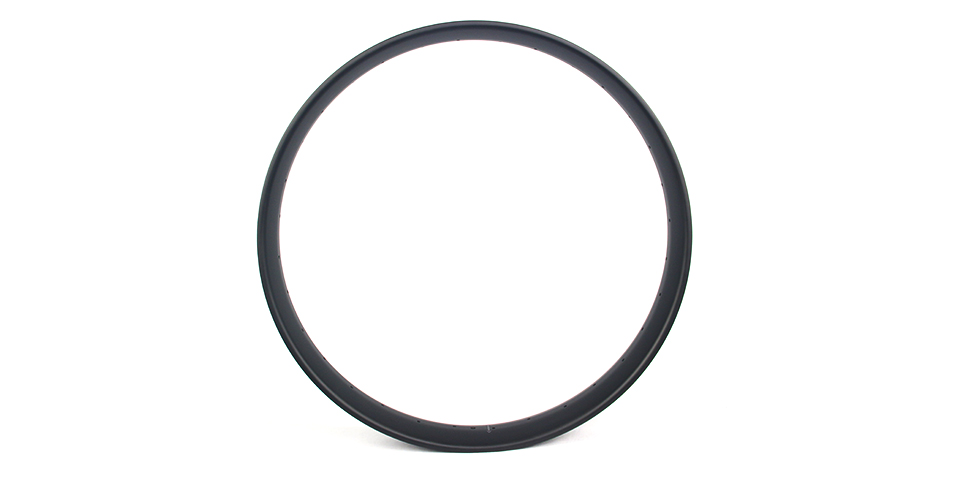

Model FAT680
Material Toray T700 & T800 Premium Carbon Fiber
Size 26" (ETRTO 559mm)
Series DRIFT
Intended Use Sand, Snow, Single Track
Bead Type Hookless
Tubeless Capable Yes
Inner/Outer Width 80mm/85mm
Depth 20mm
ERD 536mm (not including nipple head dimension)
Rim Weight 580+/-20g
Profile Symmetric (0mm)
Drilling Offset ±4mm
Max Cyclist Weight 120kg/ 265lbs
Spoke Hole Angle ±10°
Spoke Tension 105~120kgf front disc side and rear drive side
Max Tire Pressure 25psi/ 1.7bar
Recommended Tire Width 4.3" ~ 5.0"

Is it possible to get fatter and lose weight at the same time? Thanks to a lightweight carbon profile, the FAT680’s save a pound of rotational weight compared to most alloy wheelsets, all while adding lateral stiffness.

The 80mm inner width runs a standard 4.3” tire up to a full size 5.0”, making it perfect for all-conditions of fatbike riding. It’s wide enough to tackle deep snow and sand, but still nimble enough on a tight single track.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Model: FAT680
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 26" (ETRTO 559mm)
Series: DRIFT
Intended Use: Sand, Snow, Single Track
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 80mm/85mm
Depth: 20mm
ERD: 536mm (not including nipple head dimension)
Rim Weight: 580+/-20g
Profile: Symmetric (0mm)
Drilling Offset: ±4mm
Max Cyclist Weight: 120kg/ 265lbs
Spoke Hole Angle: ±10°
Spoke Tension: 105~120kgf front disc side and rear drive side
Max Tire Pressure: 25psi/ 1.7bar
Recommended Tire Width: 4.3" ~ 5.0"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Overview

Is it possible to get fatter and lose weight at the same time? Thanks to a lightweight carbon profile, the FAT680’s save a pound of rotational weight compared to most alloy wheelsets, all while adding lateral stiffness.

The 80mm inner width runs a standard 4.3” tire up to a full size 5.0”, making it perfect for all-conditions of fatbike riding. It’s wide enough to tackle deep snow and sand, but still nimble enough on a tight single track.
Specs
Rims

Model: FAT680

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 26" (ETRTO 559mm)

Series: DRIFT

Intended Use: Sand, Snow, Single Track

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 80mm/85mm

Depth: 20mm

ERD: 536mm (not including nipple head dimension)

Rim Weight: 580+/-20g

Profile: Symmetric (0mm)

Drilling Offset: ±4mm

Max Cyclist Weight: 120kg/ 265lbs

Spoke Hole Angle: ±10°

Spoke Tension: 105~120kgf front disc side and rear drive side

Max Tire Pressure: 25psi/ 1.7bar

Recommended Tire Width: 4.3" ~ 5.0"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

Light Bicycle : RIMS: FAT680 UD Matte 32H Centered (Staggered) HUB-F: Hope Pro 4 Fatsno Black 9 / 135 mm QR J-bend 6-bolt HUB-R: Hope Pro 4 Fatsno Black QR / 170mm J-bend 6-bolt 44T Shimano MTB 10/11S SPOKE: DT Swiss Competition Black NIPPLE: DT Swiss / Sapim Brass Black Universal External

Sonder-Vir-Fortis-on-Light-Bicycle-FAT680-carbon-wheels

Timo : FAT680, Sapim brass nipples, Sapim D-light spokes, DT Swiss 350 Big Ride hubs. Bike is Sonder Vir Fortis carbon. Kokkola, Finland

Finland

fat680-26er-85mm-wide-12k-weave-glossy-finish-fatbike-carbon-rim

Light Bicycle : Rims: FAT680 12K Glossy 32H Centered Drilling Heavy Duty Version Weights: 630g & 653g

Light Bicycle : Rims: FAT680 matte UD 32H centered drilling Weights: 629g & 646g

fat680-26er-fat-bike-orange-Hope-pro-4-fastno-orange-decal-carbon-wheelset

Light Bicycle : Rims: FAT680 UD Matte 32/32H Tubeless-Ready 26ER Hubs: Hope Pro 4 Fatsno 15/150mm J-bend 6-bolt orange Hope Pro 4 Fatsno 12/197mm Sram XD Alloy 44T orange Spokes: DT Swiss Competition Race Nipples: Sapim Aluminium Black Weight: 1975.44 grams

light-bicycle-fat680-fat-tire-bike-wheel-review

BrianC : FAT-680 Drift Rims built up on DT Swiss Big Ride Rear and stock Salsa Front hubs with Sapim CX-Ray spokes. 2.5lbs total weight savings with the switch (which also included an upgrade to an X01 Eagle cassette).

United States

fat680-26er-fatbike-carbon-clincher-wheelset

Light Bicycle : Rims: FAT680 ud matte 32/32H tubeless-ready standard weight Hubs: Hope Pro 4 Fatsno 15/150mm J-bend 6-bolt Black Hope Pro 4 Fatsno 12/197mm Shimano MTB 10/11S 44T Black Spokes: Sapim CX Ray Nipples: Sapim Brass Black Weight: 1999.56 grams

FAT680-26er-80mm-interal-width-matte-finish-ud-weave-fatbike-carbon-wheelset

Light Bicycle : Rims: FAT680 26er UD Matte 32/32H Hubs: DT SWISS 350 Big Ride J-bend 6-bolt 15 / 150mm 12 / 197mm Spokes: DT Swiss Competition Race Nipples: Aluminium Black Weight: 2018.5 grams

View More Reviews >>

COMMENTS

Joel 2021/01/25

I'm interested in the drift fat bike rims 26". I plan to run 4-inch Dillinger 4 120TPI studded tires. The Dillinger website recommends 64-94mm rims. Which drift rims do you recommend for this? The drift 65mm rims are slightly too small -- 60mm inside width. But, the 85mm rims are recommended for 4.3-5 inch tires, not 4 inch tires. Please let me know your recommendation. Thanks!

LightBicycle 2021/01/26

Hi Joel, I would suggest RSNOW03 (60mm internal, 65mm external width) to fit the 4.0“ tires of yours. The 85mm would be a bit too wide for the tire. Our rims are with hookless design, so it would be tighter than normal hook rims to hold the tires on the rim. If you are running wider tires than recommended, the installation and performance might not be the best profile. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Brett 2019/01/30

Hi guys I ride a trek Farly with 26” x 82mm rims ( Jackalopes by trek). The rims are asymmetrical (have an off set) they take an 3.8 tire. My bike back end won’t take any bigger tire than that. What can you recommend as I have written off my front rim but I’m looking to replace both. Regards Brett Hand

LightBicycle 2019/01/30

Thank you for your inquiry! For trek Jackalope rim, it is 81.5mm outer/75.2mm inner. We recommend our FAT680 for you. It is okay for 3.8" tires. Don't worry about that. FAT680: 85mm outer/80mm inner, 20mm deep, 580g+/-20, USD196 each Do you like fat bike rims only or complete wheelset(built with hubs &spokes)? Thanks, Lightbicycle

brett 2019/01/30

Rims only but with a single row of nipple holes.

LightBicycle 2019/01/30

Hi Brett, For rims with single row nipple holes, is it offset drilling that you like? Please find attached picture. If yes, we can manufacture for you. How many do you like? Thanks, Lightbicycle

Brett 2019/02/23

Hi I would like 2 rims with single row holes and offset drilling please.

LightBicycle 2019/02/23

Hi Brett, We just got your message. It is okay to order single row hole and offset drilling on fat bike rim. Please find attached picture of drilling pattern, for single row hole/offset drilling pattern, it is on the left on the picture. If it is what you like, you can click on below cart, and add to your cart, then proceed the purchase & payment. Please let us know if you have any other questions. https://www.lightbicycle.com/site/share-cart?id=100 Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Jorden 2018/09/04

2016 norco Ithaca 26" wheels 150 x15 front 197x 12 rear xd driver sram I currently have 80mm rims and run different types of 4" tires. I ride this all year round. Single track and as snow machine. Can you give a recommendation. Awaiting your response thanks Jorden

LightBicycle 2018/09/05

Hi Jorden, We have sent fat bike wheelset price with DT Swiss 350 big ride hubs and Hope Fatsno Hubs to your email. Please check and let us know if there is any questions. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Rob 2017/12/21

Currently riding a 2017 Rocky Mountain Blizzard -20*. Front Hub Rocky Mountain Sealed 135mm QR Rear Hub SUNringlé SRC 190mm QR Spokes 2.0 Stainless Rims Rocky Mountain Speedhole 95mm Which of your rims would be best for my current set up? Thanks Rob

LightBicycle 2017/12/23

Hello Rob, Thanks for your inquiry. We have 65mm/ 85mm/ 90mm wide 26er fat bike rims for you. May I know what the tire width you use normally? What is your weight? Do you ride aggressively? Is your previous rim with 95mm width? Then we will do some recommendations and quote accordingly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Marko 2017/02/06

Hi i have the Kona Wozo 2017, the rimms i have are the 80mm Sun Ringle MuleFut. scwalbe jumbo jim tires 26x4,8" front and 26x4,0" rear. FRONT HUB Joytech 150x15mm REAR HUB Joytech 177x12mm Have i got the right rimms selected? se below RSNOW04 36H Centred Matte UD NO decal. BR / Marko

LightBicycle 2017/02/07

Hello Marko, Thanks for your inquiry. According to info, our 85mm wide 26er fat bike rim is suitable for your riding. Are your both hubs are 36H? Because it takes around one month for 36H rims manufacturing. Or UD matte 32H center drilling rim line of rim is inventoried so we can ship quickly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 5 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Drift RIM FAT680

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
