Build Your Drift RIM RSNOW05

All wheels are 100% customizable at Light Bicycle. If your preferred specs are not listed, feel free to contact us (sales@lightbicycle.com) with your special requirements described.

Buy wheelset

Global Shop

NA Shop

EU Shop

AU Shop

Ships worldwide. See what's on sale>>

Drain Hole This is a required option.

With Drain Holes

Center Channel Hole This is a required option.

No Access Holes

Version This is a required option.

Front Flyweight / Rear Standard

Weave This is a required option.

Braided UD

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h

Paintless, UD, blank (no decal), 28h, with access holes

Standard, paintless, hook, blank (no decal), 24h, with drain holes, without access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12/100mm (F) & 12/142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

DT Swiss 350 straightpull centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18t ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

2 valves & 1 spare 18t ratchet

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD +

Lead time: typically ships in 2 days

ADD TO CART You missed some options.

We do not stock this item at the European warehouse. See what we stock currently.

You can order this product from our Global or North American warehouse.

Please fill out this form with your special requests if you want to customize it. We will get back to you in 24hrs via email.

Center Channel Hole This is a required option.

No Access Holes

DEFAULT SETTINGS

RIMS

Matte, UD, hook, blank (no decal), 24h, with drain holes

Paintless, UD, blank (no decal), 28h, with access holes

HUBS

DT Swiss 350 Straightpull Centerlock Shimano Road 11s 36t

12*100mm (F) & 12*142mm (R)

DT Swiss 350 Straightpull Centerlock Sram XD 18t

15/110mm (F) & 12/148mm (R) boost

SPOKES & NIPPLES

Sapim CX Sprint-rear drive side / CX Ray-other sides

Sapim aluminum black external

Sapim CX Ray & Sapim aluminum black external

ACCESSORIES

2 valves & 1 spare 18T ratchet

2 valves & 2 adapters (centerlock to 6-bolt)

Note: the wheelset price includes the warehouse transfer cost ($80).

Piece Weight: g+/-

Subtotal: USD + (discount price)

Lead time: typically ships in 3 business days

ADD TO CART You missed some options.

We do not stock this item at the Australian shop. See what's available.

You can order this product from our Global / NA shops.

Please fill out this form if you are looking for a custom wheelset.

We'll get back to you soon to study the customization requests via email.

Our apologies, we do not offer this item at the Global warehouse.

Please order from other warehouses. Feel free to contact us (sales@lightbicycle.com) if you want to customize. We’ll get back to you in 24hrs.

Our apologies, we do not stock this item at the North American warehouse. Check this link to see what items we stock, or send us an email to discuss.

Our Global warehouse can make any rim model and ship worldwide. Please fill out this form with your special requests if you want custom rims/wheelset. We will get back to you via email to discuss in 24hrs.

Shopping Style

Options Features	Quick Buy	Full Custom
Options Features	Inventory	Parts in stock (Assembled upon order)	Manufactured upon order
Customization	Least customizable	100% Customizable
Lead Time	≤ 3 days	4 weeks typically
Availability	Limited models	All models
Shipping	Worldwide	Worldwide

Quick Buy (In Stock)

Full Custom (Made to Order)

DEFAULT SETTINGS

Rims

Hook, matte, UD, with drain holes

Hook, matte, UD, with access holes, with drain holes

Standard, hook, paintless, UD, 5-year warranty, with access holes, with drain holes

Front Flyweight / Rear Standard, paintless, UD, 5-year warranty, no drain holes

Paintless, UD, 5-year warranty, no drain holes

Grooved graphene surface, hook, matte, UD, with access holes, with drain holes

Grooved graphene surface, hook, matte, UD, no access holes, with drain holes

Matte UD, 32H, Centered (Staggered)

Hubs

Hope Pro 4 Fatsno J-bend 6-bolt

15/150mm (F) & 12/197mm (R) Sram XD

Straightpull centerlock black 24H

12/100mm & 12/142mm

Shimano Road 11S

DT Swiss straightpull / Bitex j-bend, centerlock, 28H

J-bend, DT Swiss 6-bolt / Bitex centerlock, 32H

15/110mm boost & 12/148mm boost Sram XD

DT Swiss straightpull / Bitex j-bend, black, 20H front / 24H rear

100mm QR & 130mm QR Shimano Road 11S

Spokes

Sapim CX Ray black

Sapim D-Light

Accessories

No decals/valves/tape

No decals/valves/tape/pads

No decals/valves

Piece Weight: g+/-

Subtotal: USD +

Lead time:

ADD TO CART

Hole Count This is a required option.

Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please e-mail us and we'll send you a purchasing link.

16H

18H

20H

24H

28H

32H

36H

Spoke hole drilling This is a required option.

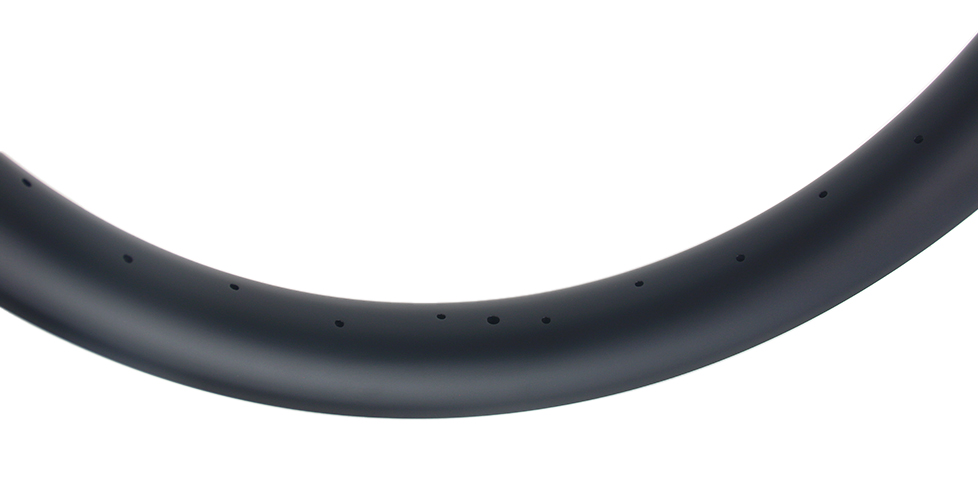

Centered (Staggered) drilling is the most popular.

Centered (Staggered)

Finish This is a required option.

Matte is slightly lighter and a more subtle finish (most popular). Glossy has a shine to it.

Full Custom: This option (if provided here to choose) offers custom finish such as Satin/Raw etc at no extra charge but subject to rim models with 3-5 days LONGER on manufacture. And custom color painting is also available with added 15g/rim and extra $20USD/rim as a start. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

Glossy

Matte

Weave This is a required option.

The layup schedule is predetermined for each model, but you can choose the outer layer for cosmetic appearence.

The rim strength & weight is virtually identical.

Matte UD is the most popular and has a subtle look.

The futuristic Hexa-Comb and Braided UD are smooth and looks great on deep rims.
More info about Weave >>

Full Custom: This option (if provided here to choose) offers custom weaves such as 3k twill vertical/ horizontal/ Braided UD etc with extra charge of $15USD/rim as a start but subject to rim models with 3~5 days LONGER on manufacture. If you select this option and LEAVE YOUR TAILORED REQUIREMENT IN THE NOTES AT CHECKOUT, we will reach out to you once the order is placed.

12K

Decal This is a required option.

The new graphics are included and available in 7 colors. The decals are now easily replaceable so you can keep your rims looking fresh.

Blank (No decal)

Stealth (Grey)

Blue

Green

Magenta

Orange

Red

Yellow

Valve Stem This is a required option.

We use a lightweight black alloy anodized valves with an oversized concave collar for easy gripping. A rubber o-ring goes in between the rim and the collar to help seal the rim and match the contour of the rim profile. The valve core is removable so you can add sealant without removing your tire.
Link to tubeless valve instructions

None

Add Valve Stem USD +7 each

Recon Pro orders start shipping in October.

- + PCS

Hole Count This is a required option.

ROAD Product
Road rim brake: Stocked in 20h and 24h
Road disc: Stocked in 24h and 28h

MTB Product
MTB rims: Stocked in 32h. Only XC Flyweight rims are stocked in 28h as well as 32h
Please note that our valves are drilled for presta and spoke holes are made for external nipples by default. If you have a custom drilling requirements please contact us.

32H

Spoke hole drilling This is a required option.

Centered (Staggered) drilling is the most popular.

Centered (Staggered)

Finish This is a required option.

Matte

Weave This is a required option.

Decal This is a required option.

Blank (No decal)

Black

Blue

Green

Magenta

Orange

Red

Yellow

Stealth (Grey)

Recon Pro orders start shipping in October.

- + PCS

Piece Weight: 580.00g+/-20

Subtotal: USD 221+

Piece Weight: 580.00g+/-20

Subtotal: USD 241+

PREVIOUS NEXT

RIM SPECS

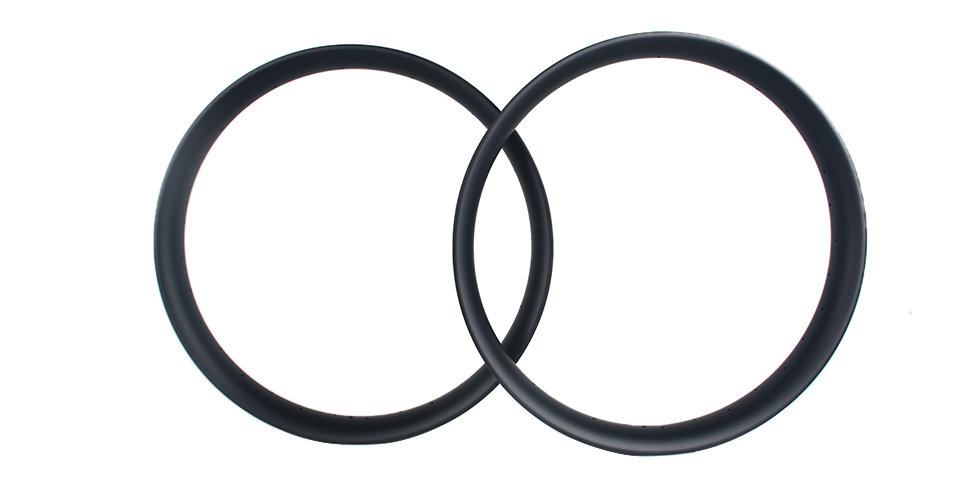

Model RSNOW05
Material Toray T700 & T800 Premium Carbon Fiber
Size 27.5"/650B (ETRTO 584mm)
Series DRIFT
Intended Use Sand, Snow, Single Track
Bead Type Hookless
Tubeless Capable Yes

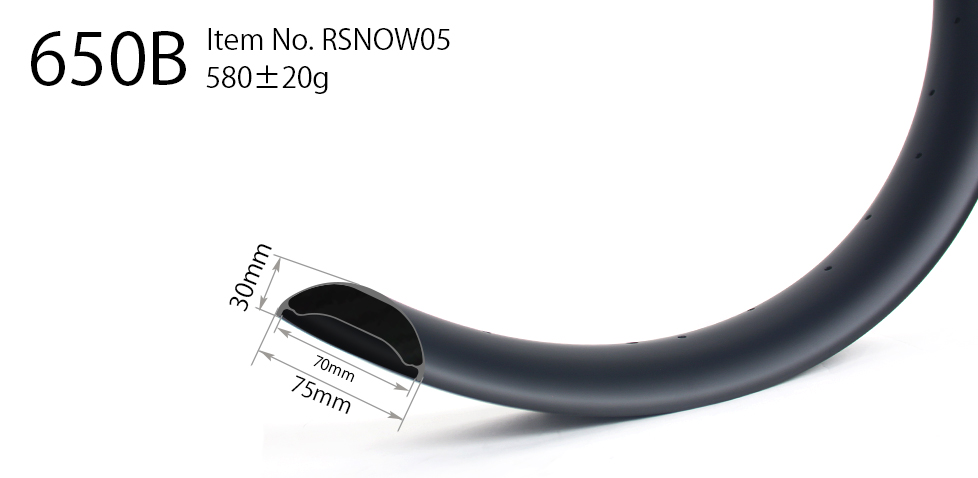

Inner/Outer Width 70mm/75mm
Depth 30mm
ERD 541mm (not including nipple head dimension)
Rim Weight 580+/-20g
Profile Symmetric (0mm)
Drilling Offset ±5mm
Max Cyclist Weight 120kg/ 265lbs
Spoke Hole Angle ±5°
Spoke Tension 105~120kgf front disc side and rear drive side
Max Tire Pressure 25psi/ 1.7bar
Recommended Tire Width 3.8" ~ 5.0"

With 27.5'' fatbikes getting more and more popular, our 75mm fat bike rim is the perfect option to remove weight. With a 70mm width, this rim pairs tires perfectly from a relatively narrow 3.8'' up to a 5.0''.

Coming in at only 580g per rim, this wide fat bike rim can easily remove the better part of a pound from the heavy alloy rims found on most fatbikes.

Rims

Our Pro series comes with a 5-year warranty (lifetime optional), while the non-pro with a 3-year warranty and crash replacement.)

Model: RSNOW05
Material: Toray T700 & T800 Premium Carbon Fiber
Size: 27.5"/650B (ETRTO 584mm)
Series: DRIFT
Intended Use: Sand, Snow, Single Track
Bead Type: Hookless
Tubeless Capable: Yes
Inner/Outer Width: 70mm/75mm
Depth: 30mm
ERD: 541mm (not including nipple head dimension)
Rim Weight: 580+/-20g
Profile: Symmetric (0mm)
Drilling Offset: ±5mm
Max Cyclist Weight: 120kg/ 265lbs
Spoke Hole Angle: ±5°
Spoke Tension: 105~120kgf front disc side and rear drive side
Max Tire Pressure: 25psi/ 1.7bar
Recommended Tire Width: 3.8" ~ 5.0"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter
Finish: Matte, Glossy, Satin, Colored Paint
Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb
Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services

Overview

With 27.5'' fatbikes getting more and more popular, our 75mm fat bike rim is the perfect option to remove weight. With a 70mm width, this rim pairs tires perfectly from a relatively narrow 3.8'' up to a 5.0''.

Coming in at only 580g per rim, this wide fat bike rim can easily remove the better part of a pound from the heavy alloy rims found on most fatbikes.
Specs
Rims

Model: RSNOW05

Material: Toray T700 & T800 Premium Carbon Fiber

Size: 27.5"/650B (ETRTO 584mm)

Series: DRIFT

Intended Use: Sand, Snow, Single Track

Bead Type: Hookless

Tubeless Capable: Yes

Inner/Outer Width: 70mm/75mm

Depth: 30mm

ERD: 541mm (not including nipple head dimension)

Rim Weight: 580+/-20g

Profile: Symmetric (0mm)

Drilling Offset: ±5mm

Max Cyclist Weight: 120kg/ 265lbs

Spoke Hole Angle: ±5°

Spoke Tension: 105~120kgf front disc side and rear drive side

Max Tire Pressure: 25psi/ 1.7bar

Recommended Tire Width: 3.8" ~ 5.0"

Full Custom

Get in touch with us (sales@lightbicycle.com) to discuss in detail your customization request.

Hole: Hole Count, Spacing, Pattern, Drilling Angle, Diameter

Finish: Matte, Glossy, Satin, Colored Paint

Weave: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Brake Track: UD, 3K, 3K Twill (Vertical/Horizontal), 12K, 12K Twill (Vertical/Horizontal), Braided UD, Hexa-Comb

Weight Style: Standard, Flyweight, Ultra-Light, Heavy Duty, HD+

Explore more Full Custom services
Tech

Learn More >>
Warranty

For Non-Pro Series Rims: From the date of purchase, 3-year Standard Warranty.

For Pro Series Rims: From the date of purchase, 5-year Pro Warranty as standard and an upgraded optional lifetime Premium Warranty with minimum charge.

Crash Replacement: It is applicable with the same period as the warranty time range that you purchased for the rims with 10% /25% discount for Non-Pro series /Pro series.

Learn More >>
In The Box

Please carefully inspect your package when unboxing and get in touch with us immediately if the package is damaged or anything is missing.

Together we can make this planet better. Join our sustainability program to reduce paper waste with the use of digital manuals.

Download user guides >>

Gallery

rocky-mountain-fat-tire-bike-riding-in-snow

Michael : Here are some pictures from the last couple of rides on my RSNOW05 with i9 Torches. One was yesterday. The other was two days before.

United States

Light Bicycle : RIMS: RSNOW05 UD Matte 32H Centered (Staggered) HUB-F: DT Swiss 350 Big Ride Black 15/150mm J-bend 6-bolt HUB-R: DT Swiss 350 Big Ride Black 12/197mm J-bend 6-bolt 36T Sram XD SPOKE: Sapim D-Light NIPPLE: Sapim Aluminum Black

Light-Bicycle-RSNOW05-275-fat-bike-wheels-with-Bontrager-Barbegazi-4.5

Daniel : Wheels built at last, seem great on first ride out

UK(Britain)

2021-Canyon-Dude-on-Light-Bicycle-RSNOW05-27.5-wheels

DARRELL : 2021 Canyon Dude with your fatty rims. Carbon Frame, Fork and bars. Huge game changer with these rims. On Snow or TerraFirma, these rims rule! Best addition to my 29lbs bike! 3rd set of rims and wheels from Lightbicycle. And I have another 40mil for my newest Ht build in route!

United States

Light-Bicycle-RSNOW05-27.5-Fat-Bike-Wheels-Review

Joonas : RSNOW05 Matte UD 32H Centered (Staggered) RSNOW05 Matte UD 32H Centered (Staggered) HUB-F 15 / 150mm 6-bolt 32H J-bend Black DT SWISS 350 Big Ride HUB-R Sram XD 54T 6-bolt J-bend Black DT SWISS 350 Big Ride 12 / 197mm 32H SPOKE Black J-bend Sapim D-Light NIPPLE Sapim Aluminium Black Bontrager Barbegazi 27.5 x 4.5 120TPI TLR

Finland

salsa-beargrease-fat-bike-on-light-bicycle-rsnow05-wheels

Steve : Salsa Beargrease. 27.5” I9 hubs. RSN0W05 rim. Sapim CX- ray spokes. Super light wheels and I love the Hydra hubs.

United States

27.5-rocky-mountain-fatbike-on-light-bicycle-rsnow05-carbon-wheels

Michael : Loving the wheels. Thanks again!

United States

rsnow05-center-drilling-fat-bike-carbon-wheel

Light Bicycle : Rims: RSNOW05 32H/32H UD Matte Tubeless-Ready Centered Drilling Hubs: Industry Nine Hydra 15/150mm 6-bolt Black Industry Nine Hydra 12/177mm 6-bolt Black 690T Shimano MTB 10/11S Alloy Spokes: DT Swiss Competition Race Black J-bend Nipples: Aluminium Black External Weight: 1984.52 grams

View More Reviews >>

COMMENTS

Steve 2021/05/19

I was wondering whether you have experience or evidence whether a tire like the Panaracer Fat B Nimble is working on the 75mm RSNOW05 rim? It would be rather nice to have the option to run lightweight tires during summer. I generally intend to use this as a trail orientated wheelset and tire combo and switch to burlier tires during winter. many thanks Steve

LightBicycle 2021/05/20

Hi Steve, What is your anaracer Fat B Nimble tire width? Then we can check whether it fits our 75mm wide 650B fat bike rim or not. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ethan 2021/03/31

Hello, Do you offer a heavy duty version of the RSNOW05? Also can i order it with no external holes?

LightBicycle 2021/04/01

Hi Ethan, Thanks for your inquiry! It is okay to order RSNOW05 heavy duty version 650B fat bike rim. It will be around 80g added for each rim, then 580+80=660g+/-15. Does it work for you? For rims" with no external holes", do you mean "no spoke access holes on rim bed"? If yes, we can manufacture accordingly for you. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Lee 2020/09/07

Hi 27.5 carbon rim. X 2. 75 mm wide for fat bike ....Shipping to L9Y 0W9. Ontario canada Where are the rims made.? Thanks

LightBicycle 2020/09/08

Hi Lee, All our rims including fat bike rims are manufactured in China. But you can order from our north American warehouse directly. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Juerg 2020/02/18

what's the price includig shipping to switzerland for: 75mm wide carbon 650B fat bike rim 27.5 inch hookless double wall tubeless compatible thanks and best redards Juerg

LightBicycle 2020/02/19

Hi Juerg, Thanks for your interested in this 650B fat bike rim. We just sent the quotation to your email. Please check. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Tim 2018/12/24

What is the best spoke hole drilling for 197x12 rear and 150x15 front?

LightBicycle 2018/12/26

Hi Tim, Centered drilling is the most popular option for fat bike wheels. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

MARC 2018/09/11

Can you tell me what length spokes I would need to build these on a set Hope Fatsno Hubs 15*150mm, 12*197mm

LightBicycle 2018/09/12

Hi Marc, Below is the spoke length for your ref. Wheels configurated with Hope Fasno hubs, 15*150mm/12*197mm, 32H, 3X lacing, DT competition race spokes. Front wheel: 265mm Rear wheel: 265mm for drive side, 267mm for the non-drive side. What can I do for you besides this? We also build the fat bike wheelset for our customers even though it's not available online yet. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Kevin 2018/08/08

I own a retail company in the USA that sells carbon wheels for BMX. I'm building a show bike and need 1 27.5 x 75mm rim, 3k, glossy, 36h, with my custom logo. Can I do this as sample? What is cost, how fast can I get. I have logo - 2 color black and 1837c skype is k.kocher. Please let me know. Would love a 29er that's 70-90mm wide, but don't think you have that.

LightBicycle 2018/08/09

Hi Kevin, We can do customized decals, can you provide the graphics and size to me so I can confirm the cost? Why do you need 29er fat bike rim? it looks like there is really less 29er fat bikes. Normally, they are 26er or 650B. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Michael 2017/11/18

Hello Would it be possible to find a pair of rims that weighs 560 grams each ? If I asked for the lightest rims Best regards Michael

LightBicycle 2017/11/18

Hi Michael, Sometimes we will get the rims around 560g. But it is hard to promise. The rim weight range +/-20g is hard to control normally. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Ben 2017/09/29

Hi, do you have any 27.5 65mm rims left?

LightBicycle 2017/10/08

Hi Ben, Thanks for your inquiry! Sorry that we don’t have 650b 65mm wide fat bike rim, only 75mm wide is available. We recommend our RSNOW05 to run with 4.3”~5.0”. Is that suitable for your tire? Thanks, Lightbicycle

ben 2017/10/30

Hello again, The only 27.5 fat tyres Ive come across are 3.8 only (Bontrager and Maxxis) which would make them unsuitable for the rim? Do you know of other tyre options for this rim? Thanks

LightBicycle 2017/10/31

Hello Ben, 3.8" should be okay. But We recommend our RSNOW05 rim to run 4.3"~5.0" tire. Bontrager has 27.5*4.5" tire. Pls find the link as below. https://www.trekbikes.com/us/en_US/equipment/cycling-components/bike-tires/bontrager-barbegazi-fat-bike-tire/p/12996/?colorCode=black Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Robert 2017/01/19

Hello, Do you have plans to make this rim in 26" I like the width and profile.

LightBicycle 2017/01/20

Hello Robert, Thanks for your inquiry. Currently, only 65mm or 85mm wide 26er fat bike rims are available, not 75mm wide 26er. Both rims width are close to 75mm width. Does that work for you? Rims profile attached for your reference. Thanks, Lightbicycle

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

See all 10 customer reviews>>

Get in touch

Feel free to leave a comment if you have any questions or suggestions on our products or other issues.

Please leave your name here.

E-mail is required for further contact.

Please enter a message.

Build Your Drift RIM RSNOW05

Overview

Specs

Tech

Warranty

In The Box

Rims

Full Custom

Overview

Specs

Rims

Full Custom

Tech

Warranty

In The Box

Gallery
